Nvidia MS-7374 - Manual (Page 52)

3-12
M S-7374 M ainboard
On-Chip ATA Devices

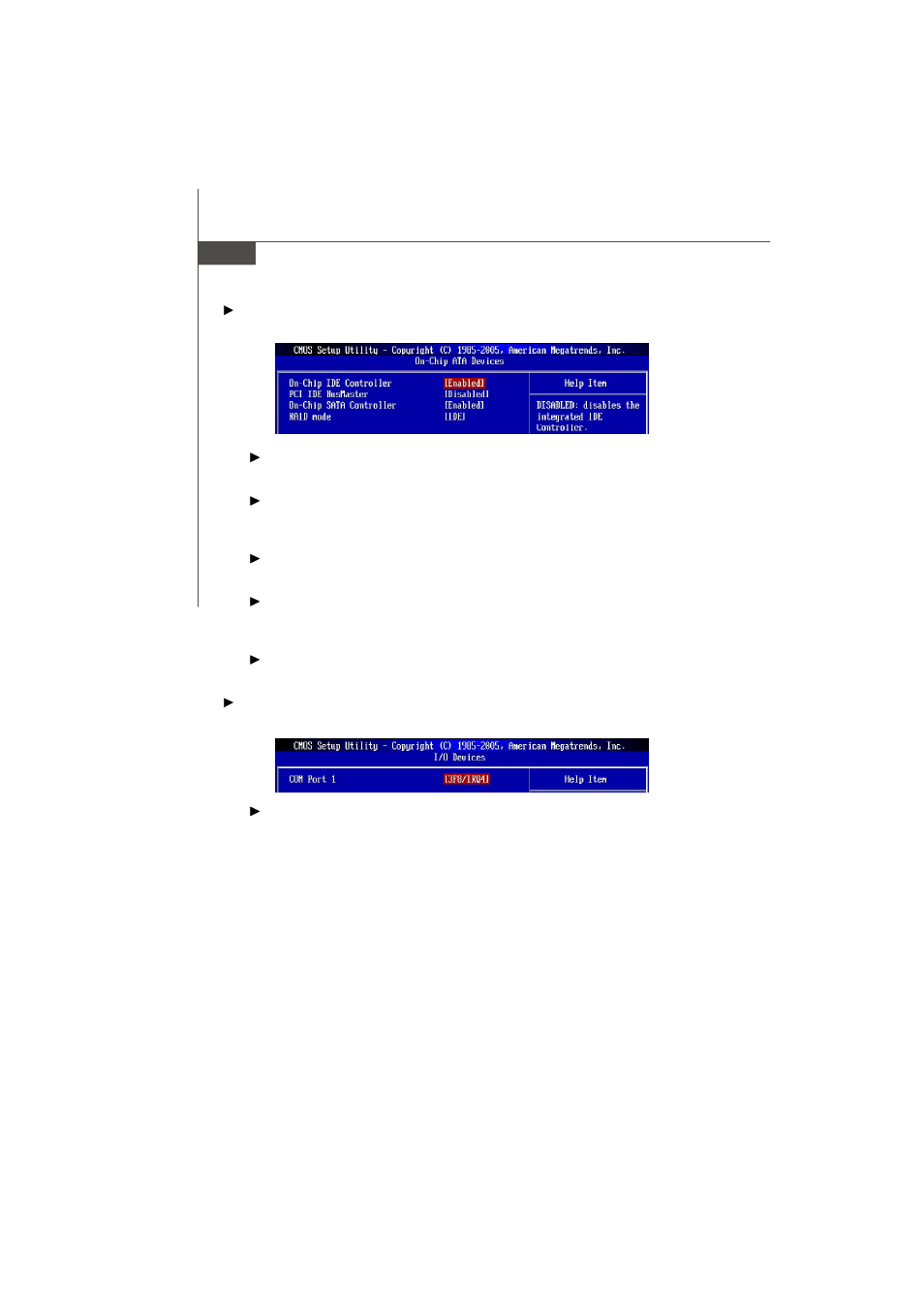

Press to enter the sub-menu and the following screen appears:
On-Chip IDE Controller
This item allows you to enable/ disable the IDE controller.
PCI IDE BusMaster
This item allows you to enable/ disable BIOS to used PCI busmastering for
reading/ writing to IDE drives.
On-Chip SATA Controller
This item allows you to enable/ disable the SATA controller.
RAID mode
Setting this option to [RAID] activates the following fields, and use the following
fields to enable RAID for SATA hard disks.
SATA 1/2/3/4/5/6
These items are used to enable RAID for SATA 1/2/3/4/5/6.
I/O Devices
Press to enter the sub-menu and the following screen appears:
COM Port 1
Select an address and corresponding interrupt for the first serial port.
