2-10
M S-7374 M ainboard

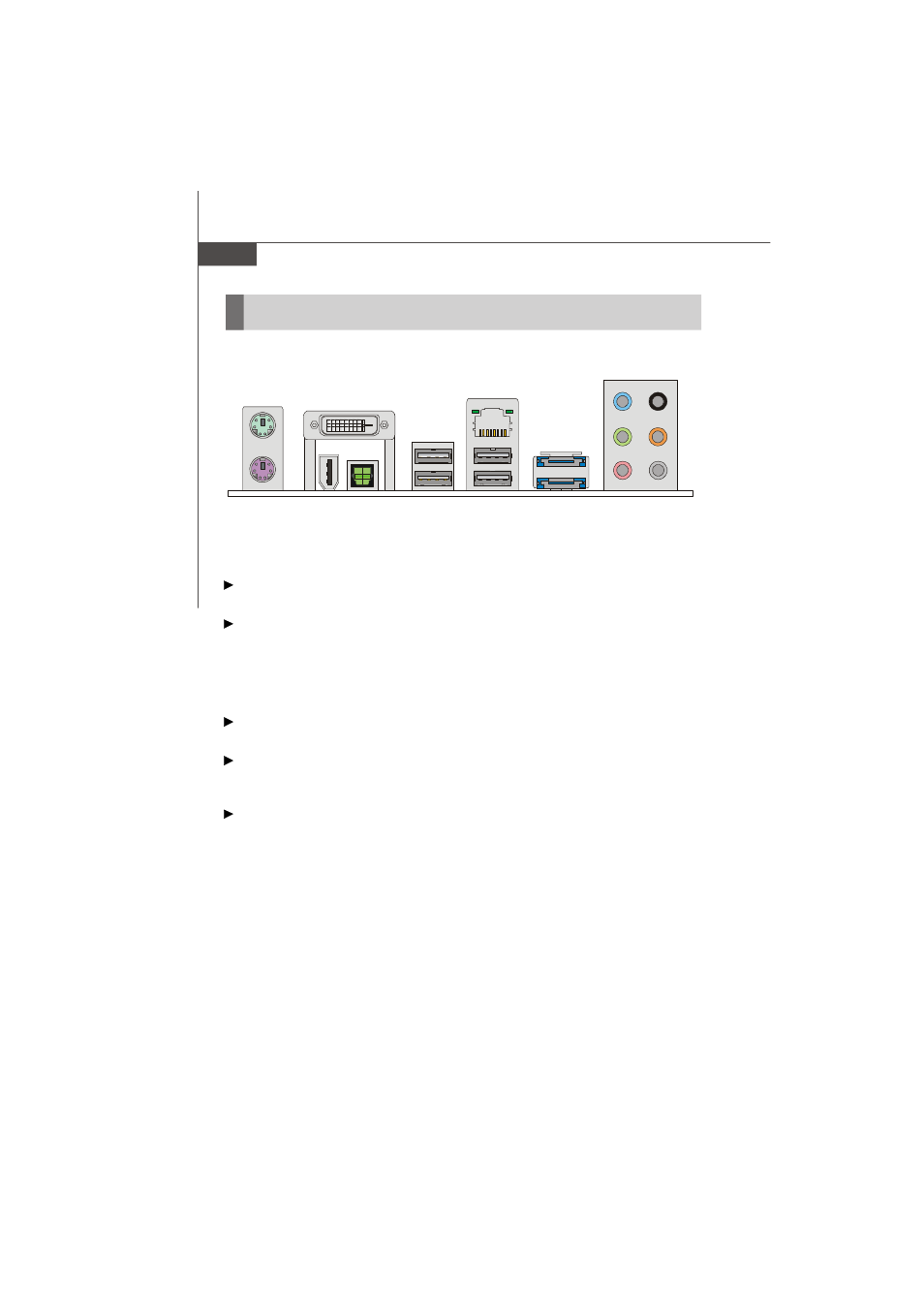

Back Panel
M ouse/Keyboard
The standard PS/2 ® mouse/keyboard DIN connector is for a PS/2 ® mouse/keyboard.
DVI-D Port
The DVI-D (Digital Visual Interface-Digital) connector allows you to connect a LCD
monitor. It provides a high-speed digital interconnection between the computer and
its display device. To connect an LCD monitor, simply plug your monitor cable into the
DVI-D connector, and make sure that the other end of the cable is properly connected
to your monitor (refer to your monitor manual for more information.)
1394 Port (optional)
The IEEE1394 port on the back panel provides connection to IEEE1394 devices.
Optical S/PDIF-Out
This SPDIF (Sony & Philips Digital Interconnect Format) connector is provided for
digital audio transmission to external speakers through an optical fiber cable.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.
Keyboard USB Port
Line-In
Mouse
1394
Port
(optional)
RS-Out
CS-Out
SS-Out
Line-Out
Mic
ESATA Port
Optical
S/PDIF-Out
LAN
USB Port
DVI-D Port
