NEC Versa P520 Disassembly Manual Page 20

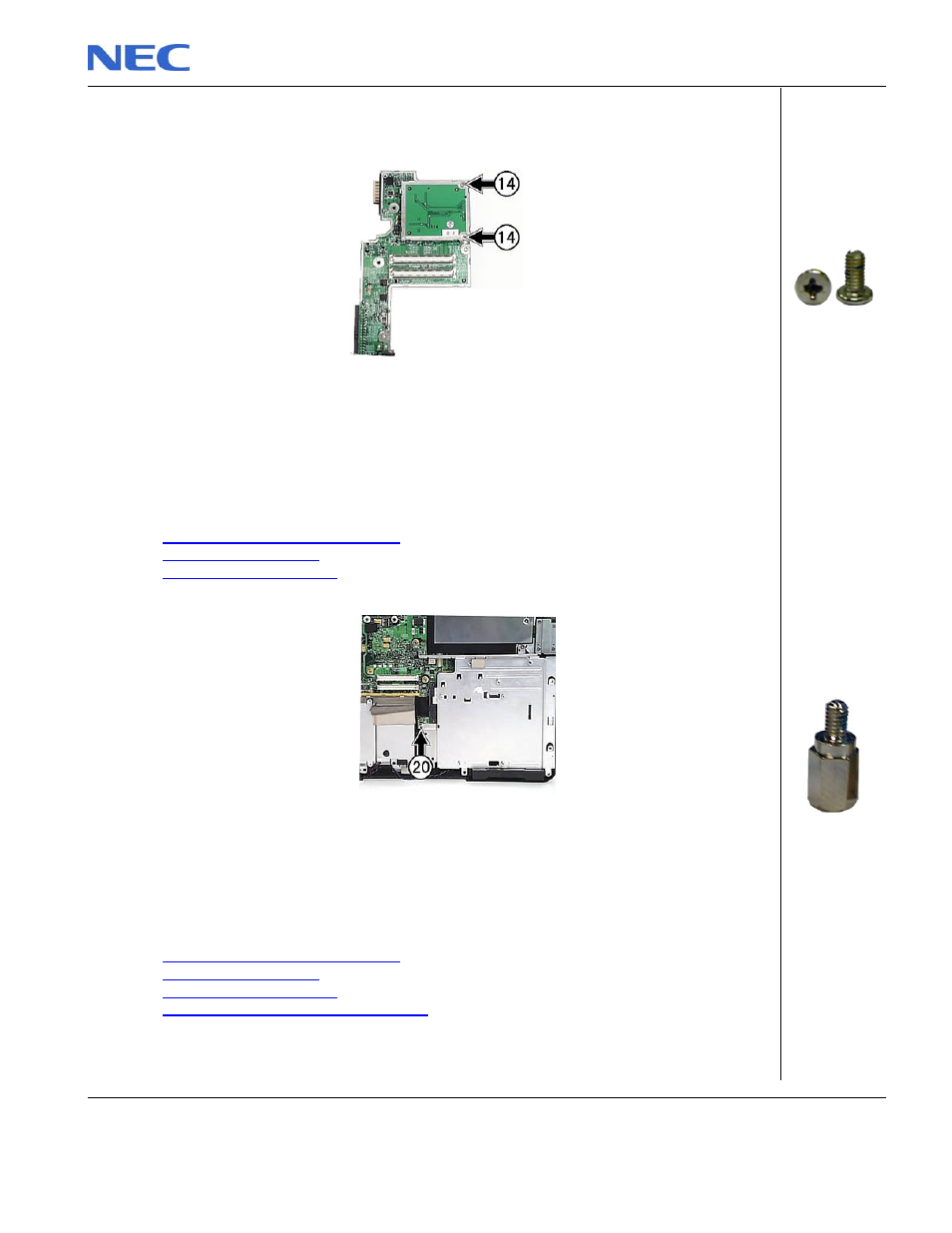

Removing the charger board
1. Unscrew the two screws (14) retaining the charger board on the audio board
.
Fig. 34: Removing the charger board
2. Disconnect the charger board from the audio board.
Removing the Versa Bay IV Frame Plate
1. Remove hard disk drive assembly.
2. Remove the top cover.
3. Remove the audio board.
4. Unscrew the screw (20) and remove the Versa Bay IV plate.
Fig. 35: Removing the Versa Bay IV frame plate
Removing the Multi Bay rails left and right
1. Remove hard disk drive assembly.
2. Remove the top cover.
3. Remove the audio board.
4. Remove the Versa Bay IV frame plate.
5. Unscrew the screws (20), (25), (10) and remove the two rails. See Fig 36.
(14)=M2.3x4
Hex Bolt
(20)=H=7 L=6
