NEC Versa P520 Disassembly Manual Page 11

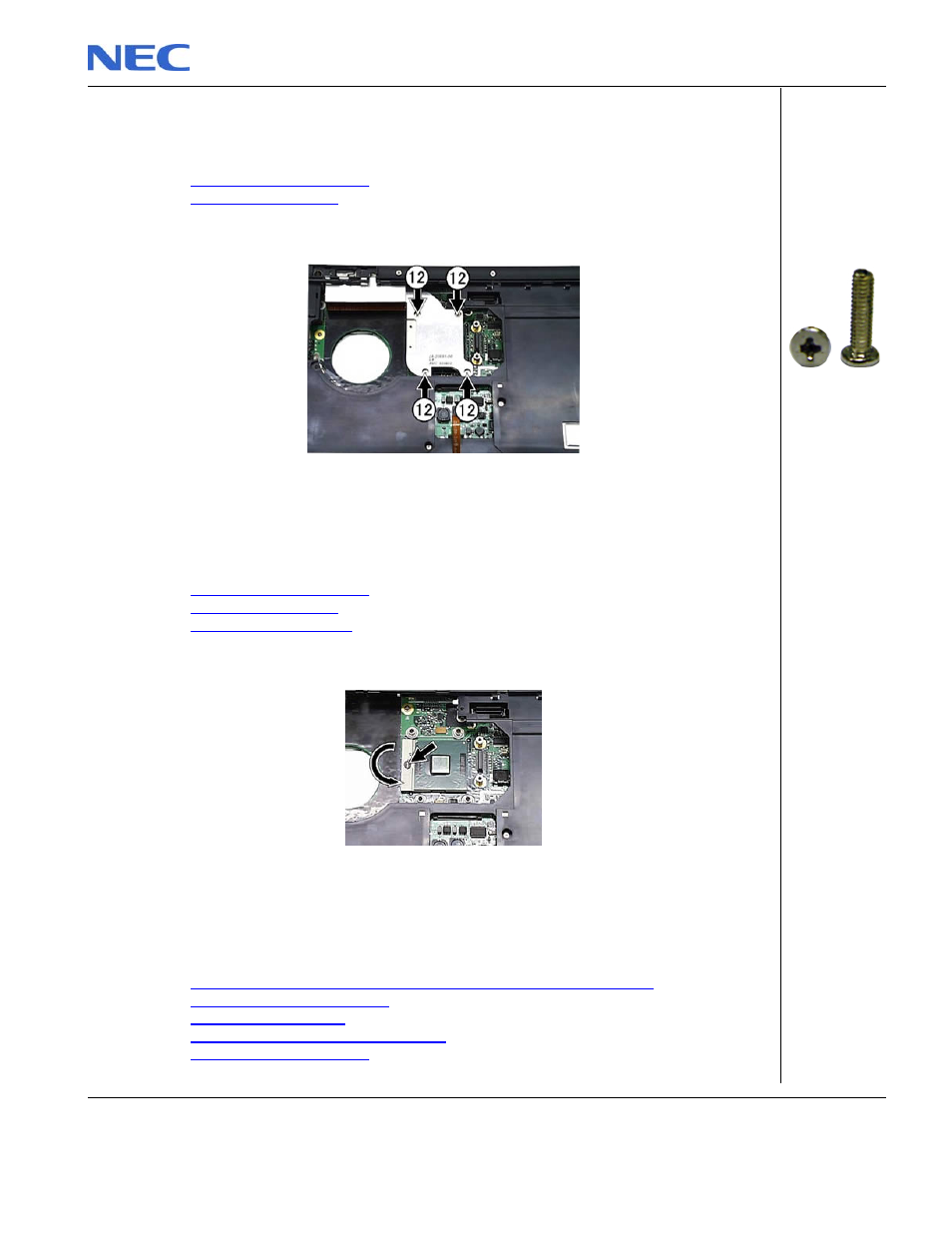

Removing the CPU Heat Sink
1. Remove the thermal plate .
2. Remove the CPU fan .
3. Unscrew the four screws (12) in sequence 1>2>3>4 and remove carefully the CPU
heat sink.
Fig. 13: Removing the CPU heat sink
Removing the CPU
1. Remove the thermal plate .
2. Remove the CPU fan .
3. Remove CPU heat sink .
4. Unlock the CPU with an appropriate screwdriver, turning it anti clockwise and extract
carefully the CPU.
Fig. 14: Removing the CPU
Removing the LCD Assembly
1. Disconnect the antenna wires from the mini PCI wireless LAN card.
2. Remove the keyboard cover.
3. Remove the Keyboard .
4. Remove the LED's and switch board.
5. Remove the thermal plate .
(12)=M2.3x9
