Removing the Thermal Plate
4. Remove the keyboard cover.
5. Remove the Keyboard .
6. Remove the LED's and switch board.
7. Remove the screws maintaining the Thermal Plate as shown in the picture below.

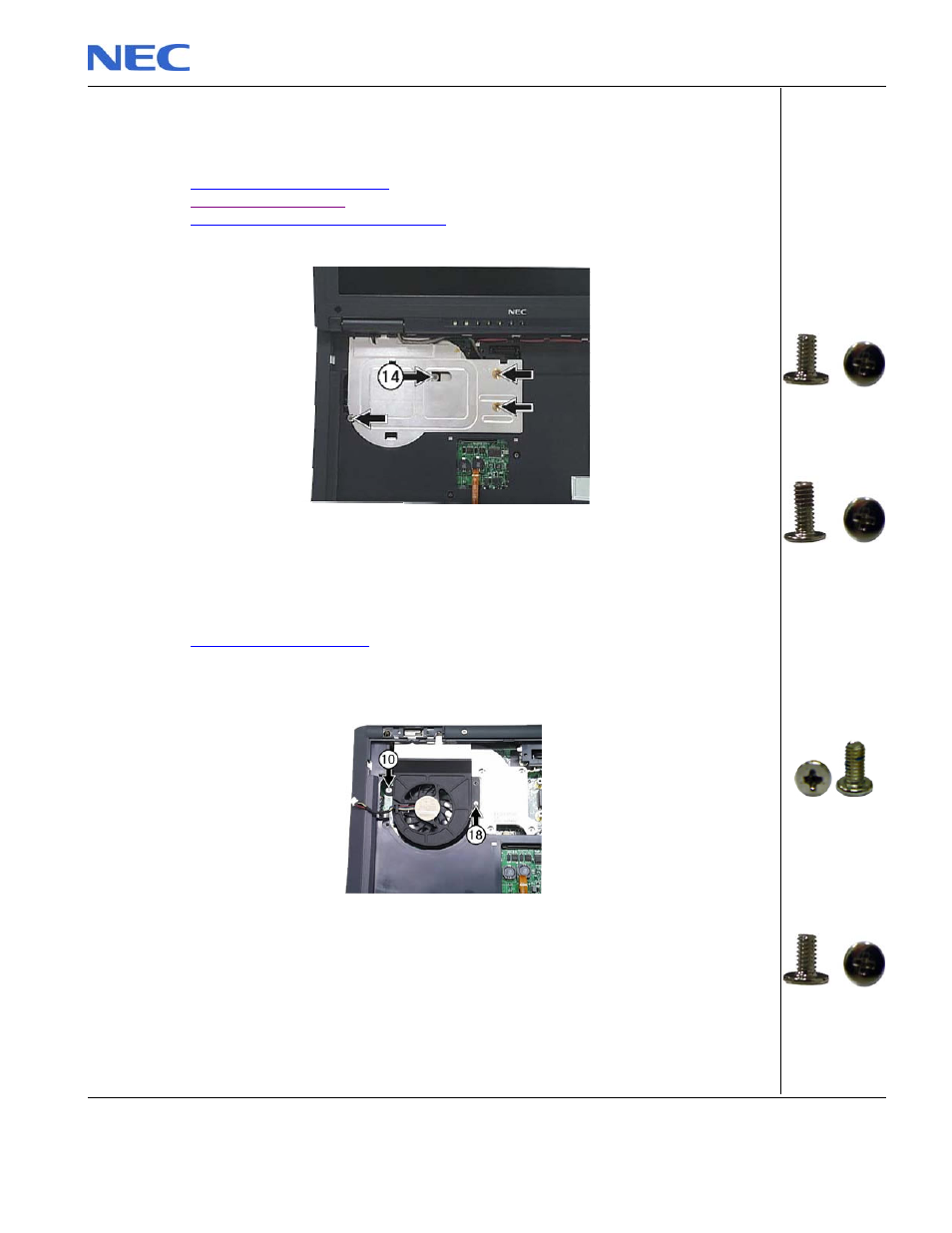

Fig. 11: Removing the thermal plate
Removing the CPU Fan
1. Remove the thermal plate .
2. Disconnect the connector fan.
3. Unscrew the screws (18) and (10).
4. Extract carefully the CPU fan.
Fig. 12: Removing the CPU fan
(14)=M2x4
(Arrows)
3xM2x6
(10)=M2.3x5
(18)=M2x4
