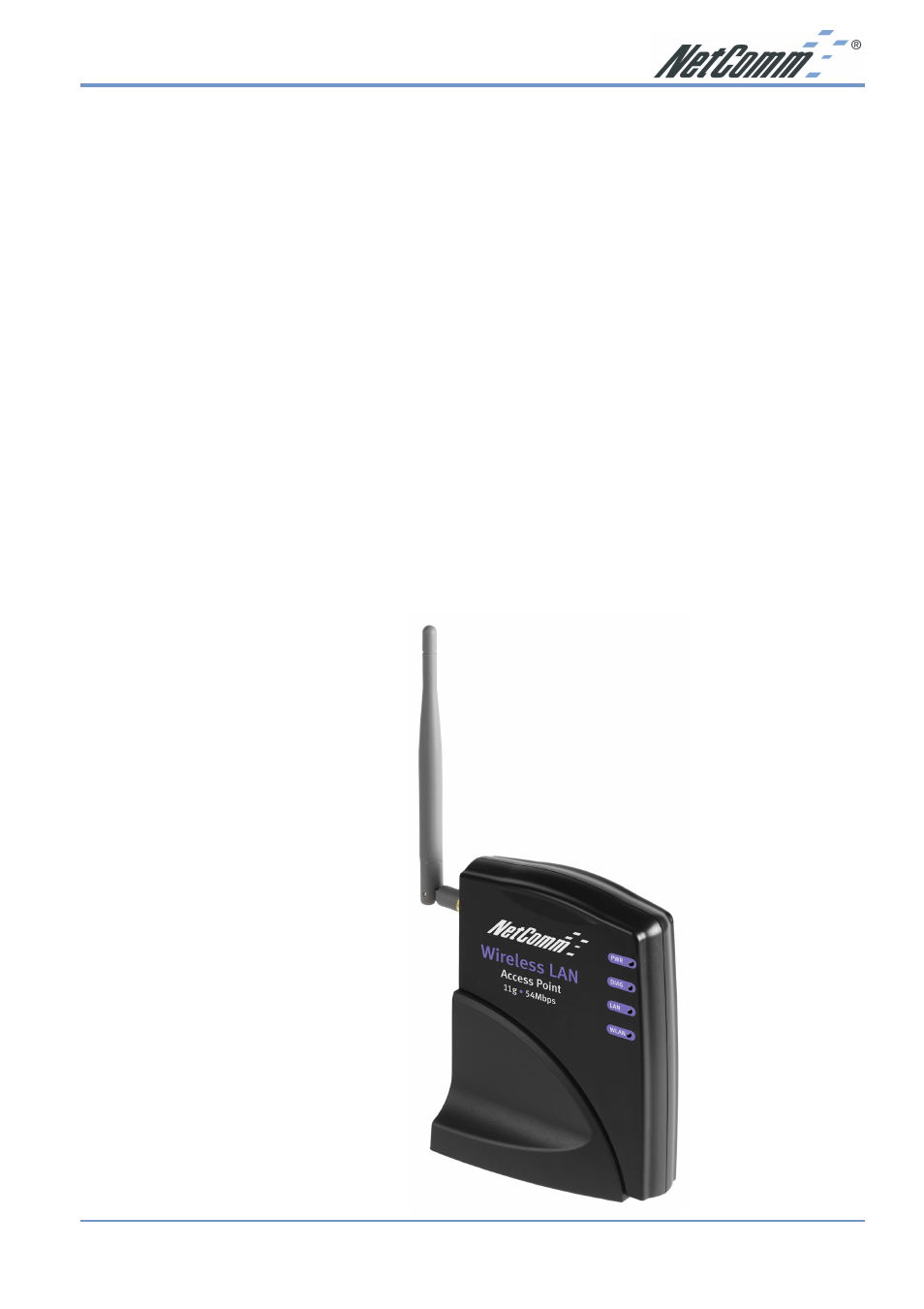

The Front Panel
LED Color Status Description
Power Green ON The AP power on
OFF The AP power off
DIAG Green ON 1) The AP is in normal operation mode
2) While in firmware upgrade process, it indicates
the AP is writing the firmware into Flash ROM
Blinking 1) The AP is in self-diagnostic mode.
2) While in firmware upgrade process, it indicates
the AP is waiting the Wireless Navigator sending
firmware image
OFF 1) The AP starts to boot up the system.
2) While in firmware upgrade process, it
indicates the firmware upgrade process is
finished.
LAN Green ON The LAN port has a successful physical link.
Blinking Sending or receiving data
OFF No connection, and neither data forwarding from
LAN ports.
WLAN Green ON Wireless port is connected with another wireless
device(s) successfully
OFF Wireless port is not connected to any device.
Blinking Sending or Receiving data via wireless
