26

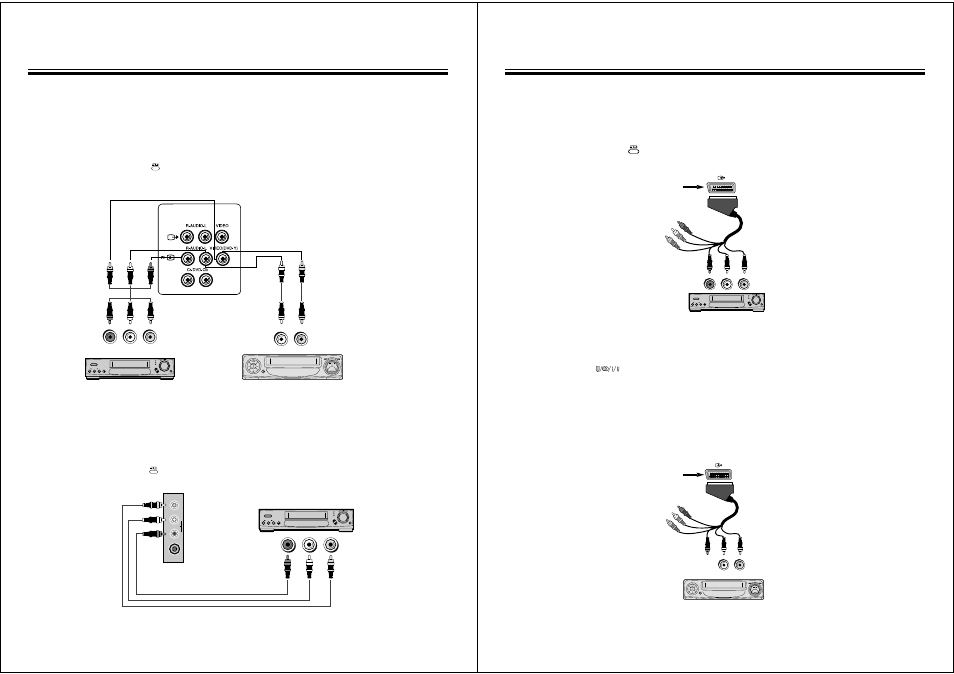

CONNECTING VIDEO
L
When connecting the VIDEO to the back of the TV
1. Prepare the connective plug for picture/sound.
2. Connect the VIDEO picture output terminal with the TV picture input terminal.
3. Connect the VIDEO sound output terminal with the TV sound input terminal.
4. Press the TV/VIDEO/DVD(
) button on the Remote control and select AV1.
M
Both VIDEO1 and VIDEO2 are OK.
L
Side Connector
M
The connection method is as same as back.
M
In front connector, it’ better to connect the materials which are unusually used such like camcorder,
game player, etc.
M
Press the TV/VIDEO/DVD(
) button on the Remote Control, and select AV3.
VIDEO
AUDIO
R
L
S-VIDEO
SOUND OUTPUT
PICTURE OUTPUT
PICTURE OUTPUT
HI-FI STEREO VIDEO
HI-FI STEREO VIDEO
M
In case of mono VIDEO, connect the VIDEO sound output
terminal with right or left sound input one of TV.
SOUND OUTPUT
PICTURE OUTPUT
MONO
VIDEO
SOUND OUTPUT
M
When connecting other equipment, please ensure you turn the main switch OFF to prevent any
damage to the equipment.
27
CONNECTING AT AV2(SCART)
L
Connecting to a HI-FI STEREO VIDEO(STEREO mode is defaulted)
1. Prepare the connective plug for picture/sound.
2. Connect the VIDEO input/output terminal with the VIDEO2(AV2) terminal.
3. Press the TV/VIDEO/DVD(
) button on the Remote control and select AV2.
4. Select the STEREO mode with the STEREO/BILINGUAL SELECT button.
(2)
L
Connecting to a MONO VIDEO(STEREO mode is defaulted)
1. Use a two wire RCA cable to make a connection with a MONO VIDEO.
2. Keep on pressing (
) button to change from STEREO, L-INPUT, R-INPUT.
If L-INPUT of the TV is connected to the audio out of VIDEO, the mode will be
M
STEREO : The sound will only come from one speaker.
M
L-INPUT : The sound will come from both speaker.
M
R-INPUT : The sound will not come at all.
3. If R-INPUT of the TV is connected to the audio out of VIDEO, the mode will be
M
STEREO : The sound will only come from one speaker.
M
L-INPUT : The sound will not come at all.
M
R-INPUT : The sound will come from both speaker.
SOUND OUTPUT
REAR SCART TERMINAL
PICTURE OUTPUT
HI-FI STEREO VIDEO
(2)
SOUND OUTPUT
PICTURE OUTPUT
MONO VIDEO
M
When connecting other equipment, please ensure you turn the main switch OFF to prevent any
damage to the equipment.
REAR SCART TERMINAL
