REMOVING THE RECEIVER COVER

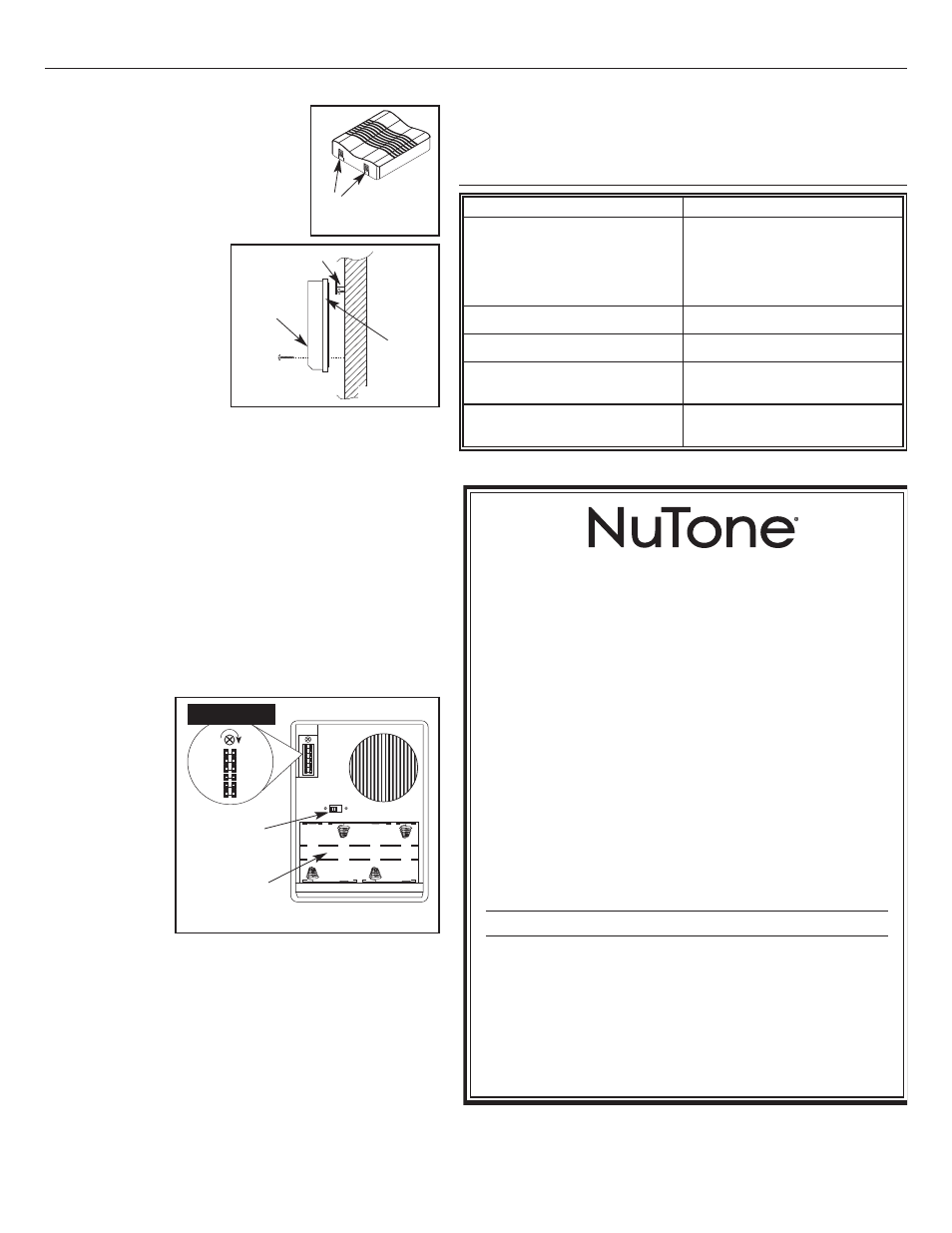

Refer to Figure 5.
1. Press the two locking tabs located
on the bottom of the Receiver cover,
and lift cover from base.
2. Set chime cover aside.
MOUNTING OF RECEIVER
Refer to Figure 6.
Receiver may be used as
a portable receiver or may
be wall mounted. Use the
following procedure when
mounting the Receiver to
the wall.
1. Select the desired
mounting location. This
location should be at least 1
foot away from metal
objects and within 100 feet
of the chime transmitter.
2. Drill one 3 ⁄
16
" hole at the desired mounting height.
3. Insert the plastic anchor into the 3 ⁄ 16 " hole.
4. Drive the upper screw into the plastic anchor until the head of
the screw extends approximately 1 ⁄
8
" from the mounting surface.
5. Place the keyhole slot in the receiver base over the screw head.
Slide the Receiver down to secure it.
6. Level the chime receiver on the mounting surface.
7. Mark the mounting surface with a pencil at the center
of the oval hole in the bottom of the receiver base.
8. Gently remove the chime base from the mounting surface
and drill one 3 ⁄
16
" hole at the previously marked area.
9. Insert the plastic anchor into the 3 ⁄ 16 " hole and remount
the chime receiver.
10. Insert the screw through the chime base into the plastic anchor.
Level chime base and tighten screw.
RECEIVER SECURITY CODING
Refer to Figure 7.
Changing the
Security code is not
necessary unless you
have changed the
security code
in the transmitter.
Both the transmitter
and receiver codes
must match.
1. Remove the
same jumpers in
the receiver as in
the transmitter.
INSTALLING BATTERIES IN RECEIVER
Refer to Figure 7.
Refer to Figure 7 for placement and polarity of batteries.
The NuTone wireless chime receiver requires four “D” size alkaline
batteries.
ADJUSTING THE RECEIVER VOLUME
Refer to Figure 7.
1. Slide power switch to the ON position.
2. Press Transmitter button. The red light
on the Transmitter will light.
3. Adjust volume control to desired sound level.
To increase volume, turn the control clockwise.
+
+
+
+
––
––
ON OFF
VOLUME
CONTROL
CODE
SETTING
SECURITY CODE
SETTING & VOLUME
6
5
4
3
2
1
FIGURE 5
CHIME
RECEIVER
POWER
SWITCH
4 – “D” SIZE
BATTERIES
1/8"
KEYHOLE
SLOT
“PUSH” TO OPEN
FIGURE 7
Product specifications subject to change without notice.
4820 Red Bank Road, Cincinnati, Ohio 45227
Printed in China, Rev. 9/06, Part No. 85766
TROUBLESHOOTING GUIDE
PROBLEM
1. Chime does not sound. Check batteries and polarity.
Make sure receiver or transmitter
is not located on metal surface.
Check receiver and transmitter security
code.
These codes must match.
2. Chime changes tone. Check batteries in receiver.
3. Chime looses volume. Check batteries in receiver.
4. Chime is activated by another
wireless device.
Change the security code in the transmitter
and receiver.
These codes must match.
5. When transmitter button is pressed,
the incorrect chime sound is heard.
Check the sound code jumpers
in the transmitter.
SOLUTION
FIGURE 6
ATTACHING THE RECEIVER COVER
Position chime cover over chime base. Align locking tabs on bottom
of cover to bottom of chime receiver base. Firmly press chime cover onto
chime base.
