NHT Evolution System - Manual (Page 17)

4.3 T5 and T6 Tower Assembly
Depending on which model you purchased, you
will now need the parts contained in either the
K5 or K6 assembly kit.

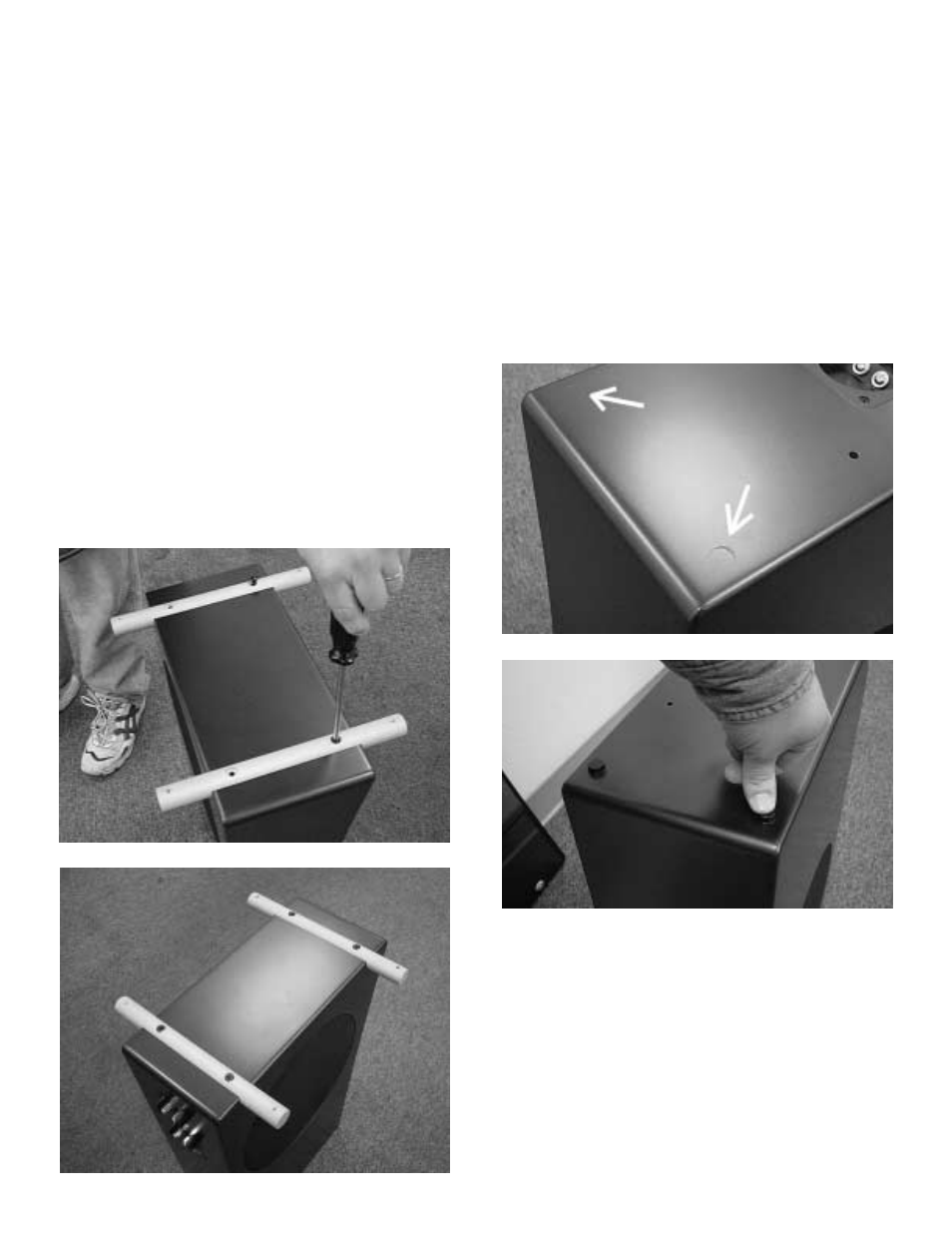

Step 1: Installing the Stabilizer Bars
The aluminum bars attach to the bottom of the
bass module to provide stability for the tower
system. Carefully turn the B5 or B6 bass mod-
ule upside down on a soft surface. There are
four threaded holes on the bottom of the cabi-
net. Gently place the stabilizer bars over the
threaded holes. Start the four large (1/4-20)
screws by hand. Once all the bolts are started,
tighten them with the supplied #3 Phillips screw-
driver.
Note: If you intend to use spikes with the stabi-
lizers, do not install them at this time. The tow-
ers are difficult to move once the spikes are in
place. Spike installation is covered in Step 9.
Step 2: Adhering the Rubber Feet
Once the stabilizers are mounted, carefully turn
the bass module upright. Peel the paper cover
off the back of the two round rubber feet and
attach them to the top front of the B5 or B6.
There are slight indentations on the cabinet to
help you position the rubber feet properly.
.
