NEC Versa M400/PB EasyNoteM5 M7 Disassembly Manual Page 10

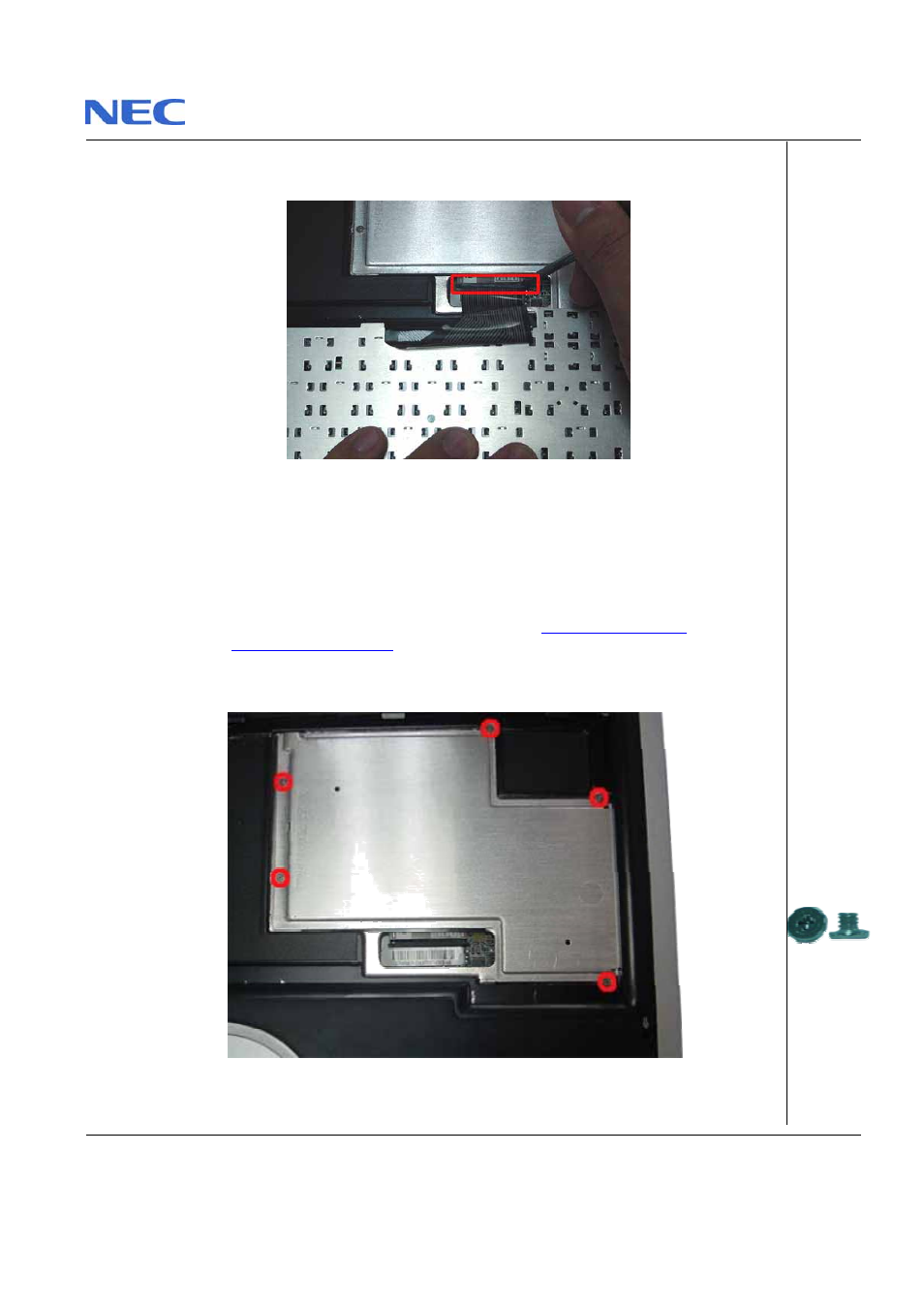

3. Lift up the keyboard and disconnect it from the system as shown in Fig. 10
Fig. 10 Removing the keyboard flat cable
Removing the Memory Module
To remove the Memory Module, first remove the Battery (see Removing the Battery ), remove the
Keyboard (see Removing the Keyboard ) then perform the following steps:
1. Release the screws retaining the memory module slot cover.
Fig. 11 Removing the screw retaining the memory module slot cover
M2x2.5 Silver
