Figure 2, Ort ds-3, Figure 3) – Nortel Networks 8672ATMM User Manual
Page 6
4

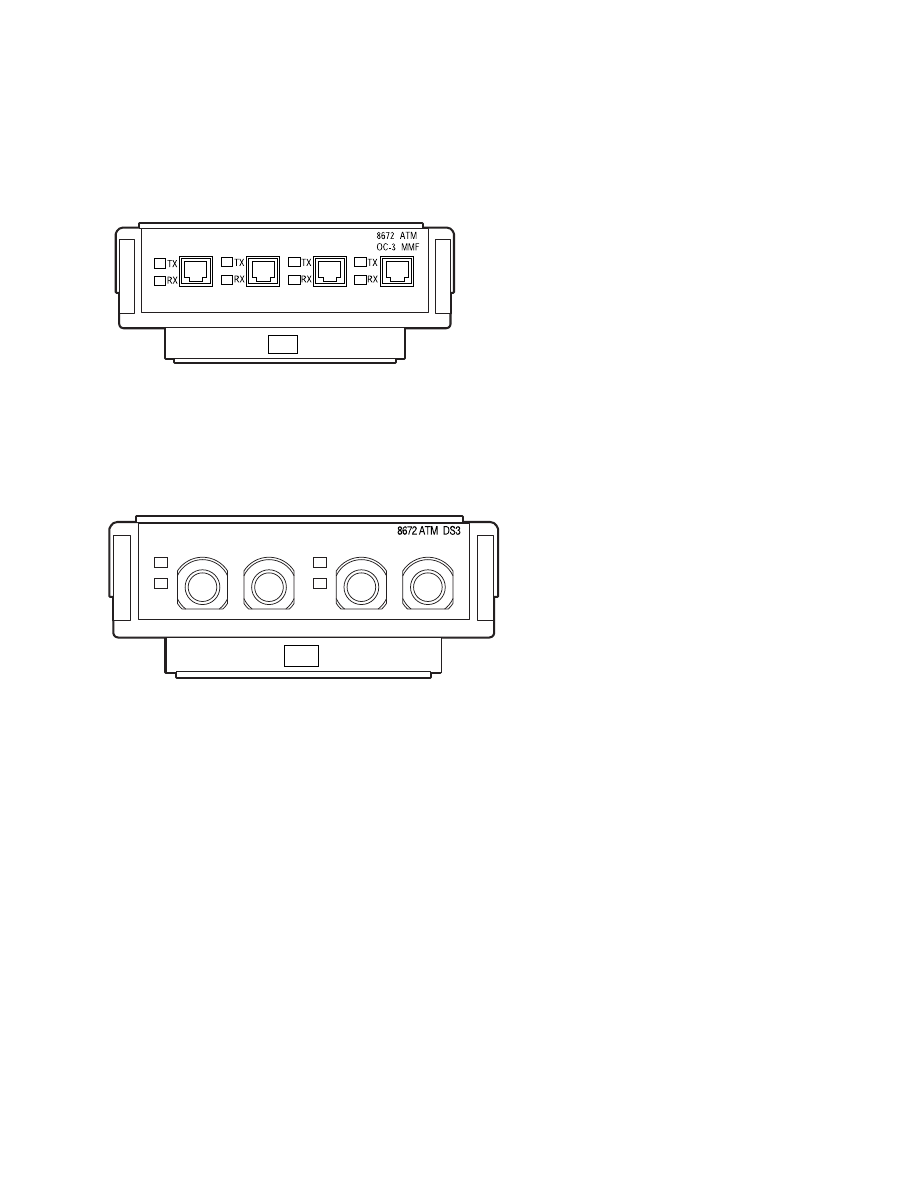

Figure 2 OC-3c/STM-1 MDA: 8672ATME and 8672ATMM
Modules
Figure 3 DS-3 MDA: 8672ATME and 8672ATMM Modules
Each MDA has ports for connection to an ATM network. You can
mix types of MDAs to achieve flexibility in connectivity types.
shows the available types of MDAs for the 8672ATM,
8672ATME, and 8672ATMM Modules.
9726EA
10530EB
TX
RX
TX
RX
TX
RX
TX
RX
