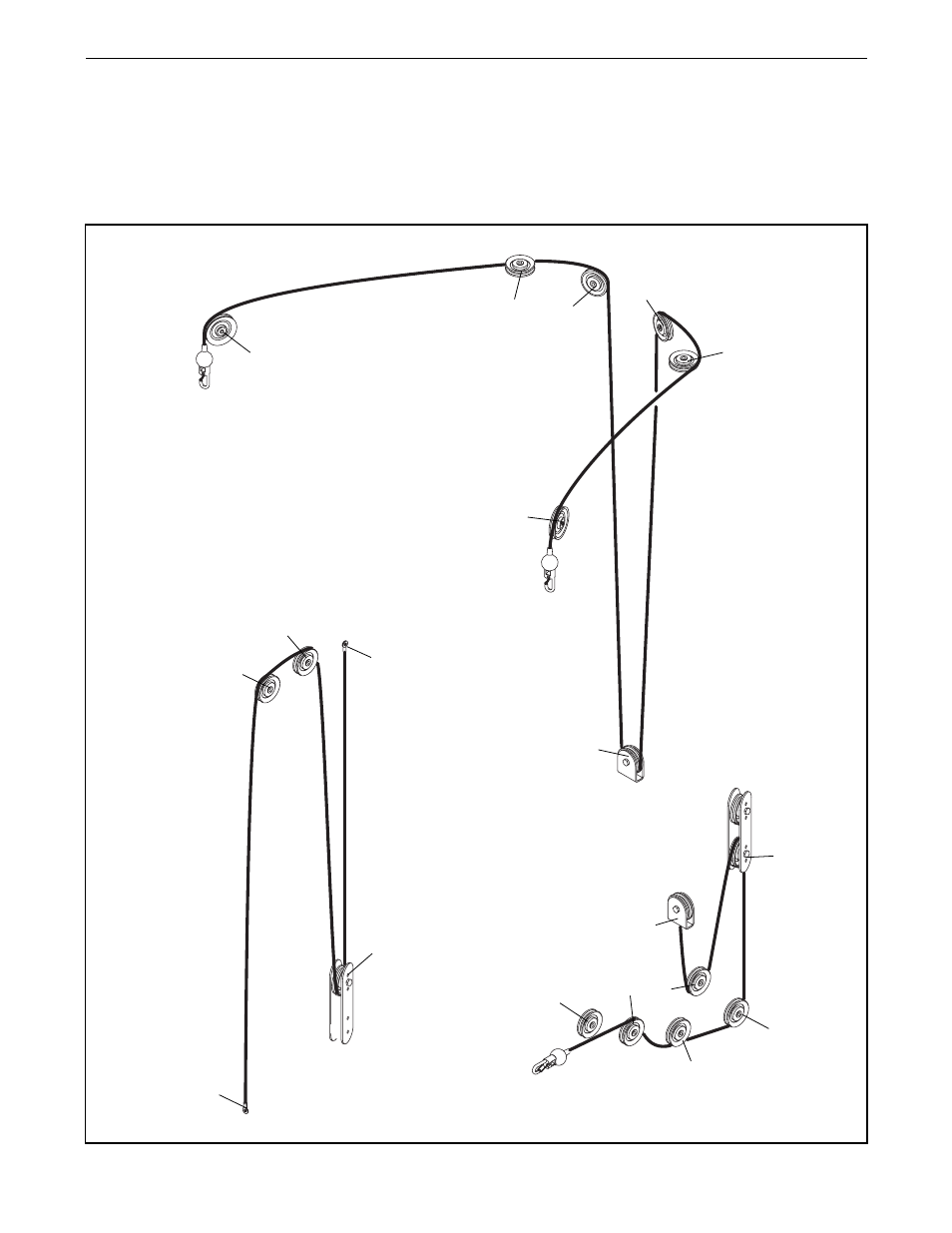

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Long Cable (43), the Short Cable (44), and the
Medium Cable (45). Use the diagram to make sure that the cables have been assembled correctly. If the cables
have not been correctly routed, the weight rack will not function properly and damage may occur. The numbers
show the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.
1
2
6
7
3
4
5
1
2
Long Cable (43)
Medium Cable (60)
Short Cable (44)
3
4
5
1
2
3
4
5
6
7
15
