NordicTrack NTB39020 - Manual (Page 10)

10

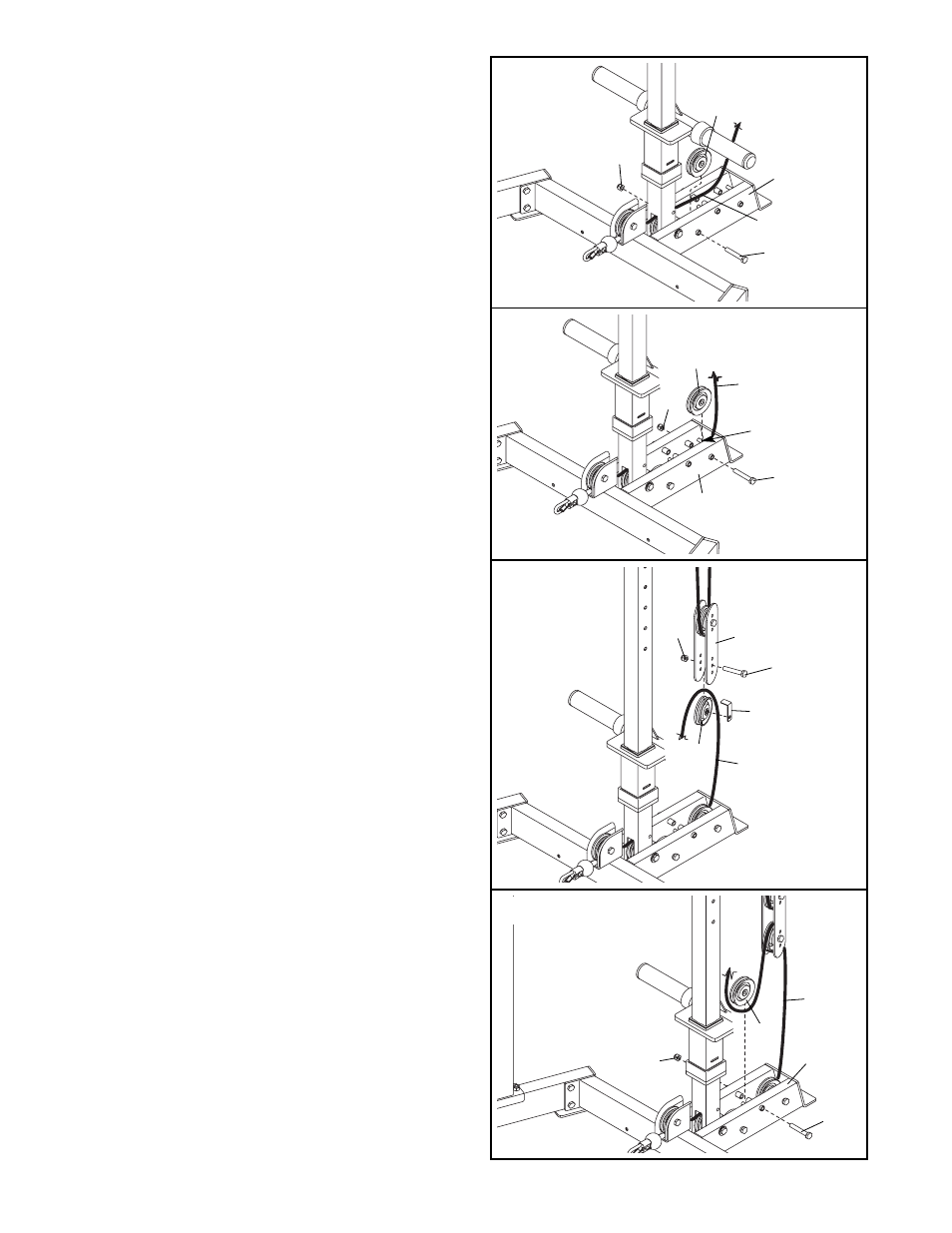

17. Wrap the Short Cable (44) under a 3 1/2” Pulley
(34). Attach the Pulley inside the Base Frame (1)
with an M10 x 165mm Button Head Bolt (5) and
an M10 Nylon Locknut (64). Make sure the
Cable is between the Pulley and the welded
rod inside the Base Frame.
18. Wrap the Short Cable (44) over a 3 1/2” Pulley
(34). Attach the Pulley and a Cable Trap (36)
between the second set of holes from the bottom
of the pair of Pulley Plates (33) with an M10 x
50mm Button Head Bolt (57) and an M10 Nylon
Locknut (64). Make sure the Cable Trap is ori-
ented to hold the Cable in the groove of the
Pulley.
16. Wrap the Short Cable (44) under a 3 1/2” Pulley
(34). Attach the Pulley inside the Base Frame (1)
with an M10 x 165mm Button Head Bolt (5) and
an M10 Nylon Locknut (64).
16
17
18
64
5
44
1
34
5
44
Welded
Rod
34
1
64
57
34
36
44
33 64
19. Wrap the Short Cable (44) under a 3 1/2” Pulley
(34). Attach the Pulley inside the Base Frame (1)
with an M10 x 165mm Button Head Bolt (5) and
an M10 Nylon Locknut (64).
19
44
34
64
5
1
