FINISHING

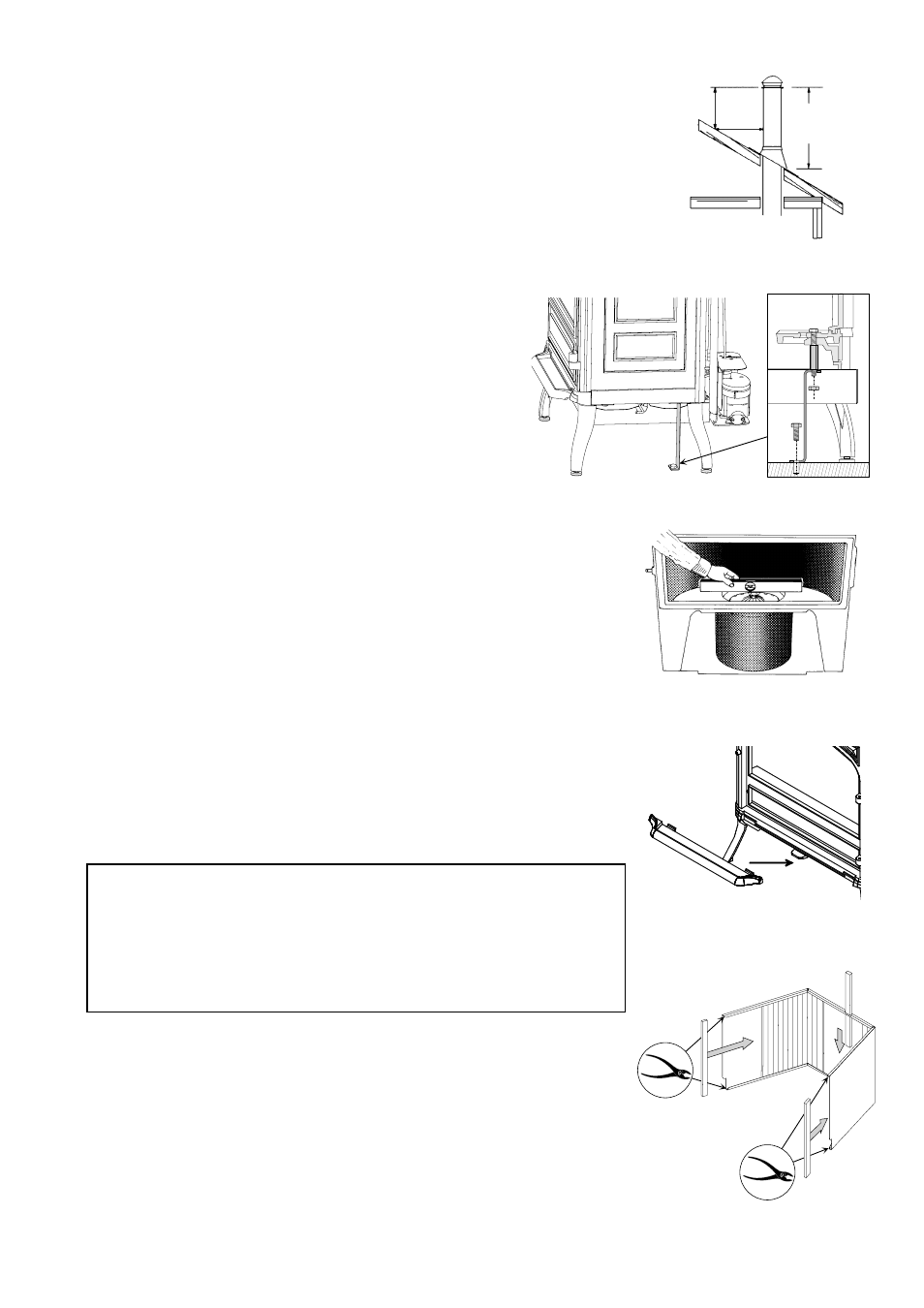

Mounting flue collar
The stove is supplied with a connection flue at rear.
Smoke exit on top (figure 12, page 8) :
- Remove the internal baffles on top (see page 11).
- Fix the sealing rope in the groove on the top (2) and fit the flue spigot (1), ensuring there is
a good seal.
- Fix the sealing rope in the groove on the rear (2) and fit the blanking plate (5) and the
clamp (4), ensuring there is a good seal.
- Replace the internal baffles (page 11).
- Fix the blanking plate on the rear heat shield (3) with the 4 screws
supplied.
Levelling the stove
Four adjusting bolts with caps are supplied and which have been
placed in the burner for packing purposes only. Fit the screws and
caps to the bottom of the stove legs (repere 6,figure 10, page 8).
Place the level on the burner ring and adjust the bolts until the burner
has reached a level position (figure 7). Secure the stove to the floor
with the bracket provided (figure 6).
Ash tray installation
Figure 8
To avoid damage to the ash tray during transport, it has been disconnected and stored
behind the main door of the oil stove. To reinstall the ash tray to the front of the oil
stove, tilt the tray at a 45 ° angle, center onto tab ‘A’ and lower into place.
Fitting the “visioflamme” (optional)
Figure 9
- Slide each glass piece so that it fits into the upper and lower channels of the
reflector.
- Use pliers to pinch the ends of the channels to prevent glass from falling out.
FUEL SUPPLY
The NAPOLEON cast iron oil burning stove is designed and fitted with a special
carburetor to use only a specific category of fuel oil. This fuel oil must be clean and
free of any dirt or traces of water. Impurities in the fuel oil can cause a reduced
efficiency level.
The fuel system of an oil burning stove can either be a gravity system or one
equipped with a fuel suction pump. The system selection depends on the location of
the fuel tank.
Document n° 1092-1 EN ~ 04/02/2002 7
Figure 5
3 FT.
min
2 FT.
min 10 FT.
Figure 6
Figure 7
A
Figure 8
Figure 9
The only fuel to be used with this heating appliance is FURNACE OIL NO. 1 OR
NO. 2.
DO NOT allow the oil tank to get empty. To do so may cause the stove to soot and
increase the risk of a chimney fire.
Never use gasoline, motor oil or any gasoline contaminated oil.The oil tank should
be located in such a manner to prevent exposure to direct sunlight or be close to
any source of intense heat.
