General information
Nominal heat
output
Oil consumption ** Chimney draft required
Weight
Flue outlet outside
diameter max speed min speed max speed min speed
34.100 BTU/hr .31 US gal/hr .066 US gal/hr .072" w.c.g .032" w.c.g 260 lbs 5 inches
10 kW 1.20 litre/h 1/4 litre/h 18 Pa 8 Pa 118 kg 120-125-127 mm
Connection to a L.VENT chimney
Nominal heat output Oil consumption at nominal speed Chimney draft
29 000 Btu/h (8.50 kW) 0.26 US gal/h (1.0 l/h) 0.07" w.c. (17 Pa)
** 1 pint = 0.568 litre 1 quart = 1.136 litres 1 gallon = 4.546 litres 1 US gal = 3.785 litres
1 litre = 1.760 pints 1 litre = 0.879 quart 1 litre = 0.22 gal
Pints, quarts and gallons are Canadian unless otherwise noted.
Care of enamelled parts
Do not use abrasive cleaners to clean these parts. Buff lightly with a clean, dry cloth. Porcelain enamel components must
be handled with care. The baked-on finish is “glasslike”. If struck, it will chip. Touch-up paint is available through your
Napoleon dealer.
Care of glass
If the glass is not kept clean permanent discolouration and / or blemishes may result. Normally a hot burn will clean the
glass. The most common reason for dirty glass is running the unit at a low burning rate. If it is necessary to clean the glass,
use a soft cloth with a nonabrasive cleaner. Coarse cleaning materials may cause scratches or otherwise damage the
glass. Scratches can develop into cracks or breaking of the glass.
DO NOT CLEAN GLASS WHEN HOT !
The glass is very strong for maximum performance. However, always close the door gently. If the glass should ever crack
while the fire is burning, do not open the door until the fire is out and do not operate the stove again until the glass has been
replaced with new borosilicate glass, available from your Napoleon / Wolf Steel Ltd. dealer. DO NOT SUBSTITUTE
MATERIALS. Check gaskets and seals regularly.
INSTALLATION

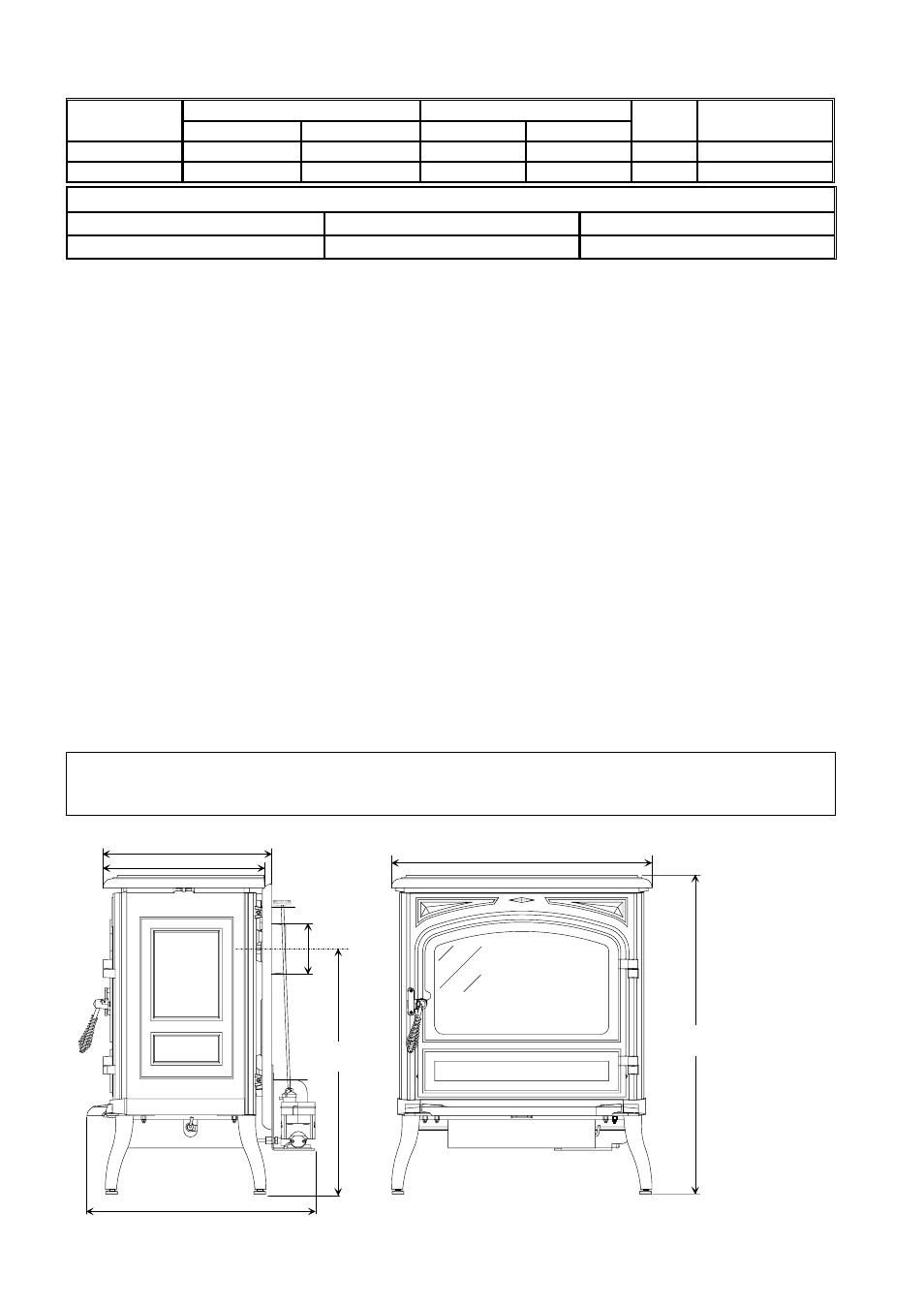

Unit and specifications
Document n° 1092-1 EN ~ 04/02/2002 4
2 1 " ( 5 4 4 m m )
2 3 "
( 5 8 5 m m )
Ø 5 "
( 1 2 0 / 1 2 5 / 1 2 7 )
1 5 " ( 3 8 5 m m )
1 6 " ( 4 0 2 m m )
2 4 1 / 2 " ( 6 2 0 m m )
3 0 "
( 7 6 0 m m )
Figure 1
WARNING : Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional information consult a qualified installer, service agency or the oil
supplier.r
