© National Instruments Corporation 5 cFP-2200/2210/2220

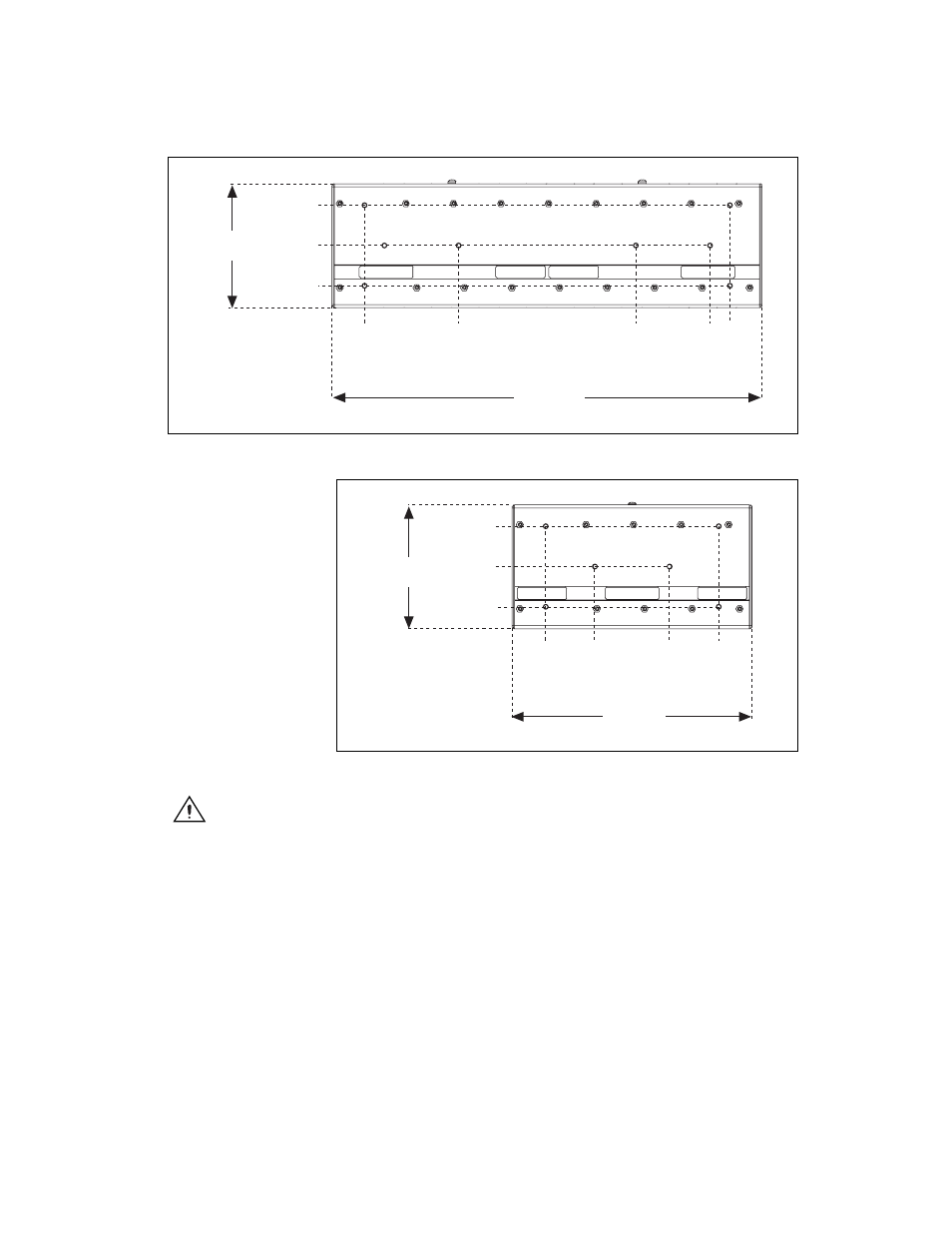

Figure 5. cFP-BP-8, Back View with Dimensions
Figure 6. cFP-BP-4, Back View with Dimensions
Caution Make sure that no I/O modules are in the backplane before mounting it.
104.78 mm
(4.1 in.)
63.50 mm
(2.5 in.)
22.23 mm
(0.9 in.)
33.15 mm
(1.3 in.)
129.54 mm
(5.1 in.)
311.40 mm
(12.3 in.)
387.60 mm
(15.3 in.)
407.80 mm
(16.1 in.)
127.00 mm
(5.0 in.)
440.94 mm
(17.4 in.)
104.74 mm
(4.1 in.)
63.46 mm
(2.5 in.)
127.00 mm
(5.0 in.)
22.19 mm
(0.9 in.)
34.04 mm
(1.3 in.)
84.84 mm
(3.3 in.)
161.04 mm
(6.3 in.)
211.84 mm
(8.3 in.)
245.87 mm
(9.6 in.)
