17
W415-0434 / C / 03.24.05
A
C
B

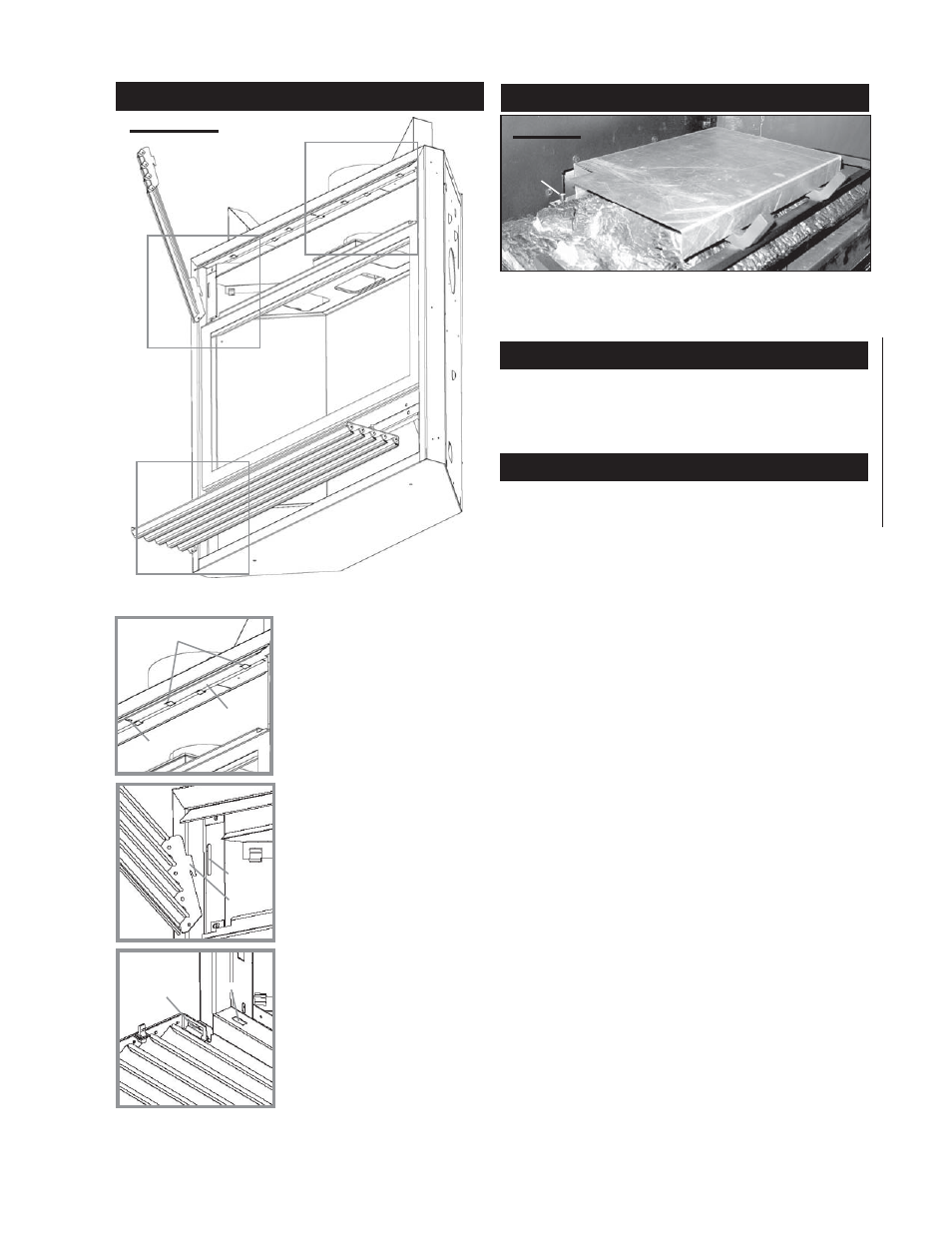

L38 LOUVRE INSTALLATION
FIGURE 43 a-c
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
A
CLIPS
C E N T R E
SLOT
FLANGE
SLOT
TA B
B
C
HINGE
CLIP
SLOT
Before installing the logs, you must first remove the log
shipping bracket. Loosen the securing screw indicated.
Slide the bracket to the right and lift up to remove.
LOG SHIPPING BRACKET
LOG SHIPPING
BRACKET
SCREW
FIGURE 45
DECORATIVE PANELS
This fireplace does not include decorative brick panels,
however, panels are required.
You now have the option of choosing 1 of 4 panel kits SOLD
SEPARATELY. (See Accessories).
CHARCOAL STRIPS
The charcoal strips have been shipped in place.
Protective foam must be removed before operation.
