7
PERFORMANCE
HVI CERTIFIED
Net supply airflow in cfm (L/s) against external static pressure
E.S.P
cfm
L/s
@ 0.1” (25 Pa)
232
(109)
@ 0.2” (50 Pa)
223
(105)
@ 0.3” (75 Pa)
215
(102)
@ 0.4” (100 Pa)
195
(92)
@ 0.5” (125 Pa)
189
(89)
Maximum Temperature Recovery
81%
Sensible Effectiveness
@ 117 cfm (55 L/s)
(CSA C439M)
74%
Sensible Efficiency
@ 117 cfm (55 L/s) 32˚F (0˚C)
65%
Sensible Efficiency
@ 117 cfm (55 L/s) -13˚F (-25˚C) 66%
VAC @ 60HZ
120
WATTS / Low speed
87
WATTS / High speed
164
Amp rating
1.4
Model 200MAX
ENGINEERING DATA
THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE
The cross-flow heat recovery core transfers heat between the two
airstreams. It is easily removed for cleaning or service.
MOTORS AND BLOWERS
- Each air stream has one centrifugal
blower driven by a common PSC motor. 5 speed fan operation.
120 VAC, 1.4 Amps.
FILTERS
- Washable air filters in exhaust and supply air streams.
MOUNTING THE HRV
- Four threaded inserts at corners of case
designed to accept four reinforced polyester straps that are
supplied with the unit.
DEFROST
- Recirculating damper defrost system.
DEHUMIDISTAT
- Adjustable Internal Dehumidistat.
CASE
- Twenty gauge prepainted galvanized steel (G60) for superior
corrosion resistance. Insulated to prevent exterior condensation.
Drain connections 2 - 1/2" (12 mm) OD.
CONTROLS
- ControlAir 15
WEIGHT
71 lbs. (32.5 kg
SHIPPING WEIGHT
73 lbs. (33.5 kg)

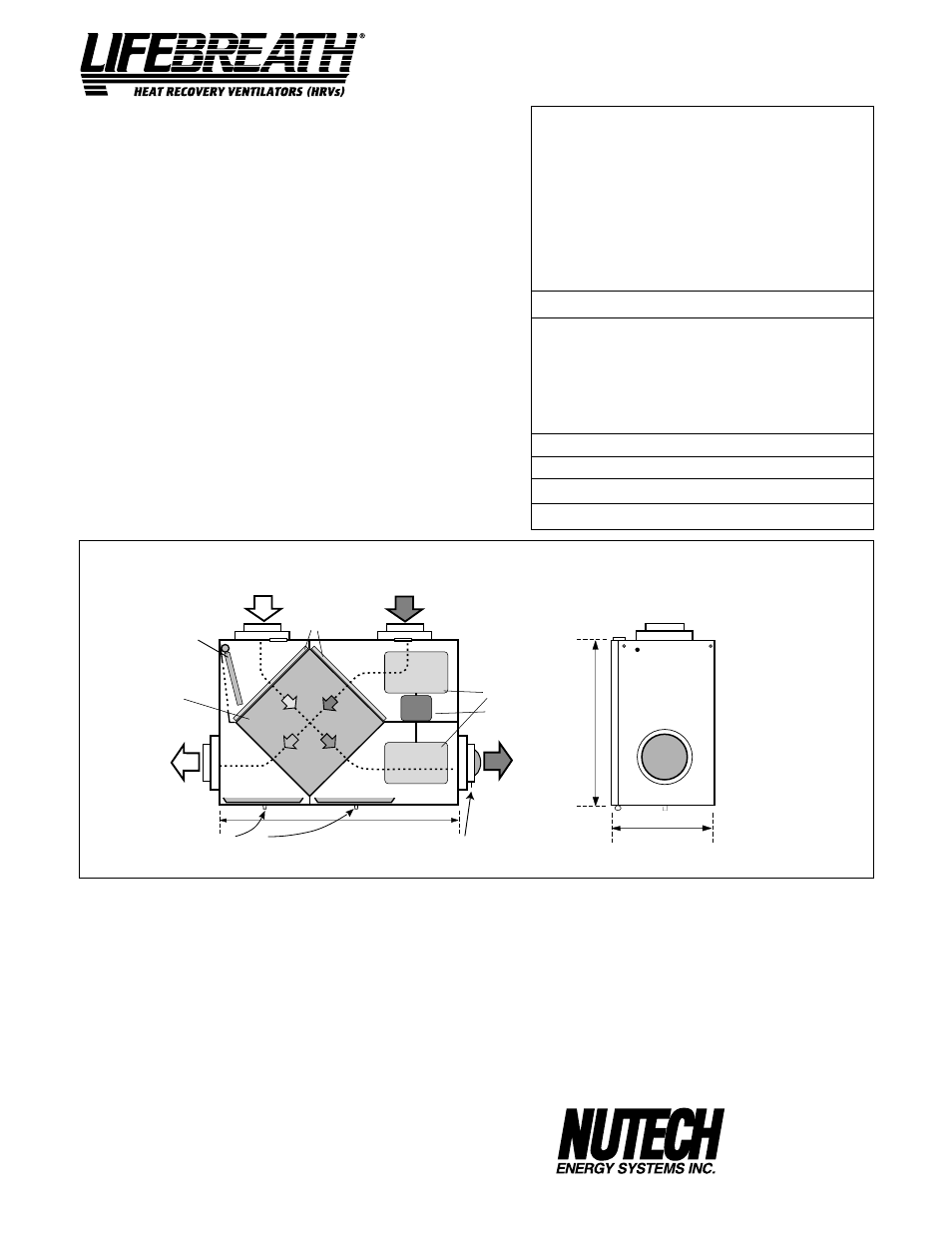

BALANCING DAMPER
32 5/8"
(828)
STALE AIR
FROM INSIDE
FRESH AIR
FROM OUTSIDE
STALE AIR
TO OUTSIDE
FRESH AIR
TO INSIDE
14 3/4"
(375)
19"
(483)
*All Duct Connections 6" (150mm)
CONDENSATE DRAINS
FILTERS
BLOWERS
*NOTE: Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
RECIRCULATING
DEFROST
DAMPER
MOTOR
CORE
DIMENSIONS 200MAX
inches (mm)
OPTIONS
99-104
Digital Electronic Timer
- 20/40/60 min.
99-105
Programmable Ventilation Control
(PVC)
includes Programmable Time Clock, Dehumidistat
and Air Sentry™
99-109
Air Sentry
™ Air Quality Monitor designed to accept
remotely mounted Control Pad
99-250
Ventilation Dehumidistat -
Dehumidistat designed to
accept remotely mounted Control Pad.
99-163
Duct Heater
w/ Electronic SCR Thermostat, 1 Kw,
6” (150mm)
99-164
Duct Heater
w/ Electronic SCR Thermostat, 2 Kw,
6” (150mm)
99-186
Weatherhoods
, Two - 6” (150mm)
c/w 1/4” (6mm) mesh screen
All units conform to CSA and UL standards.
WARRANTY
Units carry a LIFETIME warranty on the heat recovery core and
a 5 year replacement parts warranty.
TI-99-NE
0202
DATE: __________________________
PROJECT: __________________________________________
MECHANICAL CONTRACTOR: _____________________________
511 McCormick Blvd.
London, Ontario
N5W 4C8
Ph: (519) 457-1904
Fx: (519) 457-1676
Email: [email protected]
Website: www.lifebreath.com
