10
Model 300DCS
49 "
(1245)
STALE AIR
TO OUTSIDE
FRESH AIR
TO INSIDE
14 3/4"
(375)
19"
(483)
Ports
7" (178 mm)
CONDENSATE
DRAINS
BLOWERS
*NOTE:
Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
MOTOR
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM INSIDE
FILTER
DEFROST
DAMPER
DEFROST AIR
FROM INSIDE
FILTER
Ports
6" (150 mm)
METAL CLASPS

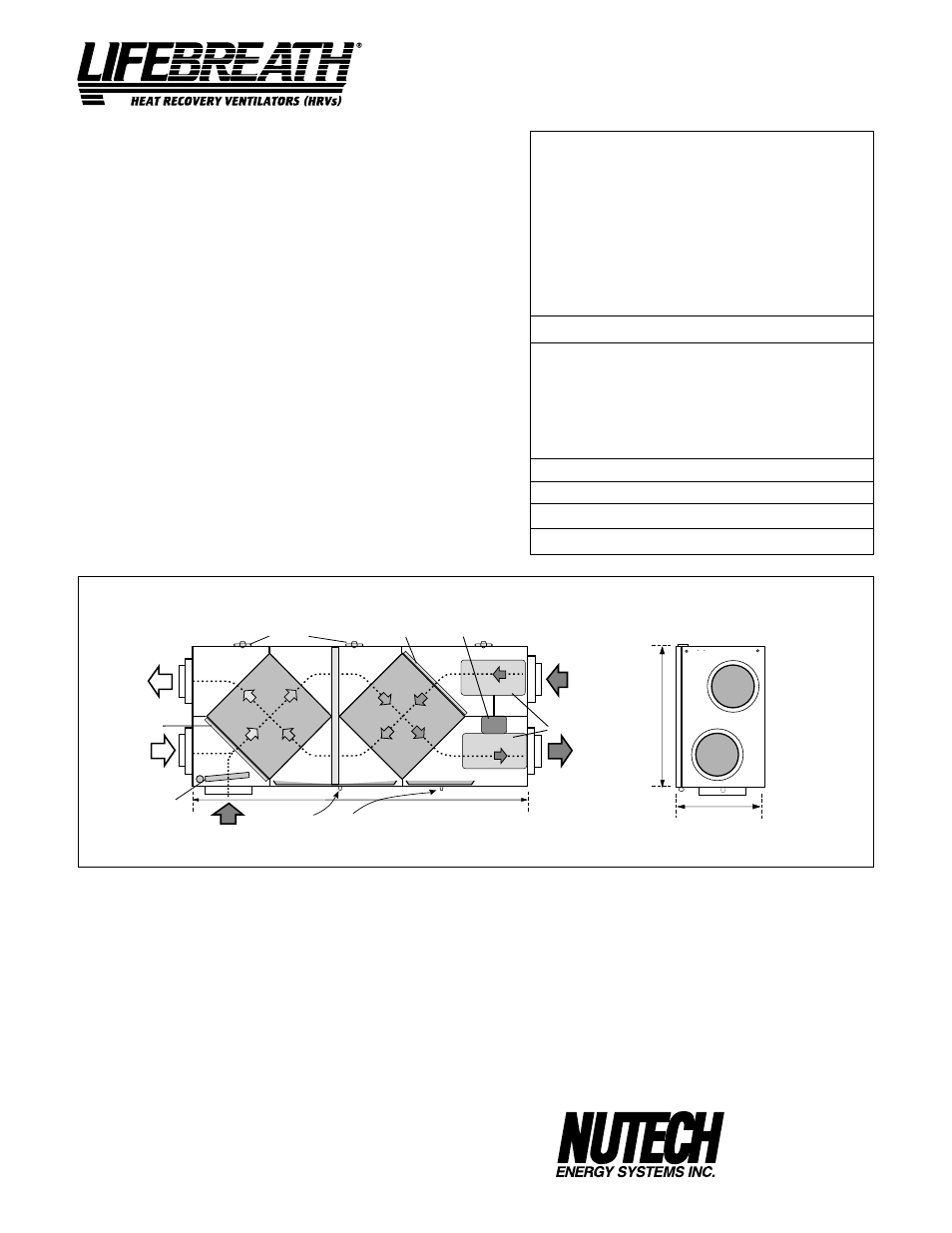

DIMENSIONS 300DCS inches (mm)
OPTIONS
99-104 Digital Electronic Timer - 20/40/60 min.
99-105 Programmable Ventilation Control (PVC)
includes Programmable Time Clock, Dehumidistat
and Air Sentry™
99-109 Air Sentry ™ Air Quality Monitor designed to
accept remotely mounted Control Pad.
99-250 Ventilation Dehumidistat - Dehumidistat designed
to accept remotely mounted Control Pad.
99-160 Duct Heater w/ Electronic SCR Thermostat,
1 Kw, 7” (178 mm)
99-161 Duct Heater w/ Electronic SCR Thermostat,
2 Kw, 7” (178 mm)
99-186 Weatherhoods , Two - 6” (150mm)
c/w 1/4” (6mm) mesh screen
All units conform to CSA and UL standards.
WARRANTY
Units carry a LIFETIME warranty on the heat recovery core and
a 5 year replacement parts warranty.
TI-102-NE
0112
ENGINEERING DATA
THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE
The cross-flow heat recovery core transfers heat between the two
airstreams The two cores are arranged for highly efficient counter
current airflow.
MOTORS AND BLOWERS - Each air stream has one centrifugal
blower driven by a common PSC motor. 5 speed fan operation.
120 VAC, 2.9 Amps.
FILTERS - Washable air filters in exhaust and supply air streams.
MOUNTING THE HRV - Four threaded inserts at corners of case
designed to accept four reinforced polyester straps that are supplied
with the unit.
DEFROST - Damper defrost system.
DEHUMIDISTAT - Adjustable Internal Dehumidistat.
CASE - Twenty gauge prepainted galvanized steel (G60) for superior
corrosion resistance. Insulated to prevent exterior condensation.
Drain connections 2 - 1/2" (12 mm) OD.
CONTROLS - ControlAir 15
WEIGHT 106 lbs. (48 kg) SHIPPING WEIGHT 108 lbs. (49 kg )
PERFORMANCE
HVI CERTIFIED
Net supply airflow in cfm (L/s) against external static pressure
E.S.P cfm L/s
@ 0.1” (25 Pa) 265 (125)
@ 0.2” (50 Pa) 260 (123)
@ 0.3” (75 Pa) 250 (118)
@ 0.4” (100 Pa) 235 (111)
@ 0.5” (125 Pa) 220 (104)
Maximum Temperature Recovery 90%
Sensible Effectiveness
@ 117 cfm (55 L/s)
(CSA C439M)
90%
Sensible Efficiency
@ 117 cfm (55 L/s) 32°F (0
O C) 79%
Sensible Efficiency
@ 117 cfm (55 L/s) -13°F (-25
O C)
75%
VAC @ 60HZ 120
WATTS / Low speed 150
WATTS / High speed 333
Amp rating 2.9
