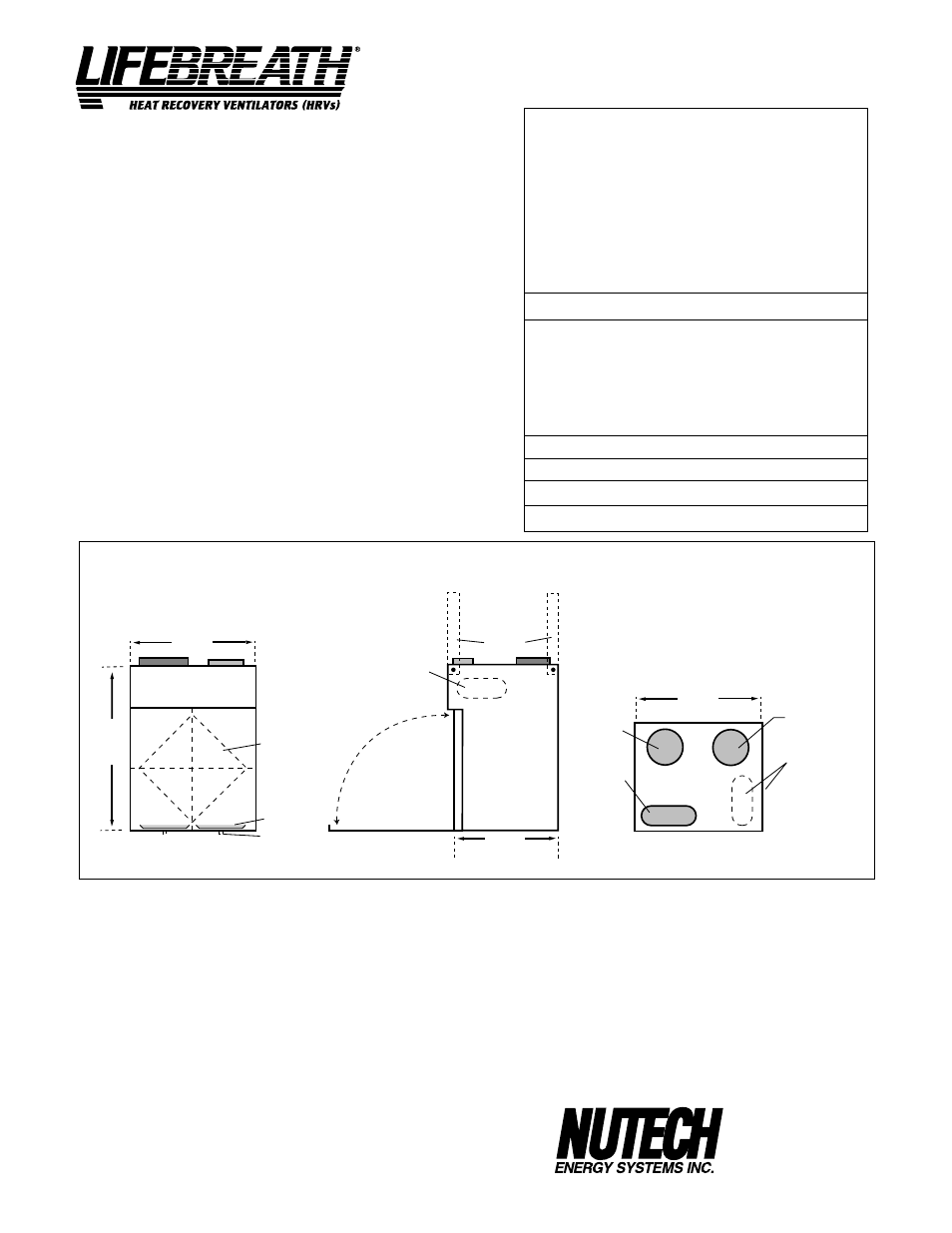

Model 95max, Dimensions 95max, Front top – Lifebreath 200ERV User Manual
Page 5: Side, Engineering data, Performance, Options

5
Removably
Heat Recovery
Core
Drain Pan
Drain spout
FRONT
TOP
knockout for
side mounting of
EXHAUST return port
6" round collar
converted to oval
minimum
18 inches (459 mm)
required for
service access
Threaded
inserts (4)
at corners
SUPPLY
Fresh air
from outside
5" round collar
SUPPLY
Fresh air
to building
6" round
(conv. to oval)
collar
EXHAUST
Stale Air
to outside
5" round collar
EXHAUST
Return air
from building
Choice of port location
Knockouts on top and
side of unit (use 1 only)
6" round (conv. to oval)
collar supplied
DIMENSIONS 95MAX
inches (mm)
18.5"
(470 mm)
18.5"
(470 mm)
16"
(406 mm)
SIDE
Hanging
straps (4)
24.5"
(622 mm)
Model 95MAX
ENGINEERING DATA
THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE
The cross-flow heat recovery core transfers heat between the two
airstreams. It is easily removed for cleaning or service.
MOTORS AND BLOWERS
- Each air stream has one centrifugal
blower driven by a common PSC motor. 5 speed fan operation.
120 VAC, .8 Amps.
FILTERS
- Washable air filters in exhaust and supply air streams.
MOUNTING THE HRV
- Four threaded inserts at corners of the
cabinet designed to accept PVC reinforced polyester straps that are
supplied with the unit.
DEFROST
- Recirculating defrost system.
CASE
- Twenty gauge prepainted galvanized steel (G60) for superior
corrosion resistance. Insulated to prevent exterior condensation.
Drain connections 2 - 1/2" (12 mm) OD.
CONTROLS
- ControlAir 15
WEIGHT
52 lbs. (23.6 kg)
SHIPPING WEIGHT
56 lbs. (25.4 kg)
OPTIONS
99-104
Digital Electronic Timer
- 20/40/60 min.
99-105
Programmable Ventilation Control
(PVC)
includes Programmable Time Clock, Dehumidistat
and Air Sentry™
99-109
Air Sentry
™ Air Quality Monitor designed to
accept remotely mounted Control Pad
99-250
Ventilation Dehumidistat -
Dehumidistat designed
to accept remotely mounted Control Pad
99-163
Duct Heater
w/ Electronic SCR Thermostat, 1 Kw,
6” (150 mm)
99-185
Weatherhoods
, Two - 5” (125 mm)
c/w 1/4” (6 mm) mesh screen
All units conform to CSA and UL standards.
WARRANTY
Units carry a LIFETIME warranty on the heat recovery core and
a 5 year replacement parts warranty.
