ControlAir 15
OPTIONAL REMOTE CONTROLS
0011
NEW!
AIR SENTRY™ AIR QUALITY SENSOR
LOCATION:
Kitchen, basement,
work place
(connect 1/unit only).
• Digital Air Quality Monitor.
• Status light indicates fan speed.
• Increases ventilation to remove
odours and contaminants.
• Among gases detected are
cigarette smoke and formaldehyde.
• 100' (30 m) maximum wire length.
• Knockout designed to accept Control
Pad when remotely mounted.
PART NO. 99-109
Connects to
RED
,
GREEN
and
YELLOW
terminals.
*NOTE:
This device is NOT compatible with the PVC.
A
I R
S
E N T R Y
™
D
I G I T A L
A
I R
Q
U A L I T Y
S
E N S O R
F A N S
P E E D
I N D I C
A T O R

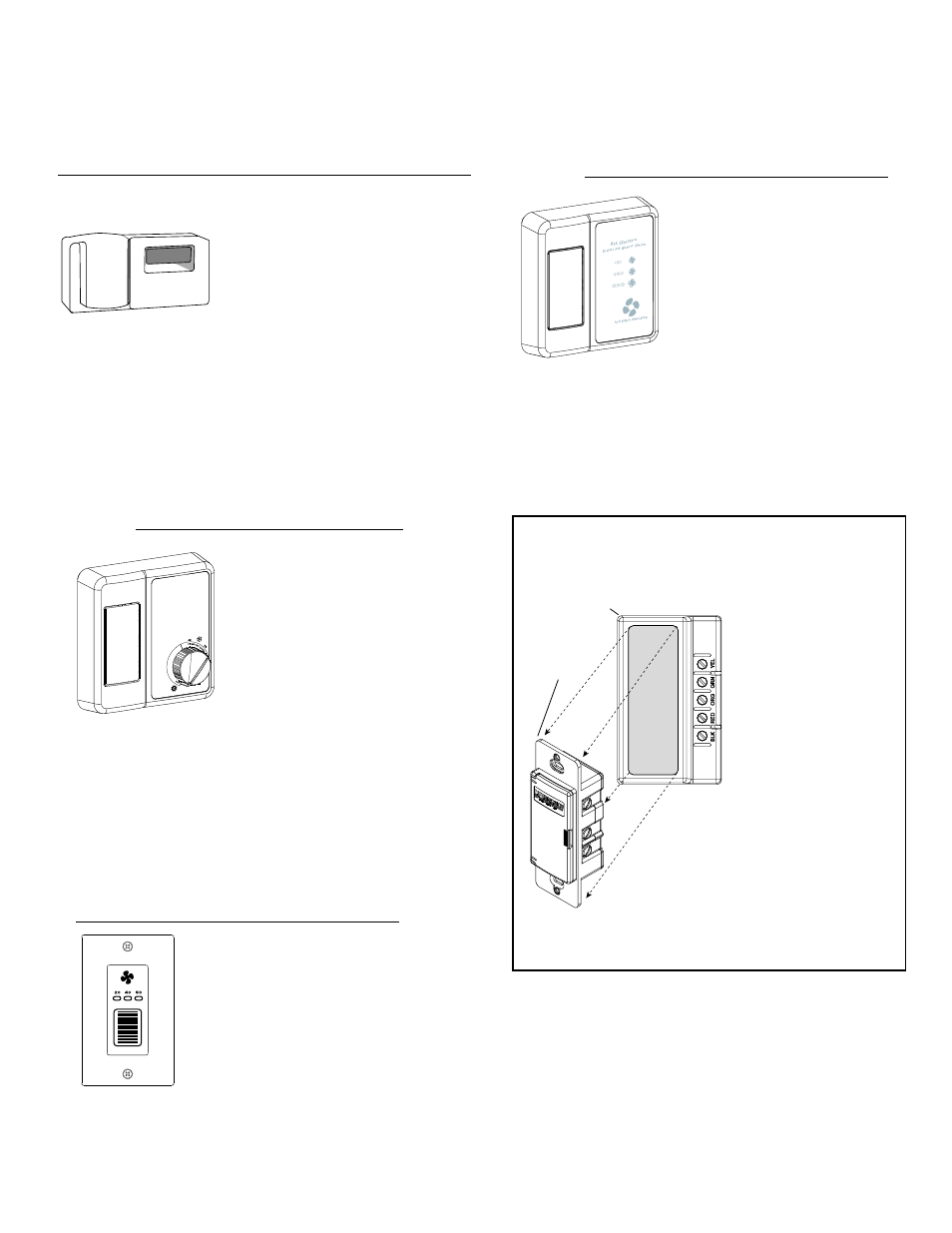

ControlAir 15
• All controls wire to
matching colour on
the Control Module.
• Control Pad can be
removed and mounted
in a remote location.
• Control Pad mounts
in a 2”x 4” box or can
be mounted in the
optional Ventilation
Dehumidistat or
Air Sentry.
• Full fan speed control.
DIGITAL ELECTRONIC TIMER (DET)
LOCATION:
Bathrooms & kitchen
•
Connect up to 8 on 300
' (91 m) wire max.
•
If a PVC or Air Sentry is used, connect
up to 5 on 300
' wire max.
• Touch pad operation.
• 20/40/60 minute status lights.
• Compact wall mount unit.
• Mounts in 2x4 box.
• Shown with “decora” cover plate (99-107W).
PART NO. 99-104
Connects to
RED
,
GREEN
and
YELLOW
terminals.
PROGRAMMABLE VENTILATION CONTROLLER (PVC)
LOCATION:
Hallway, kitchen, office
& work place
(connect 1/unit only)
• Advanced digital remote.
• Digital dehumidistat.
• Full fan speed control.
• AIR SENTRY™ Air Quality Sensor built-in.
• Recirculation mode (on compatible
HRV/ERVs).
• 7 day, 24 hour programmable timer.
• Digital display and status lights.
• 100' (30 m) maximum wire length.
PART NO. 99-105
Connects to
RED
,
ORANGE
,
GREEN
and
YELLOW
terminals.
*NOTE: This device is NOT compatible with the Air Sentry.
NEW!
VENTILATION DEHUMIDISTAT
LOCATION:
Central location in house.
• Dehumidistat activates high speed
over-ride when humidity level in home
exceeds setting.
• Knockout designed to accept Control
Pad when remotely mounted, giving full
HRV/ERV functionality & control from
remote location.
PART NO. 99-250
Connects to
BLACK, RED
,
GREEN
and
YELLOW
terminals.
*
Replaces
99-116 DVC
&
99-230 VRD.
*
Only compatible with ControlAir 15 electronics.
VENTILATION
DEHUMIDIST
AT
• Three Modes of Operation
- Standby/ON
- 20 ON / 40 OFF
- Recirculation
(on compatible HRV/ERVs)
Control Module
Control Pad
*See individual control instructions for more details.
