Lifebreath 200ERV - Manual (Page 11)

11
Model 200ERV
®
C L E A N • F R E S H • A I R
ENGINEERING DATA
LATENT RECOVERY/MOISTURE TRANSFER CORE
The cross-flow energy recovery core transfers heat and water
vapour between the two airstreams. It is easily removed for
cleaning or service.
MOTORS AND BLOWERS - Each air stream has one centrifugal
blower driven by a common PSC motor. 5 speed fan operation.
High speed - 120 VAC, 182 Watts.
FILTERS - Washable air filters in exhaust and supply air streams.
MOUNTING THE ERV - Four threaded inserts at corners of case
designed to accept four PVC reinforced polyester straps that are
supplied with the unit.
CASE - Twenty gauge prepainted galvanized steel (G60) for
superior corrosion resistance. Insulated to prevent exterior
condensation.
CONTROLS - ControlAir 15
WEIGHT 63 lbs. (28.7 kg) SHIPPING WEIGHT 65 lbs. (29.6 kg)
PERFORMANCE
Net supply airflow in cfm (L/s) against external static pressure
E.S.P cfm L/s
@ 0.1” (25 Pa) 214 (101)
@ 0.2” (50 Pa) 206 (97)
@ 0.3” (75 Pa) 193 (91)
@ 0.4” (100 Pa) 184 (87)
@ 0.5” (125 Pa) 170 (80)
Sensible Effectiveness
@127cfm (60 L/s)
(CSA C439M)
67%
Sensible Efficiency 32°F (0°C) 60%
Total Efficiency 55%
VAC @ 60HZ 120
WATTS / Low speed 70
STALE AIR
TO OUTSIDE
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM INSIDE
FRESH AIR
TO INSIDE
14 3 / 4 "
(375)
19"
(483)

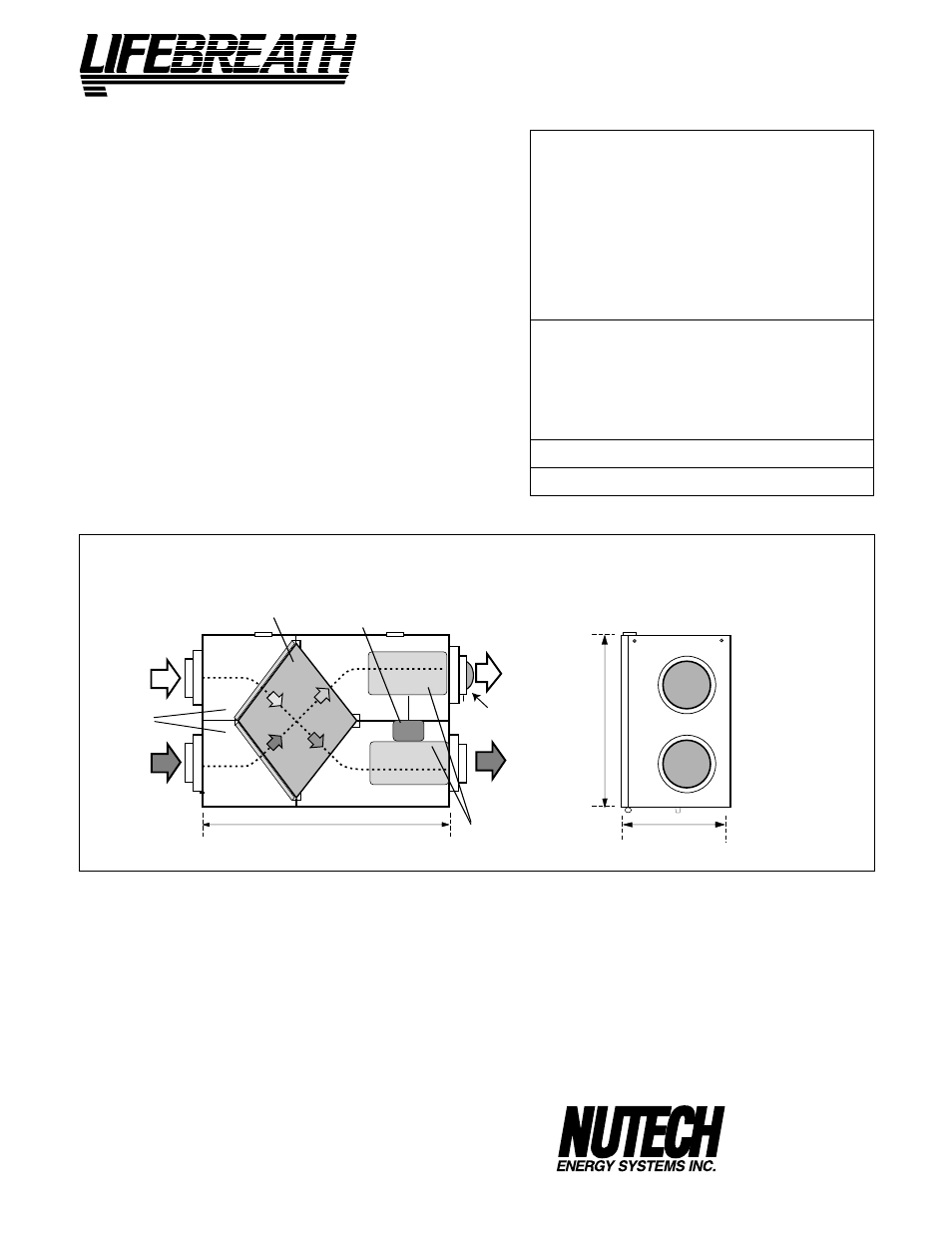

DIMENSIONS 200ERV
inches (mm)
* All Duct Connections 6"(150mm)
FILTERS
BLOWERS
*NOTE: Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
MOTOR
ENTHALPIC CORE
31"
(787)
BALANCING
DAMPER
OPTIONS
99-104 Digital Electronic Timer - 20/40/60 min. (3 wire)
99-105 Deluxe Programmable Control includes
Programmable Time Clock, Dehumidistat
and Air Sentry™
99-109 Air Sentry ™ Air Quality Monitor designed to
accept remotely mounted Control Pad
99-186 Weatherhoods , Two - 6” (150mm)
c/w 1/4” (6mm) mesh screen
WARRANTY
Units carry a 5 year warranty on the energy recovery core and
replacement parts.
All units conform to CSA and UL standards.
ERVs are not recommended for regions where the
design temperature is below 25°F (-4°C)
TI-98E
0202
