Description 17

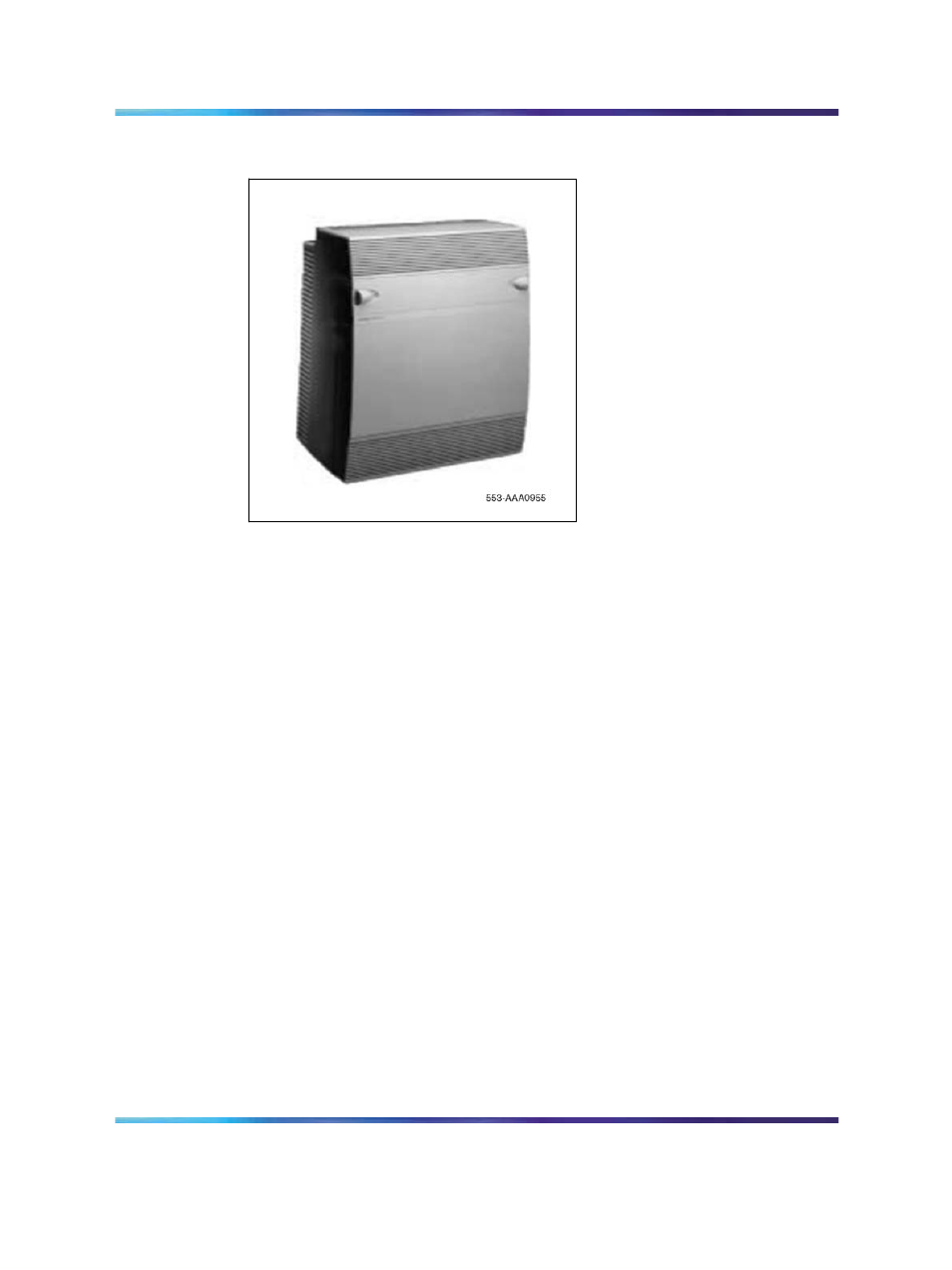

Figure 1
NTAK11 Cabinet
The Cabinet system can be expanded using either fiber or IP connectivity,
or a mixture of both. Refer to
"Fiber-optic and IP expansion" (page 33)
for more information.
A fully expanded Cabinet system can support up to 720 lines or up to 1000
IP Phones.
Note: When the term "Main" is used on its own, it refers to a Main
Cabinet. When the term "Expansion" is used on its own, it refers to an
Expansion Cabinet.
Card slot specifications
In addition to one dedicated card slot for system control functions, the Main
and Expansion Cabinets each provide ten Intelligent Peripheral Equipment
(IPE) card slots. These card slots support all IPE trunk and line cards.
They also support line and trunk cards that have been specially designed to
work only in Cabinet systems.
Figure 2 "Circuit card assignments in the Main Cabinet" (page 18) shows
the card slot assignments in the Main Cabinet.
