Using the wired remote control mode

Connect the included remote control cable to the remote

control's remote jack and "REMOTE IN" jack on the

monitor.

When the cable is connected, the mode automatically

switches to wired remote control.

When the wired remote control mode is used, the remote

control unit can be operated even if no batteries are loaded.

Operating Range

* Use the remote controller within a distance of about 7 m

/ 23ft. from the front of the monitor's remote control sen-
sor and at a horizontal angle of within 30

* The remote control operation may not function if the

monitor's remote control sensor is exposed to direct sun-
light or strong artificial light, or if there is an obstacle
between the sensor and the remote control unit.

Note:
Do not connect the wired remote control to the REMOTE
THROUGH OUT jack. If doing so, the remote control
does not work.

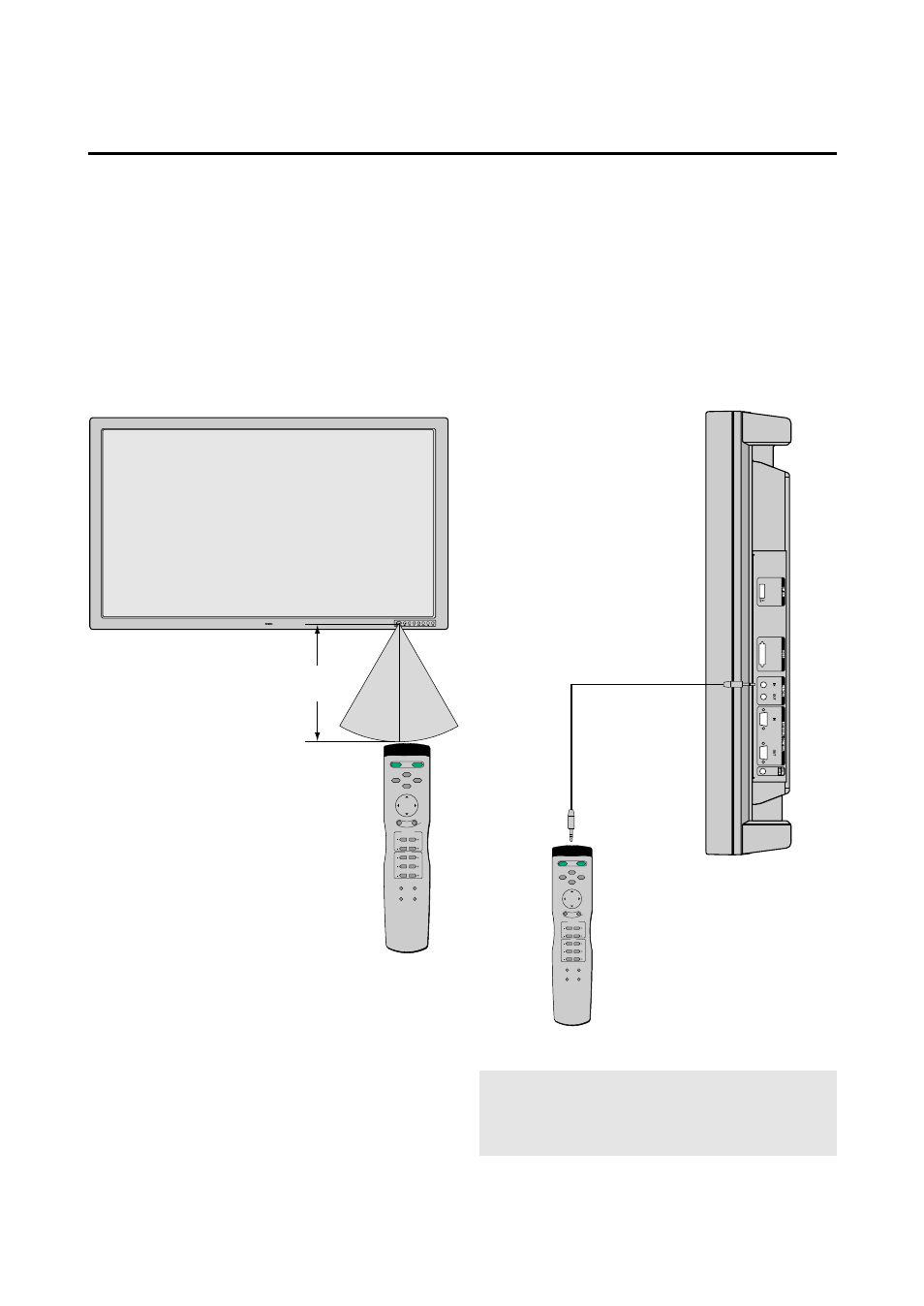

Remote Control Cable

To Remote Jack

POWER ON

POWER OFF

RGB 1

RGB 2

POSITION / CONTR OL

RGB 3

EXIT

PROCEED

VIDEO

CONTRAST

RGB/VIDEO

BRIGHT

COLOR

VIDEO

TINT

SHARPNESS

VISUAL

NORMAL

RASTER
NORMAL

ID SELECT

CLEAR

Approx.
7m/23ft

30˚
