E-23

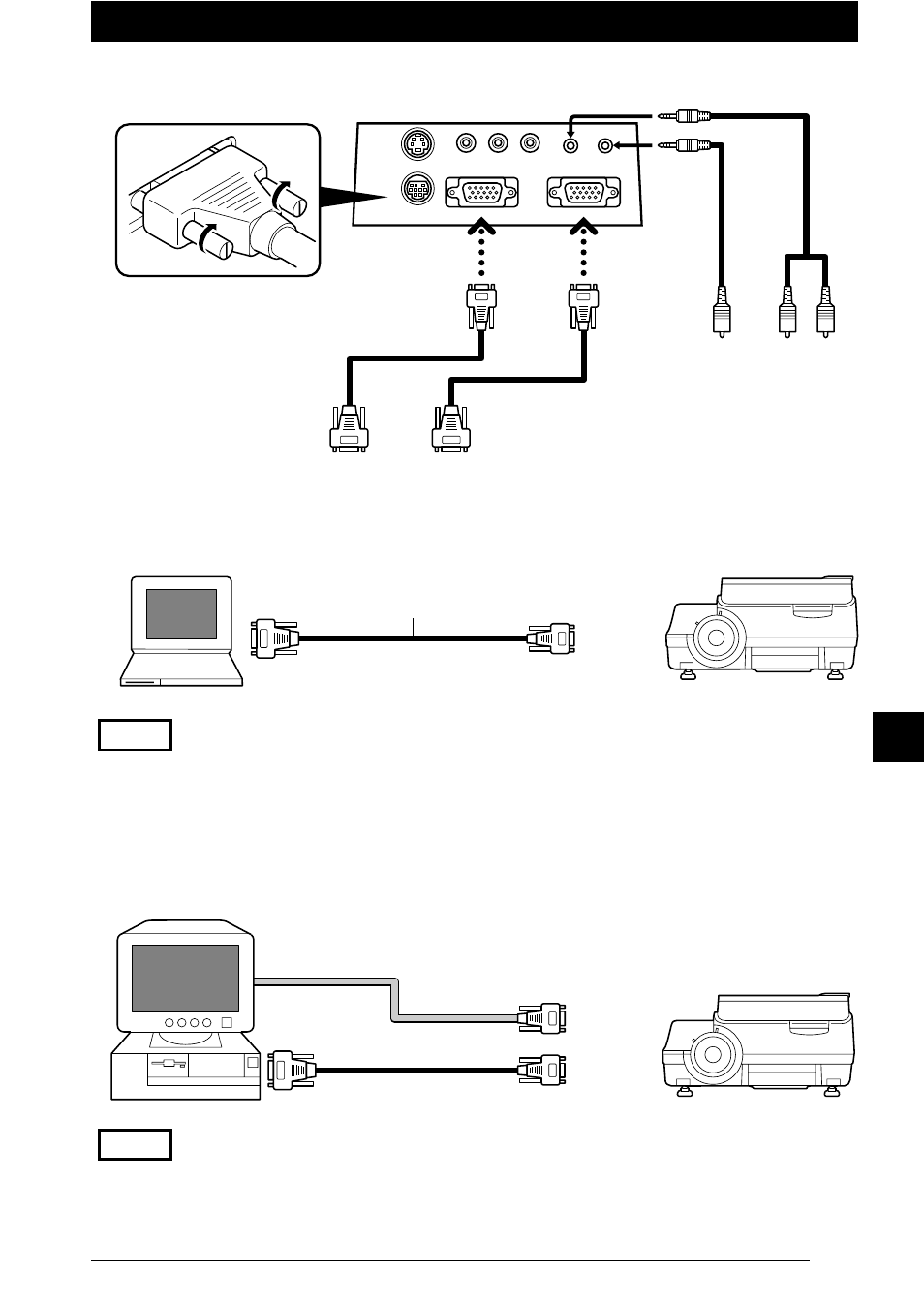

How to Connect Your Projector
● Typical Connection Examples
● IBM Notebook Models and Compatible
IBM PC/AT and compatibles
NOTE
Connect the Supplied signal cable, then use the PC's software to check the external CRT output and internal LCD
output status and select the correct mode.
Unless in external CRT output mode, no signal will be output.
● IBM Desktop Models and Compatible
IBM PC/AT and compatibles
NOTE
Connect only the Supplied signal cable if you are connecting the PC directly to your projector without using the
PC's monitor.
Signal cable
(supplied)
To PC-IN
connector
DT100
Monitor cable
Signal cable
(supplied)
To PC-OUT
connector
To PC-IN
connector
DT100
R L V OUT IN
PC-AUDIO VIDEO-IN
S-VIDEO
TEST PC-OUT PC-IN
Insert the connector and tighten the screws.
To RGB input connector
of monitor
The type of connector cable varies
according to the type of PC.
DT100 terminal panel
To analog RGB
outputs of PC
To Audio
outputs of PC
To speaker
input
