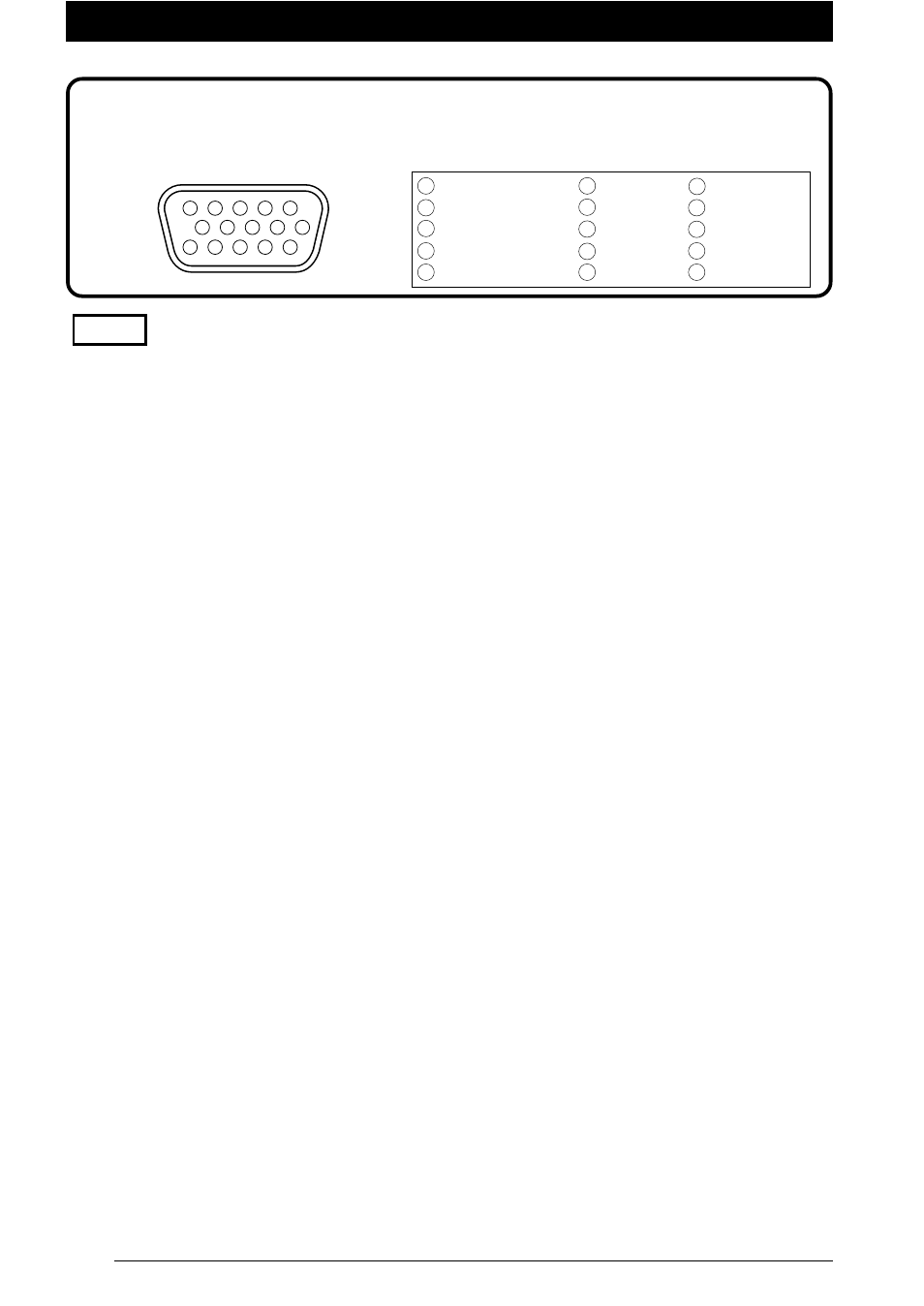

About the PC INPUT and OUTPUT connectors

A 15-pin mini D-SUB connector is used as the PC INPUT and OUTPUT terminals. The
following shows the correspondence between pins and signals.

1 RED VIDEO

6 GND

11 GND

2 GREEN VIDEO

7 GND

12 ----

3 BLUE VIDEO

8 GND

13 H.SYNC

4 GND

9 ----

14 V.SYNC

5 ----

10 GND

15 ----

NOTE

• The 15-pin RGB input and output connectors on your projector are for analog signals and cannot be connected to

a PC supporting only a digital signal output.
