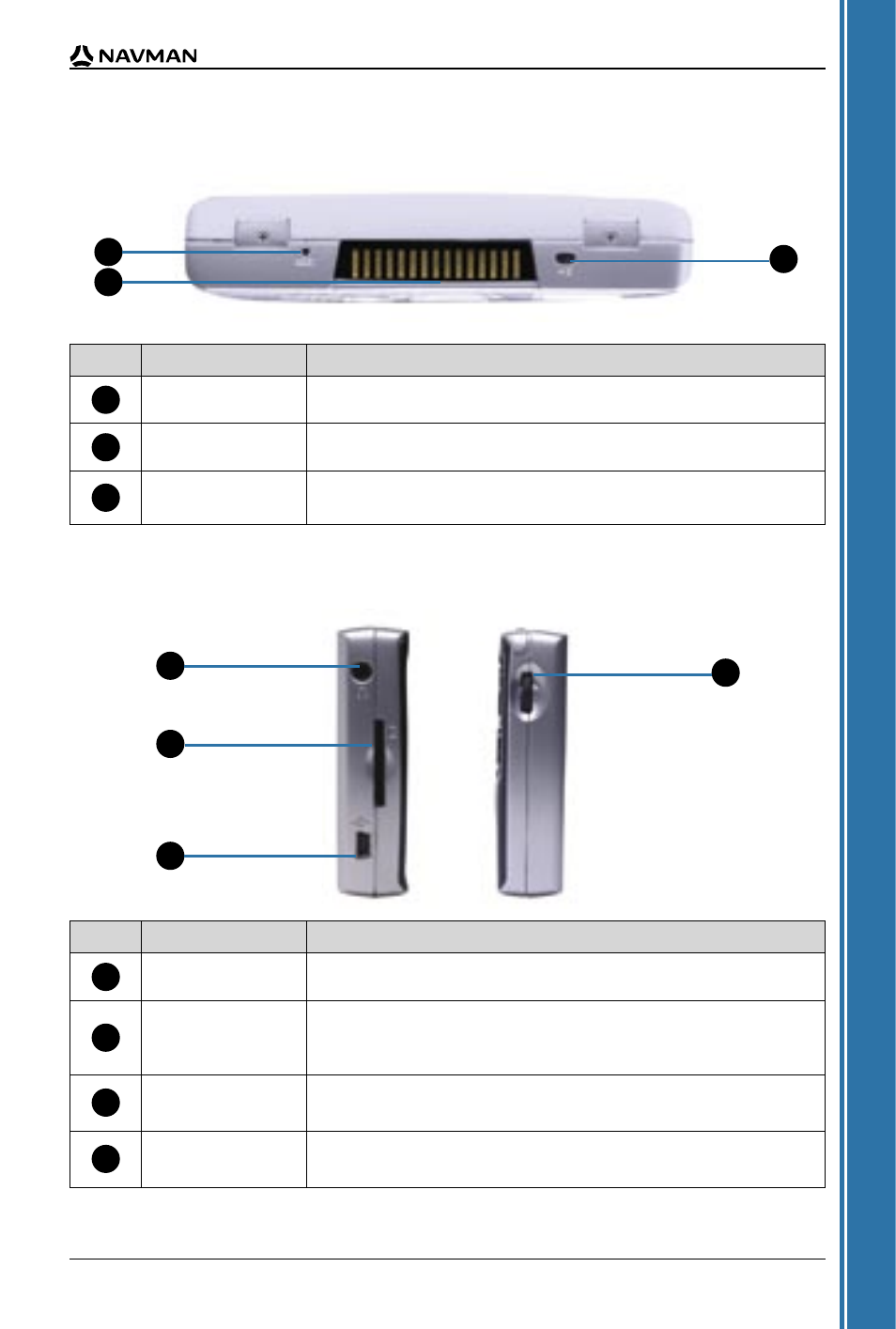

Bottom Components
Component Description
1
Reset Resets the iCN; press using the stylus.
2
Hot Shoe Plate Connection plate for the P1 or T1 mount.
3
Battery Switch
Must be set to ON ( | )for normal use. Switching to OFF (O) will turn
the battery off, saving battery power.
Side Components
Component Description
1
Headphone Socket Connection socket for headphones or earphones (not included).
2
SD/MMC Slot
Slot for memory card. Memory card must be inserted with label
facing forward.
3
USB Socket
Connection for the in-vehicle power adaptor and connection socket
for USB cable to your computer.
4
Volume Control
Rotate up or down briefly to hear a sound test; rotate and hold to
adjust volume.
