1.5 LCD Symbols and Meanings

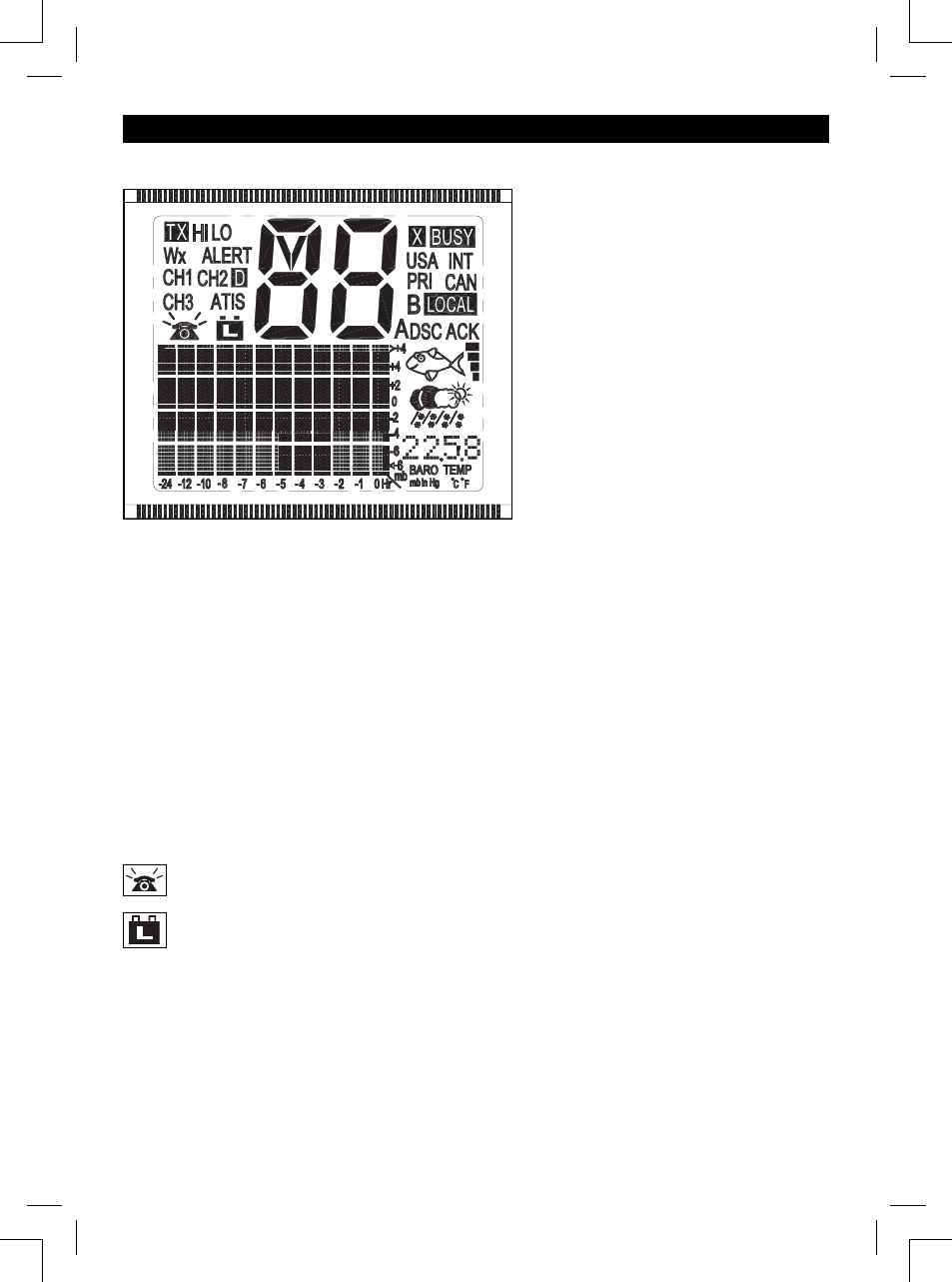

This simulation shows the locations of all the following information symbols:
Symbol Meaning
TX Transmitting.
HI LO
Transmission power. High (HI) 25W or Low (LO) 1W.
WX Weather
channel.
WX ALT
Weather Alert. Alarm beeps will sound. 7200 US only.
CH1 CH2 CH3 Shows which of the 3 favorite channels, if any, are selected.
Otherwise blank.
D
Duplex operation. Otherwise, blank for Simplex operation.
ATIS
Enabled for use in European inland waterways. Otherwise blank.
7200 EU only.
Indicates an incoming DSC call, or blinks to notify you of any
unread Call Log messages.
Low Battery warning (activates at 10.5V)
88 Channel
selected
X
Channel is temporarily deleted from the ALL SCAN operation.
BUSY
Receiver busy with an incoming signal.
USA INT CAN Selected channel bank for VHF radio operations and regulations.
PRI
Priority channel is selected.
