Facing and/or fi nishing material must never overhang into the fi replace opening.

Do not distort or force the frame kit components.

When using a rough fi nish material (i.e. stone), maintain a ¼” - ½” border from the framing

components.

MINIMUM ENCLOSURE CLEARANCES

Minimum clearance to combustible construction from fi replace
and vent surfaces:
Combustible framing:

-

0 “ to stand-offs

Non-combustible fi replace fi nishing:

-

4 “ from the sides of fi replace opening

- 22

3

/

8

“ to the top of fi replace opening

Combustible fi replace fi nishing:

-

0 “ to rear and sides

-

2” all around the vent pipe

-

22

1

/

4

“ recessed depth

-

72 “ from bottom of unit to enclosure top

-

72 “ from bottom of unit to ceiling

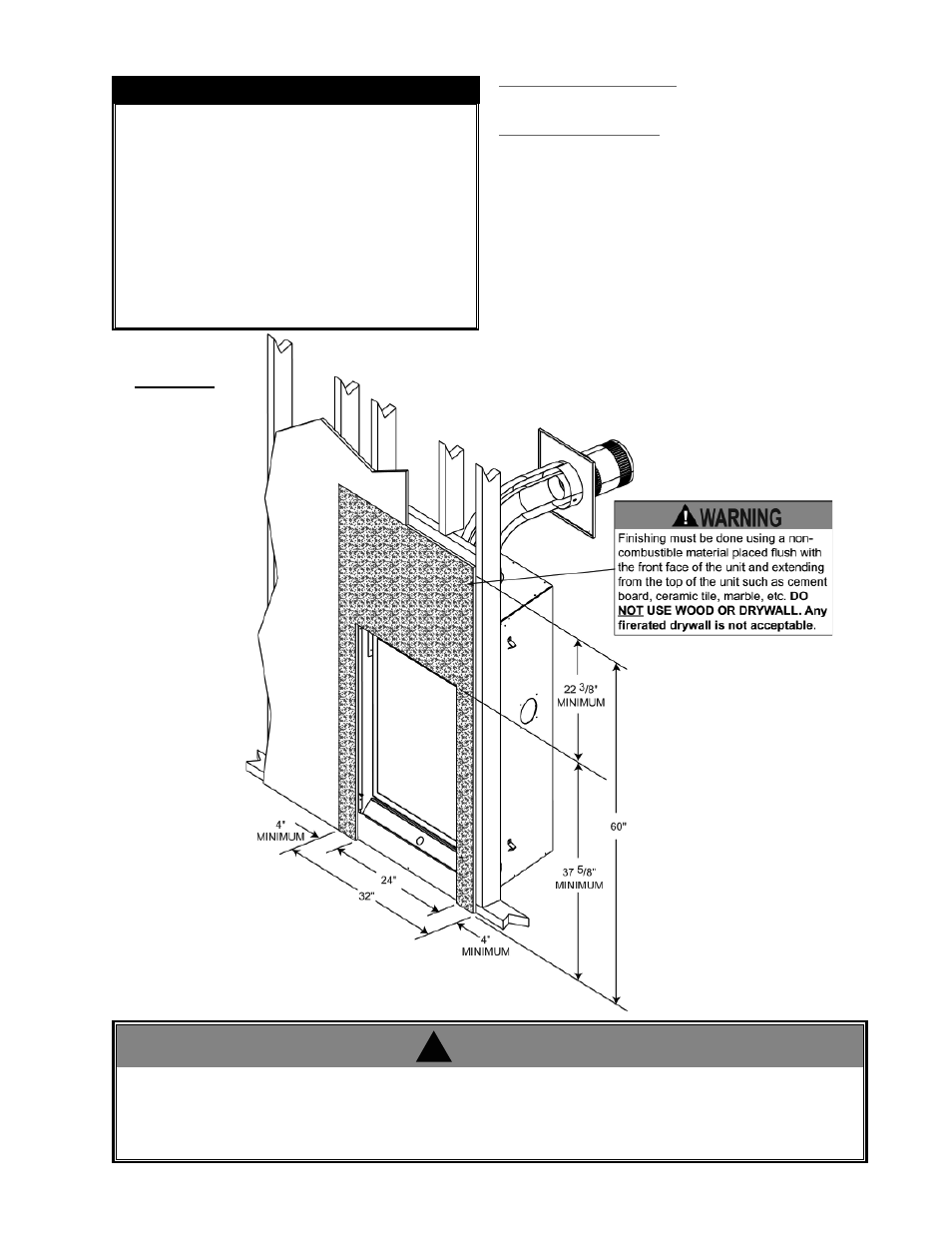

FIGURE 32

HORIZONTAL VENT SECTIONS: A minimum clearance of 2” all around
the vent pipe on all horizontal runs to combustibles is required. Use
fi restop spacer W010-1799 (supplied).

VERTICAL VENT SECTIONS: A minimum of 1” all around the vent pipe
on all vertical runs to combustibles is required except for clearances in
fi replace enclosures. Use fi restop spacer W500-0096 (not supplied).

!
