RSTP and MSTP 60
3. Assign VLANs to Spanning Tree Groups.
>> /cfg/l2/stp 2 (Select Spanning Tree Group 2)
>> Spanning Tree Group 2# add 2 (Add VLAN 2)
>> Spanning Tree Group 2# apply (Apply the configurations)

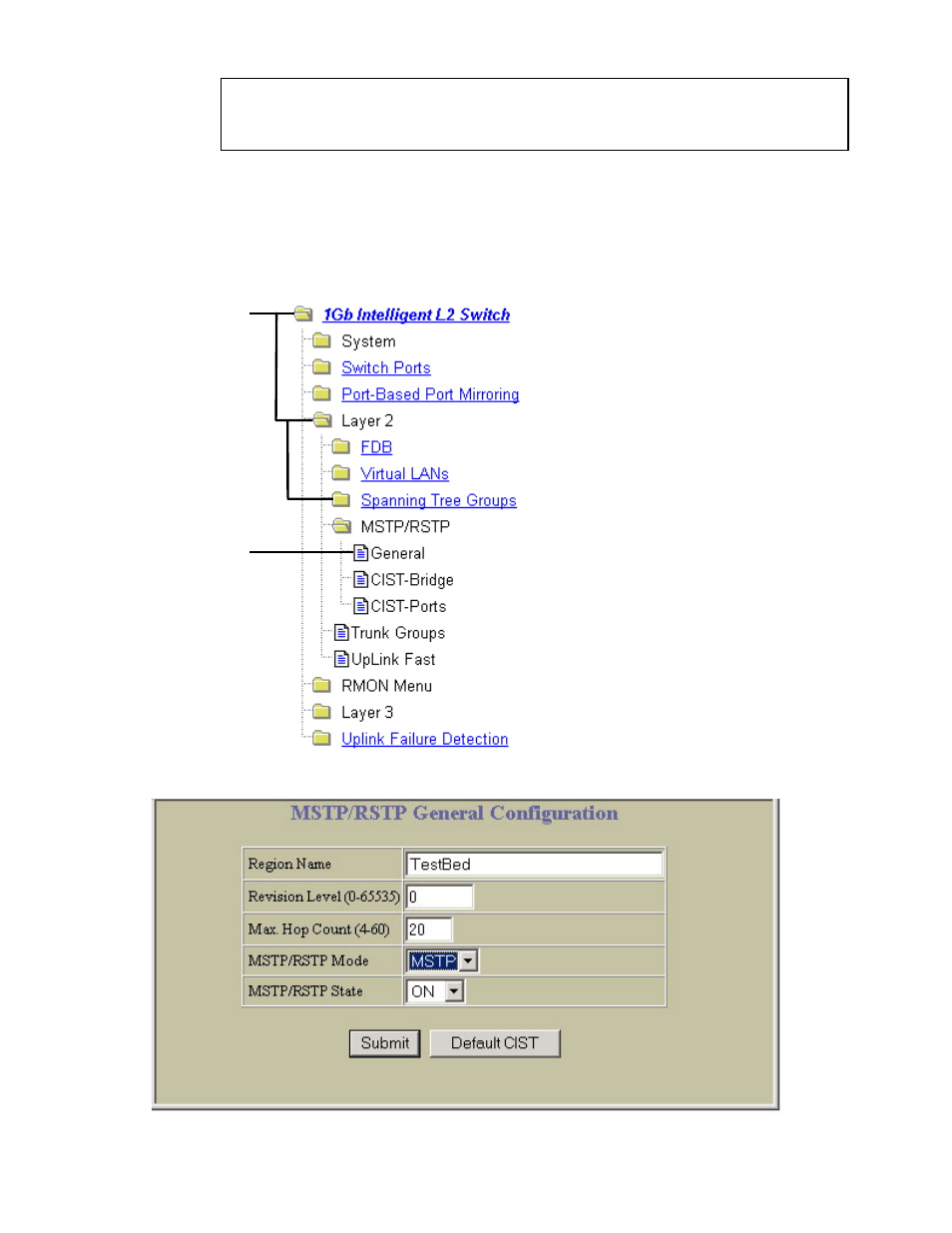

Configuring Multiple Spanning Tree Protocol (BBI example)
1. Configure port and VLAN membership on the switch, as described in the “Configuring ports and VLANs (BBI
example)” section in the “VLANs” chapter of this guide.
2. Configure MSTP general parameters.
a. Click the Configure context button on the Toolbar.
b. Open the MSTP/RSTP folder, and select General.
c. Enter the region name and revision level. Select MSTP mode, and set the MSTP/RSTP state to ON.
d. Click Submit.
Open
Select
