Page 4 Enterprise Edge M7100N User Card
Setting up the telephone

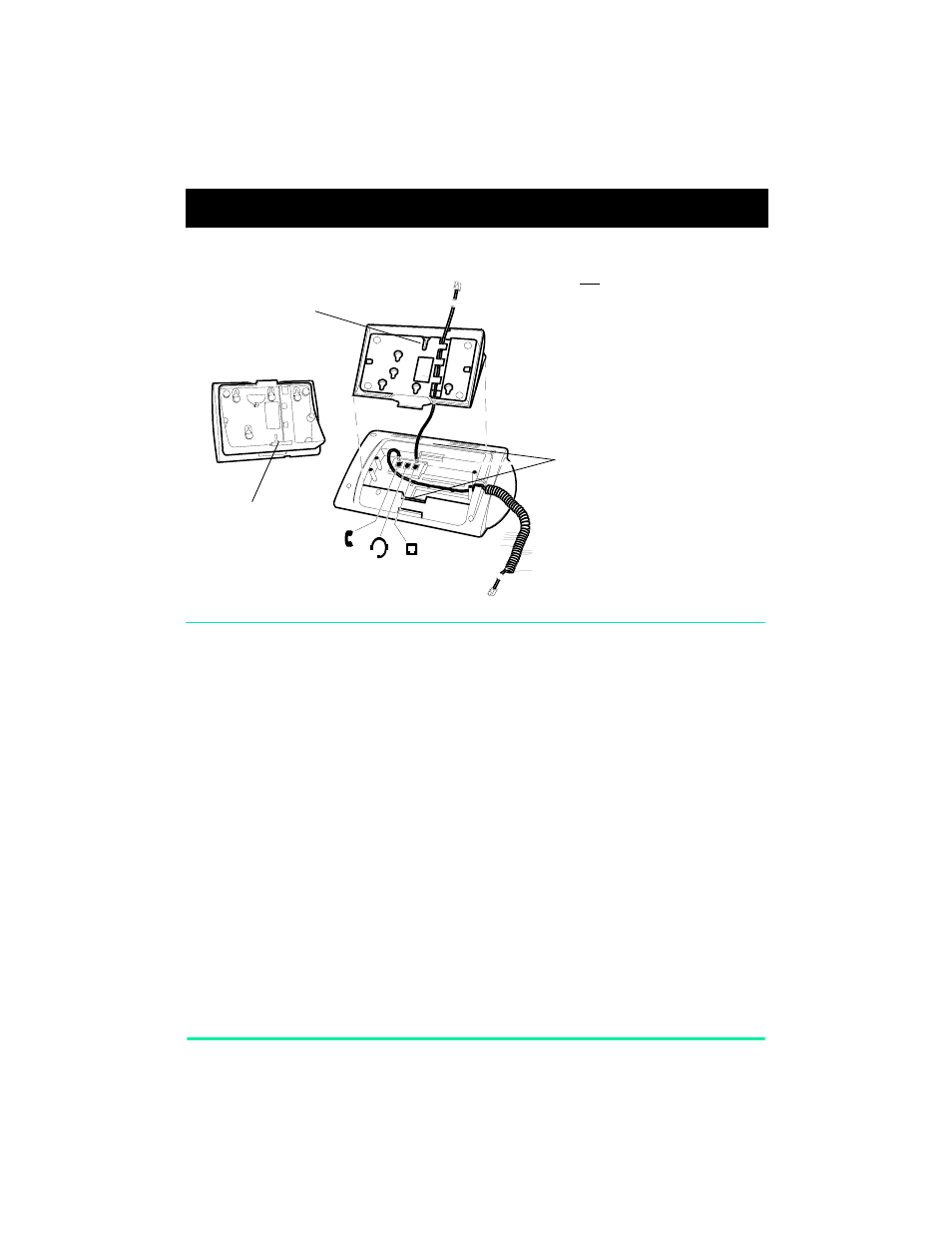

Connecting the cords ATTENTION Before attempting to carry
out any work on the telephone, ensure
that the line cord is unplugged from the
wall socket.
To remove any of the cords, squeeze
the release latch on the plug and gently
pull the plug from the socket.
Connect the handset cord to the jack
labelled with the telephone icon and
route the cord as shown.
Route the line cord through the stand
and connect the cord to the telephone
jack that is marked with the jack icon.
Attach the stand using either pair of
slots; to raise the back of the telephone
to its highest position, use these slots.
Once the above work is complete, plug
the line cord back into its wall socket.
Press here to
remove the stand.
1
Press here firmly
until it clicks, to
attach the stand.
2
