Telephone Display
Your IP Phone 1120E has three display areas:
• The upper display area provides labels for the four user-defined feature keys.
• The middle display area contains single-line information for items such as caller number,
caller name, feature prompt string, user-entered digits, date and time information, and
telephone information.
• The lower display area provides labels for the four soft keys.

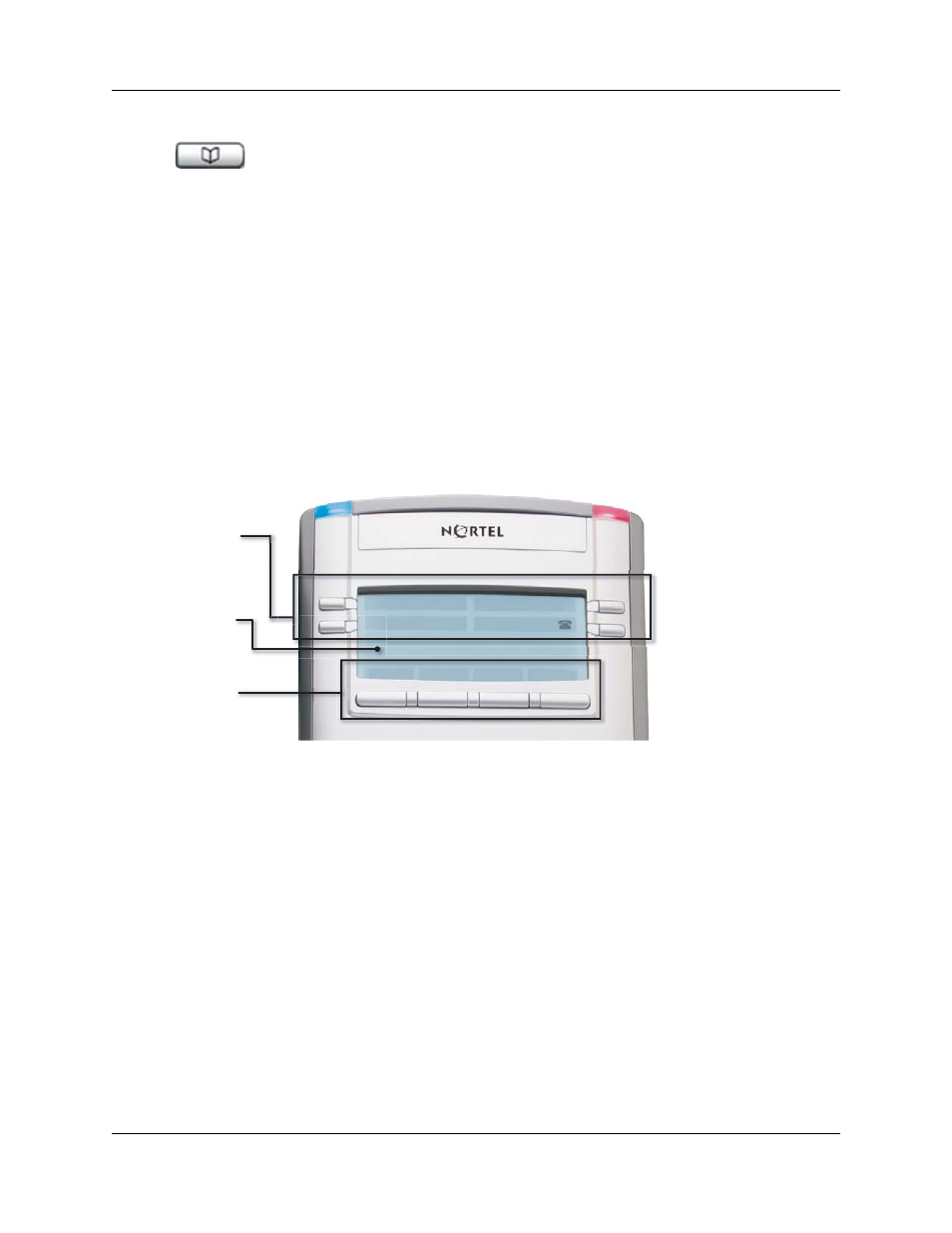

Figure 2 shows an idle LCD screen.
Figure 2 IP Phone 1120E LCD screen
Programmable memory button.
(Default: Blank)
(Directory)
Upper display area
User-defined
feature key labels
Lower display area
Soft keys
Middle display area
Date/time display
Call party information
Feature status information
Options information
Directories information
42888 2348
10/30 4:30pm
AutoDial 47678
Trans Conf Forward More...
