Chapter 2 Installation and Configuration
PXI-1000 User Manual 2-6 © National Instruments Corporation
Installing PXI Modules
Caution Turn off the mainframe power before installing CompactPCI or PXI modules.
Install a module into a mainframe slot by first placing the module’s card
edges into the front module guides (top and bottom), as shown in
Figure 2-2. Slide the module to the rear of the mainframe (making sure that
the injector/ejector handle is pushed down as shown in Figure 2-3). When
you begin to feel resistance, push up on the injector/ejector handle to inject
the card into the frame. Secure the module’s front panel to the mainframe
using the module’s front-panel mounting screws.

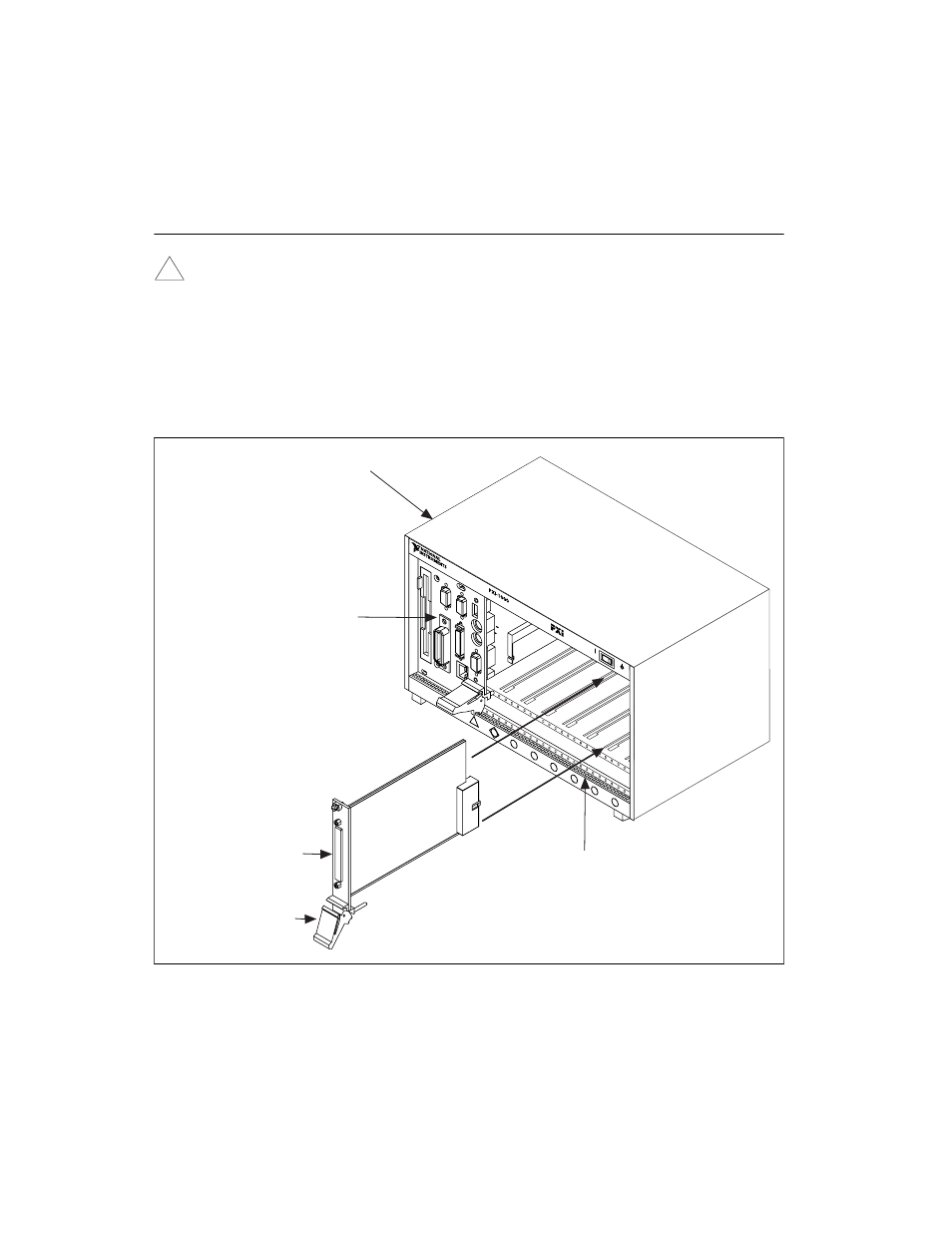

Figure 2-2. Installing PXI or CompactPCI Modules
!
8
7
6
5
4
3
2
1
ON
STANDBY
PXI-8156
System Controller
PXI-1000 Chassis
PXI Board
Injector/Ejector Handle
Injector/Ejector Rail
