Creating and Configuring a RSA SecurID or RADIUS User Group

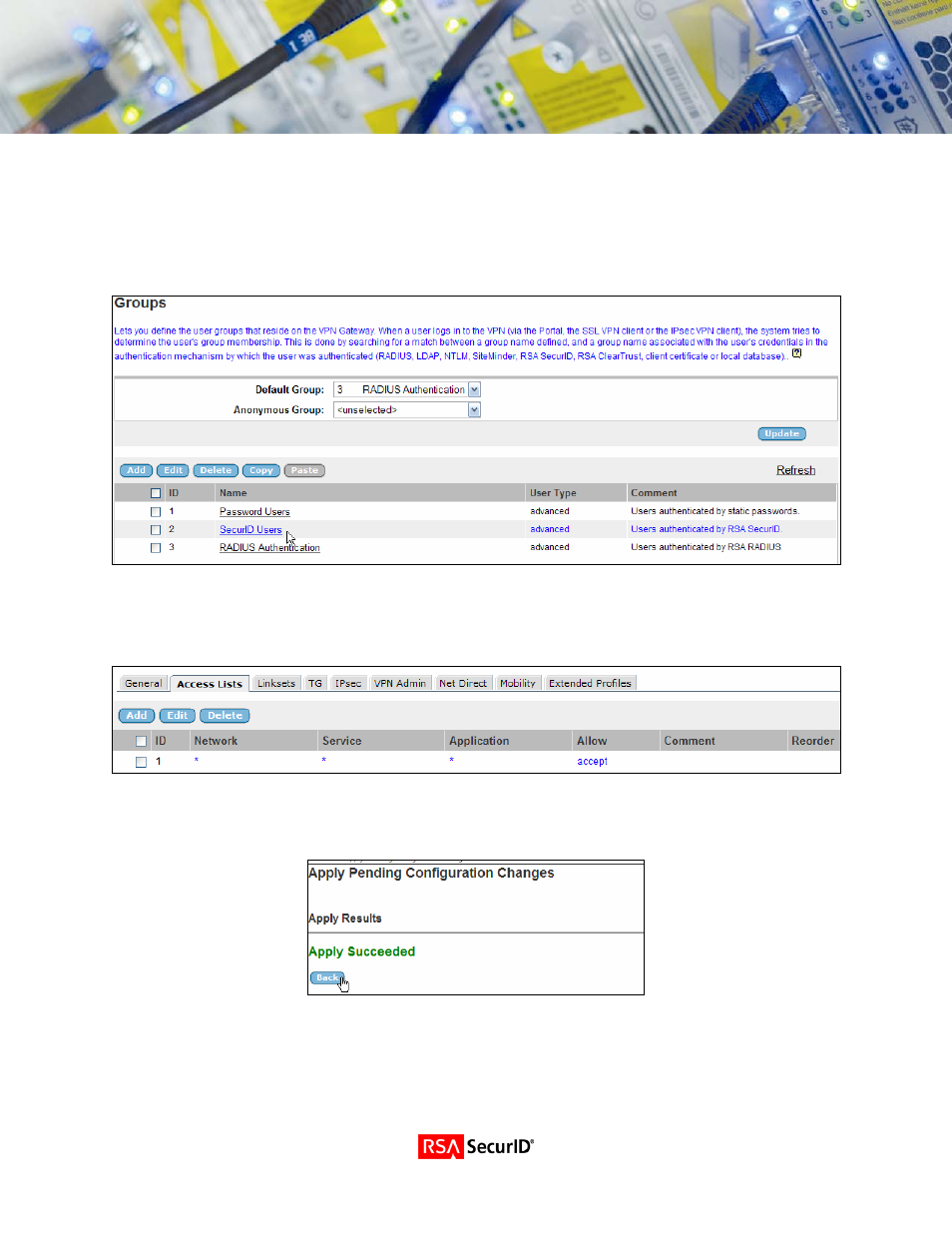

1. From the admin console, expand VPN Gateways and click Add to add a VPN Gateway.
2. Click
Create VPN.
3. Now click on the VPN Gateway you just created and click on Groups.
4. Click on the button Add New Group.
5. Fill out the form with the desired group name, user type and description.
6. Click
Update and then Apply to add the new group to the configuration.
7. From the Groups menu on the administration console, click on the group name.
8. Select the Access List tab.
9. Create an appropriate Access list based on your organizations configuration. In the example below you will
see we have created a generic rule allowing all access for authenticated RSA SecurID or RADIUS users.
10. Click Update to apply the Access rules.
11. Configure the user group for any necessary links or VPN Settings as required.
12. Click Apply to add the new information to the IOS configuration.
