OPTIONAL FEAT U R E S
USING THE MUSICAL CHIME WITH A NUTO N E
RADIO-INTERCOM SYSTEM
If desired, the Musical Chime may be used with a NuTo n e
Radio-Intercom System. The chime signal will override
the radio-intercom but will not mute the music source.
Refer to the wiring diagram below that corresponds with
the radio-intercom system being used. Connect the wires
(use NuTone IW-2) to the Musical Chime's circuit board
terminals located inside the chime's housing.
To adjust the chime's volume so that it will be heard over
the radio-intercom, use a screwdriver to turn the recessed
control located below the I-COM terminals on the circuit
b o a r d .
USING THE MUSICAL CHIME WITH
AN EXTERNAL SPEAKER
If you do not have a NuTone Radio-Intercom System
but would like for the Musical Chime to be heard in another
section of the home, one external speaker may be used with
the Musical Chime. Note: Speaker must be purchased
separately from NuTo n e .
Use a surface-mounted speaker if the Musical Chime
needs to be heard in another room of the home.
Or, if the Musical Chime needs to be heard at the front
door, use a speaker that includes a pushbutton at that
location. NOTE: If a speaker that incudes a pushbutton
is used, the diode must be added to the pushbutton.
Connect speaker terminals to the Musical Chime's circuit
board at SPKR+ and SPKR– inside the chime's housing.
Polarity need not be considered; connect either of the
speaker's terminals to either SPKR terminal on the Musical
C h i m e .

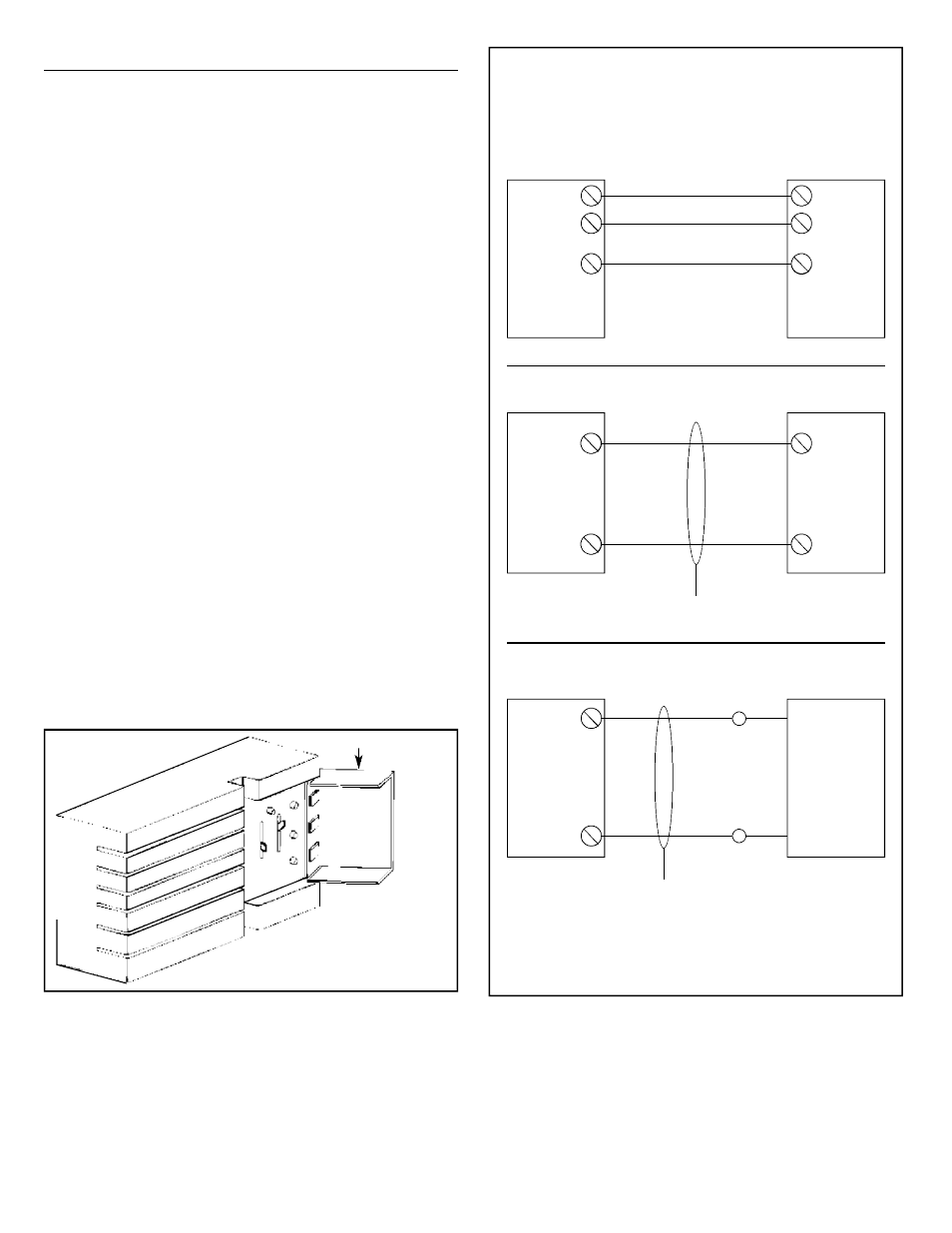

FIGURE 7
D O O R
P L A C E
L A B E L
H E R E
SELECTOR SWITCHES
SET AT 2D,
"JINGLE BELLS"
T O N E
T E M P O
V O L U M E
E
D
C
B
A
5
4
3
2
1
T U N E
T E S T
CHIME INTERCOM WIRING
MODELS IM-3000,
IM/IMA-4000 OR IM-5000
SERIES
MODEL IM-2003
CHIME
IW-2
IW-2
INTERCOM
MASTER
CHIME
INTERCOM
MASTER
I-COM + WHITE
SPKR – BLACK
}
C H I M E
I N P U T
I-COM + INPUT
(COPPER)
(BLUE)
COMMON
(CENTER)
(GREY)
SPKR –
MODEL IMA-516
CHIME
INTERCOM
MASTER
I-COM + CHIME
I-COM – CHIME
SPKR – METAL
CHASSIS
GROUND
SCREW
(RED/WHT
IMA-516)
