Optional
esktop D
Antenna
onnecting the
esktop Antenna
An optional desktop antenna is available for the Ripwave Wireless
Broadband Access Card. This antenna connects to the Card and
then sits on a surface next to the laptop. The laptop should be used
preferably on a desk when the Card is installed. Using the laptop
with the Card close to the body, such as on the lap, is undesirable.
d be used if optimal reception cannot be
btained through the Card antenna. Following is a picture of the

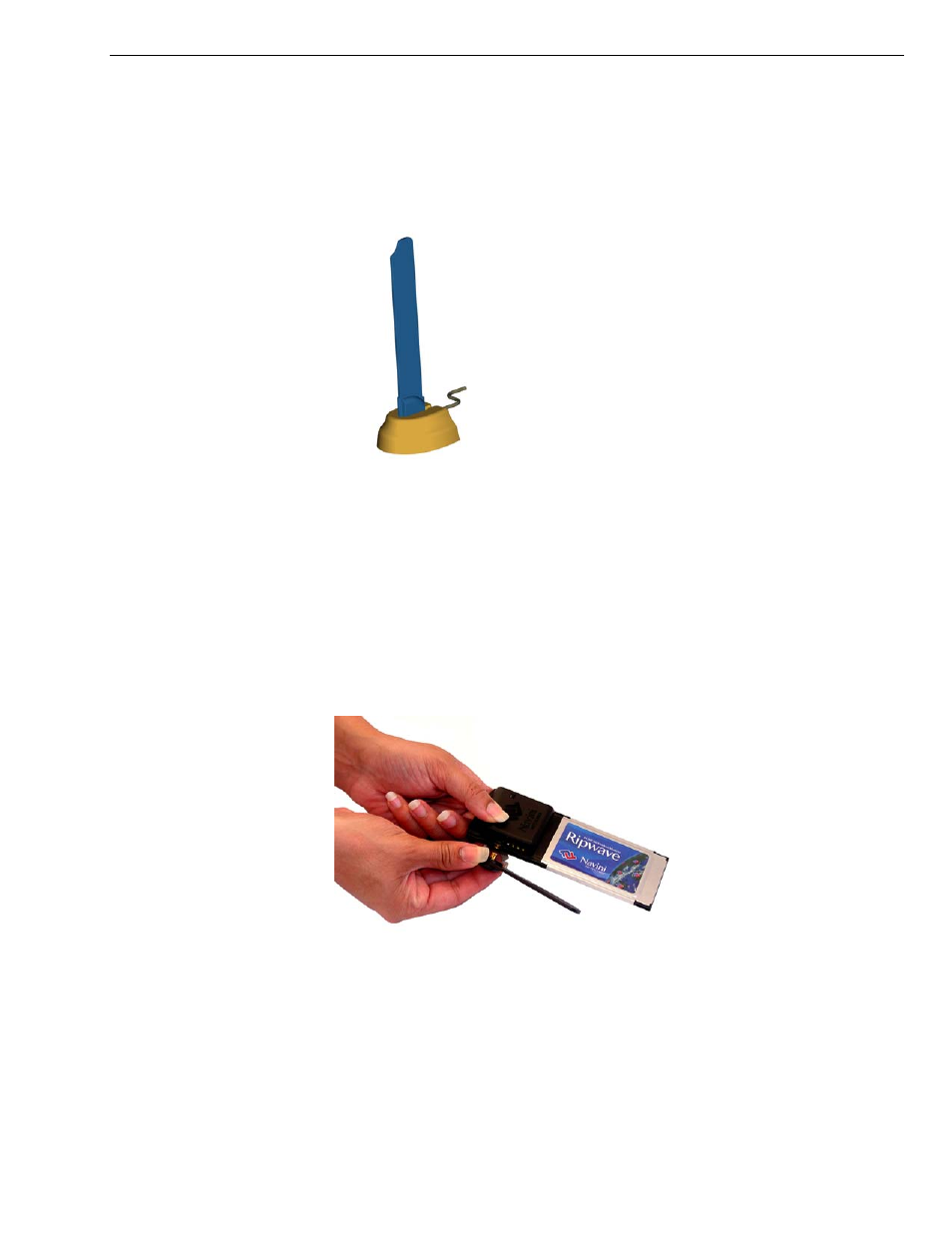

optional desktop antenna.
To connect the desktop antenna to the Card, you must first remove
the antenna attached to the Card. To remove the antenna, turn the
antenna down so that it is lying parallel with the Card. Grasp the
base of the antenna near its connection point and firmly pull the
antenna away from the card.
o not grasp the top or middle of the antenna as it may break when
ou try to pull the antenna away.
nce the Card antenna is removed, connect the desktop antenna by
serting its connector into the port on the Card.
C
D
This antenna shoul
o
D
y
O
in
