NTI UNIMUX SERIES USB DVI KVM SWITCH
3

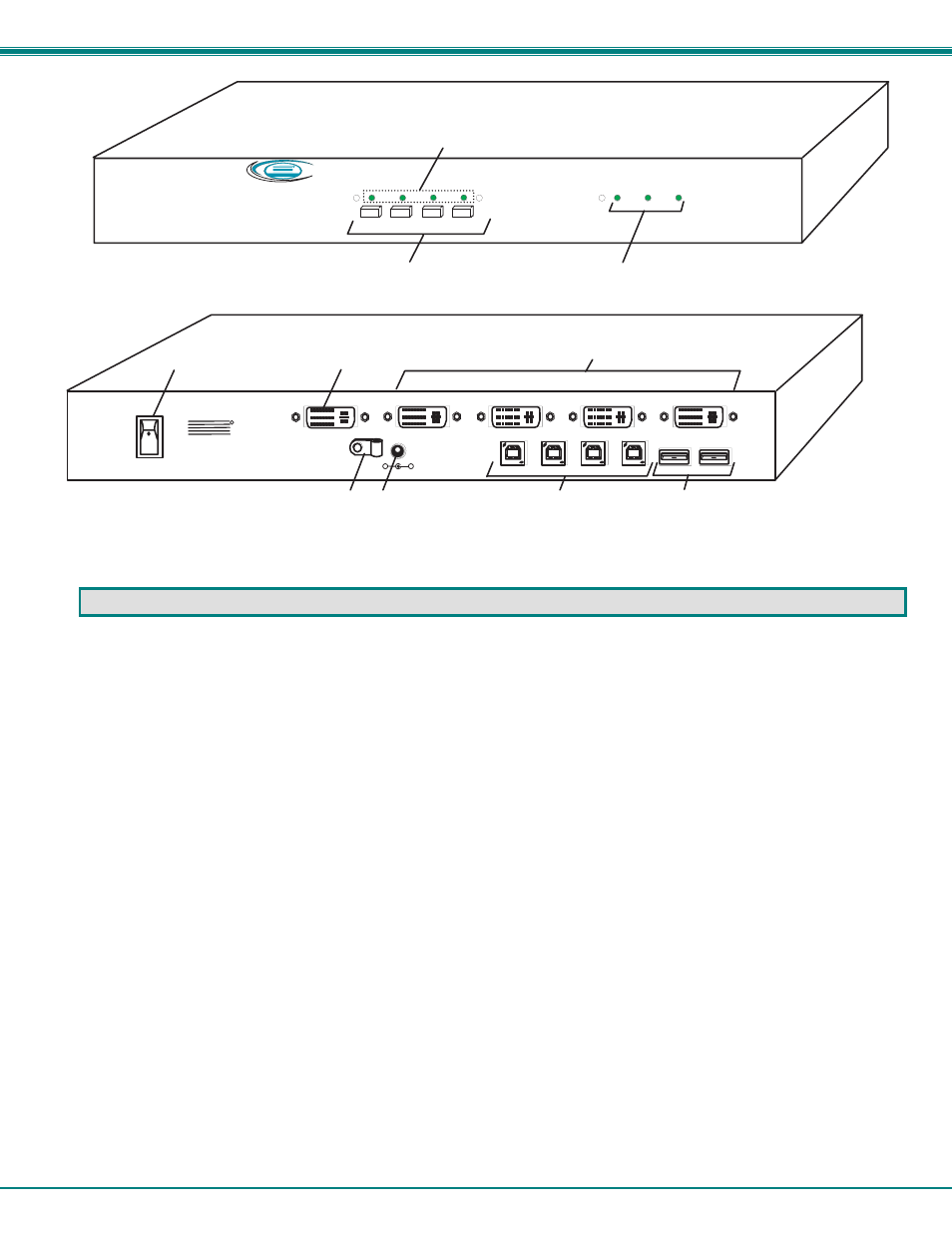

FEATURES AND FUNCTIONS
1. CPU Status LEDs- for visual indication of connection between the user and a specific CPU.
2. CPU Select Switches- push to manually switch to a specific CPU or change the switch operating mode
3. Mode Status LEDs- for visual indication of switch operating mode
4. Power Switch- to power up or power down the UNIMUX
5. MONITOR- DVI-I female connector- for connection of the user video monitor
6. VIDEO-x- DVI-I female connectors- for connecting video cables from CPUs
7. Cable restraint- to secure the AC adapter cable to the UNIMUX
8. 5VDC- power input connector for attachment of the AC adapter
9. CPU x- USB type B female connector-for connection of USB device cable from CPU(s)
10. USB DEVICES- USB type A female connectors- for connection of user USB device(s)
N T I
R
N e t w o r k T e c h n o l o g i e s I n c
S c a n C o m m a n d B r o a d c a s t
1 2 3 4
U N I M U X T M
1
2 3
F r o n t V i e w o f U N I M U X - D V I - 4
4 5
8
R e a r V i e w o f U N I M U X - D V I - 4
U S B D e v i c e s 5 V D C
- +
M o n i t o r V i d e o 4 V i d e o 3
C P U 2 C P U 1
N T I
N E T W O R K
T E C H N O L O G I E S
I N C O R P O R A T E D
T e l : 3 3 0 - 5 6 2 - 7 0 7 0 1 2 7 5 D a n n e r D r
A u r o r a , O H 4 4 2 0 2 w w w . n t i 1 . c o m
R
V i d e o 2 V i d e o 1
C P U 4 C P U 3
+
6
7 9 1 0
