Power-Up Sequence
• The UNIMUX can be powered at any time.
• The CPUs can be powered at any time although if a CPU needs a keyboard and/or mouse at power-ON it should be powered
after connecting to and powering-ON the UNIMUX.
• USB input devices (keyboard and mouse) can be hot plugged to and from the UNIMUX at any time.
Limitations
•
Only USB input device or hub cables can be connected to the UNIMUX at the USB Type A female ports labeled "DEVICES".
(See Features and Functions on page 3, item 10.)
• A USB hub (single or multi-port) can be used provided only USB input devices are plugged into it.
• Only a USB Windows or SUN keyboard or USB mouse may be connected to the USB port on a USB MAC keyboard
• A maximum of 8 input devices may be connected to the UNIMUX either directly or through hubs.
See Fig. 7 for some examples of input device combinations that can be used with the UNIMUX.

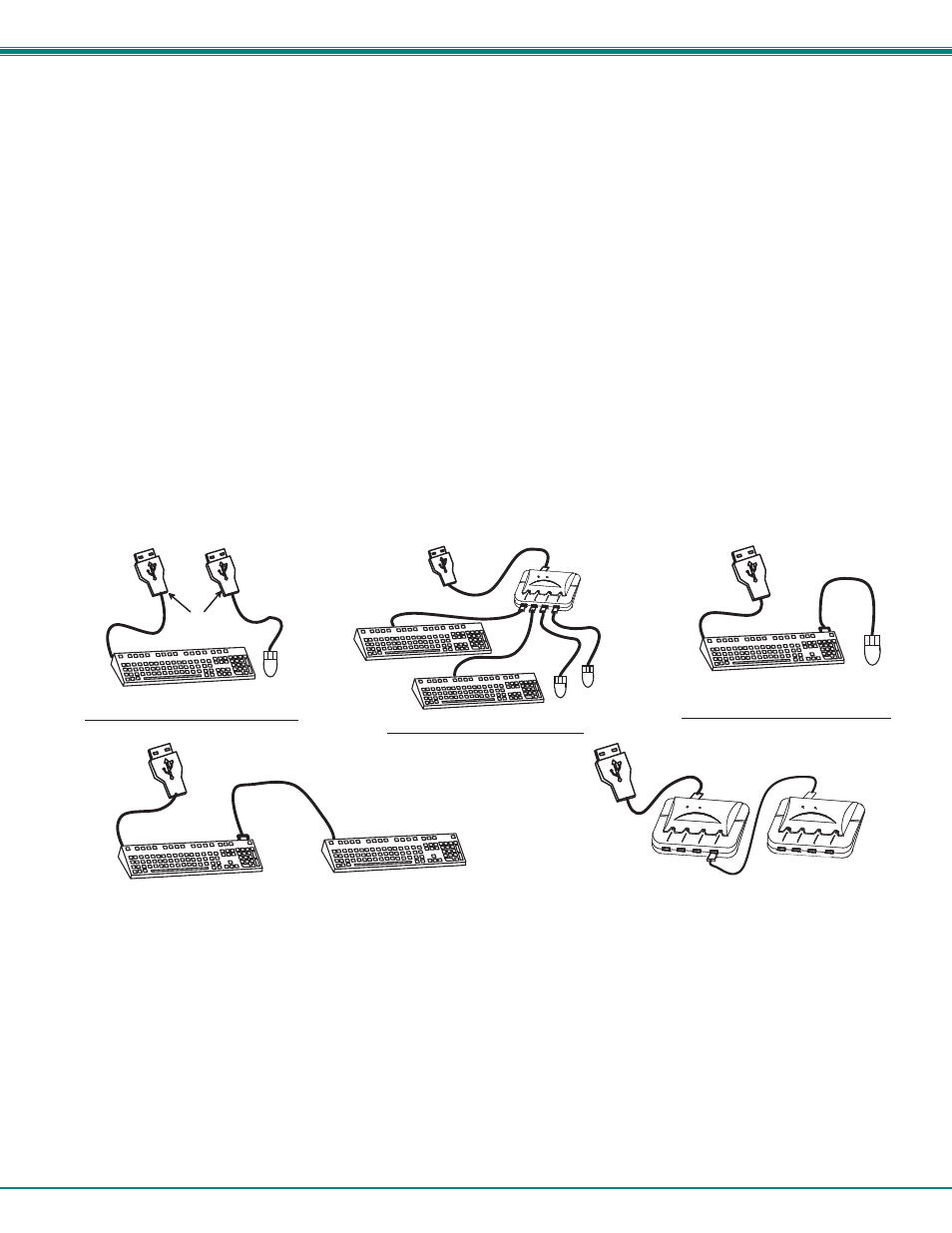

Figure 7- Compatible device combinations
U S B W i n d o w s K e y b o a r d
U S B
M o u s e
U S B T y p e A
M a l e C o n n e c t o r s
U S B M A C K e y b o a r d
U S B
M o u s e
U S B
M o u s e U S B
M o u s e
U S B W i n d o w s K e y b o a r d
U S B W i n d o w s K e y b o a r d
U S B M A C K e y b o a r d
U S B M A C K e y b o a r d
2 U S B h u b s i n s e r i e s ( D a i s y - C h a i n e d )
T y p i c a l I n s t a l l a t i o n - 1 K e y b o a r d , 1 M o u s e
O p t i o n a l - M u l t i p l e k e y b o a r d s a n d m i c e
O p t i o n a l - M A C U S B k e y b o a r d a n d m o u s e
U S B
H u b
