— 7 —
20 STOP
7 / ∞ ∞ ∞ ∞ ∞ button
• Stops the tape. (✈P.14)
• Moves down the cursor when using
the menus. (✈P.11)
21 CH (channel)
5 / ∞ button
Before using this button, press VCR or
TV .
• After pressing VCR , changes the
channels on the VCR. Release at a
desired channel.
For some Philips TV only:
• After pressing
TV , changes the
channels on the TV. Release at a
desired channel.
22 VOL (volume) 5 5 5 5 5 / ∞ ∞ ∞ ∞ ∞ buttons
For some Philips TV only:
Changes the TV volume.
Release at desired volume.
23 CLEAR button
Erases unwanted timer programmes.
(✈P.18)
24 AUDIO/MUTE button
For some Philips TV only:
Turns off the TV sound.

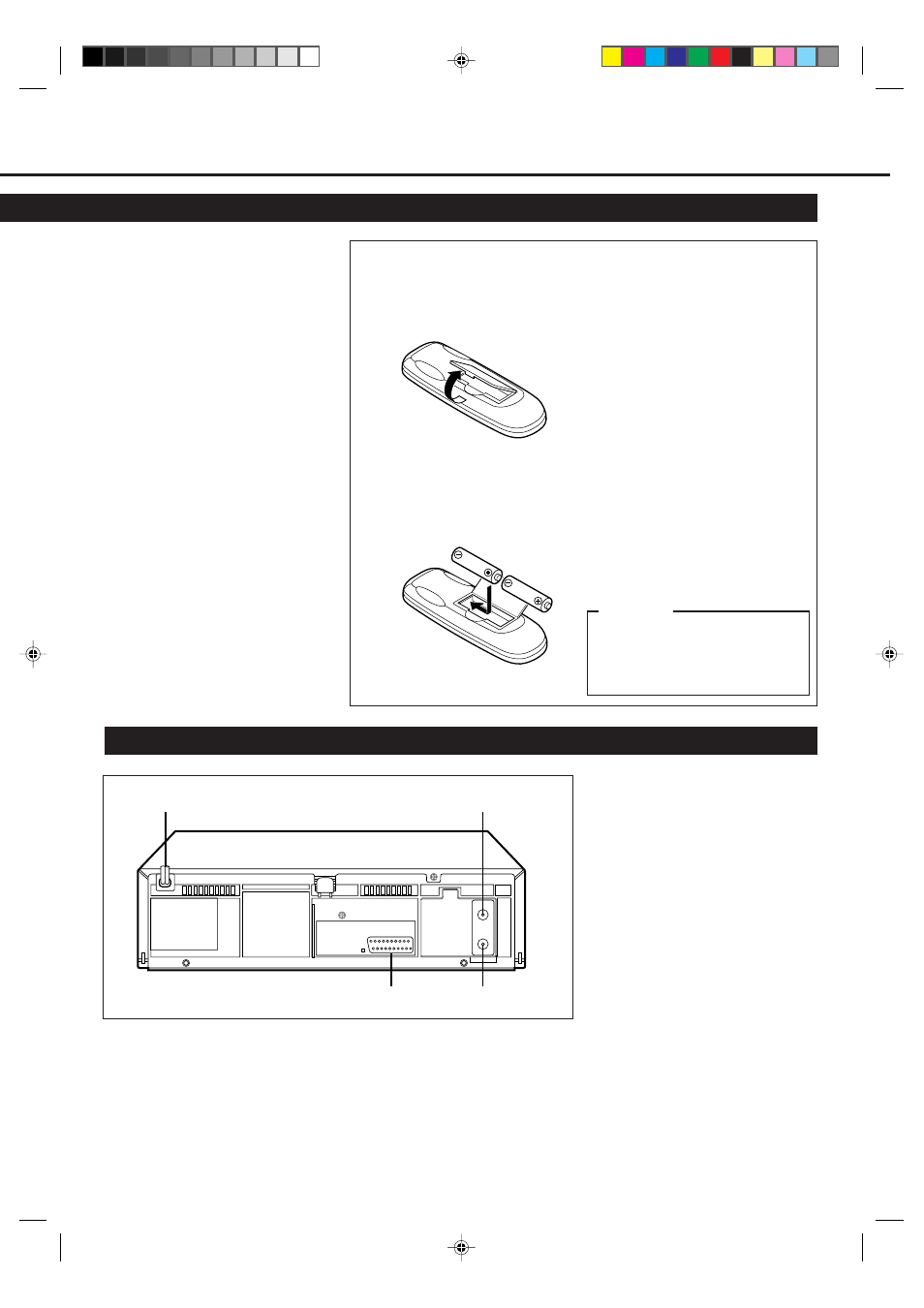

To insert the batteries:
1
Remove the battery compartment lid
from the bottom of the remote
control.
2
Install two batteries —R6(SUM-
3)/AA — matching polarity
indicated inside the battery
compartment.
3
Replace the lid.
CAUTION
On Battery Replacement
Do not mix old and new batteries.
(Also never mix alkaline batteries
with manganese batteries.)
Note:
This remote control and batteries are
supplied accessories.
Check to make sure they are included.
Also, check “Specifications” to see what
other accessories are included.
1 AC (alternating current)
power cord
Connect the AC power cord to an AC
outlet.
Rear Panel
3 AV1 IN/OUT terminal
(SCART)
For connecting to the SCART terminal
(21-pin SCART connector) on TV or
another VCR. (✈P.9. P.19.)
4 RF OUT (output) terminal (to
TV)
Use the supplied RF coaxial cable to
connect this terminal on the TV. (✈P.9)
2 ANT. (antenna) IN (input)
terminal (from Antenna)
Connect your antenna or Cable to this
terminal. (✈P.9)
ANTENNE
SORTIE
RF. OUT
ENTREE
ANT.IN
002
AV1 ENTREE/SORTIE
IN/OUT
1 2
4 3
