V I I . D I S A S S E M B L Y A N D A S S E M B L Y
ASSEMBLY
NOTE: Before attempting assembly, tilt the rear half of the Travel Scooter slightly back on the anti-tip
wheels as shown in figure 23.
1. Use the frame release lever to lift the front section as you align the frame hooks of the front section with the lower
frame tube of the rear section. See figure 23.
2. Once the frame hooks are over the lower frame tube, lower the front section completely. This will engage the
frame lock-up.
3. Raise the tiller and fully tighten the tiller adjustment knob.
4. Reinstall the battery pack.
5. Reinstall the seat and rotate it until it is securely in place.
6. Unlock the front wheel by turning the tiller lock knob 90° counterclockwise. See figure 22.
WARNING! After assembly, make absolutely certain the tiller lock knob is in the unlocked
position before riding your Travel Scooter.

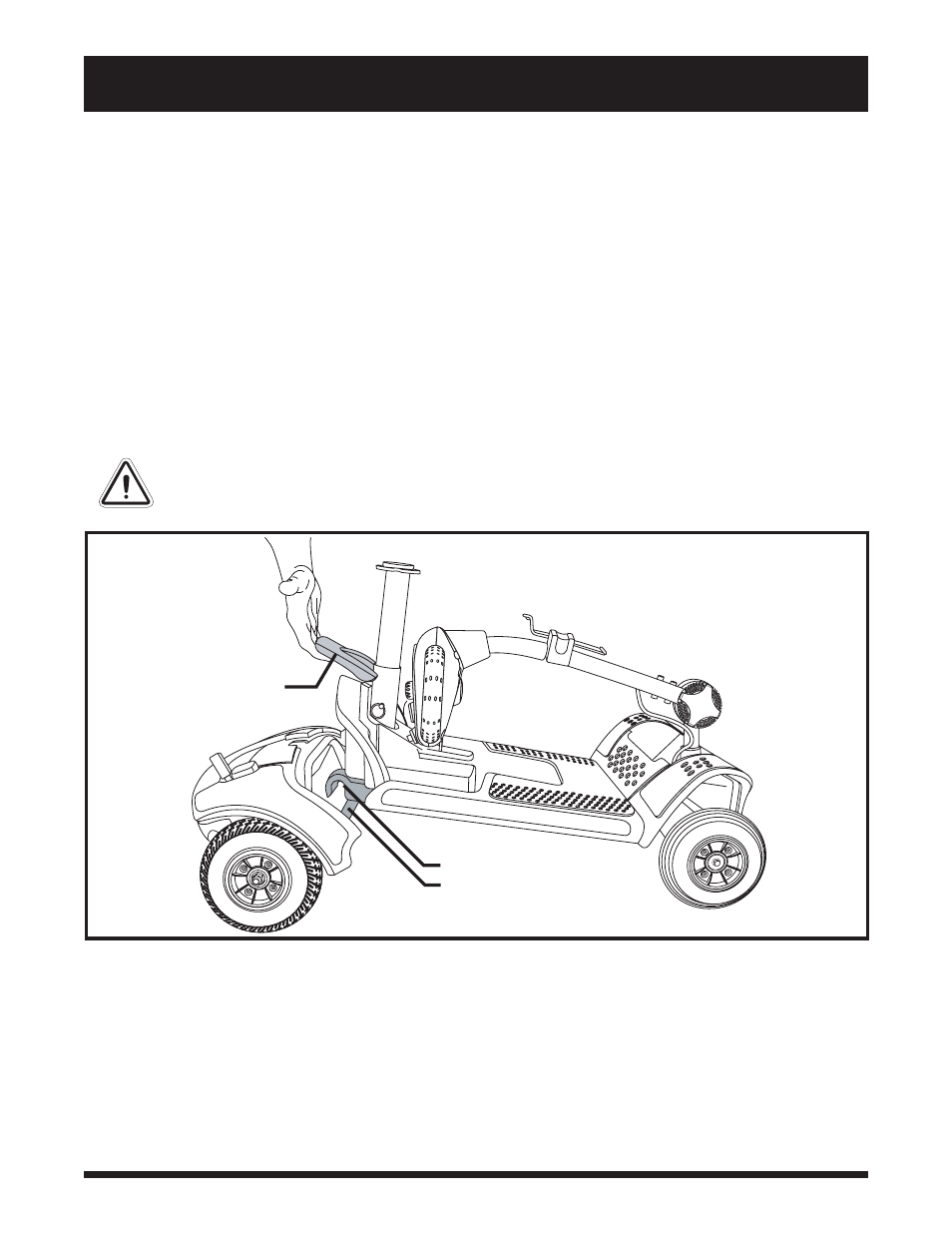

FRAME RELEASE LEVER
FRAME HOOK
Figure 23. Frame Separation
LOWER FRAME TUBE
#
