I I I . Y O U R T R A V E L S C O O T E R
Horn Button
This button activates a warning horn. Your Travel
Scooter must be turned on for the horn to be op-
erational. Do not hesitate to use the warning horn
when doing so may prevent an accident.
Speed Adjustment Dial
This dial allows you to preselect and limit your Travel
Scooter’s top speed.
! The image of the tortoise represents the slowest
speed setting.
! The image of the hare represents the fastest
speed setting.
MANUAL
FREEWHEEL
LEVER
ANTI-TIP WHEELS

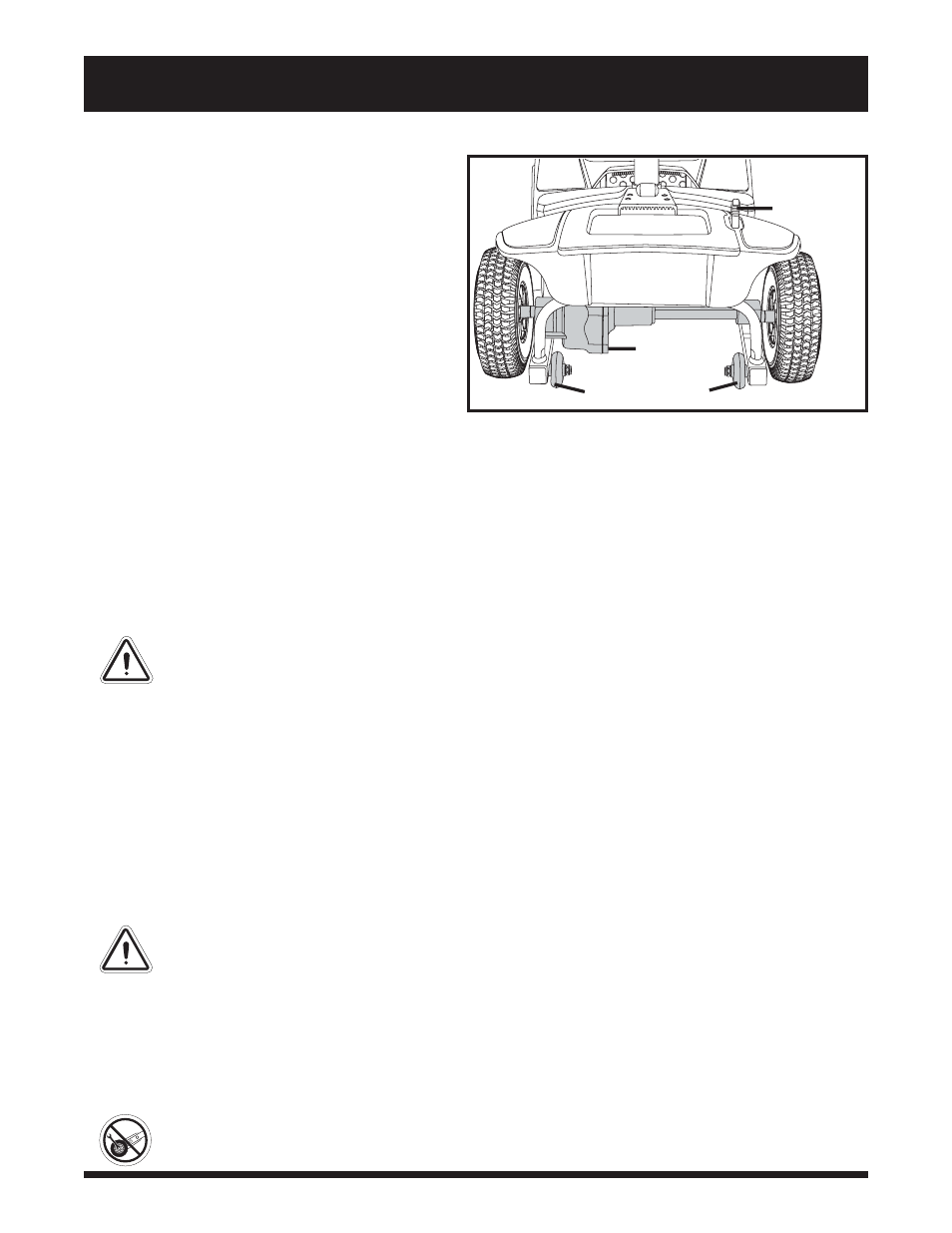

Figure 6. Rear Section
MOTOR/
TRANSAXLE
ASSEMBLY
Battery Condition Meter
When the key is fully inserted into the key switch and turned to the on position, this meter indicates approximate
battery strength. For further information on the battery condition meter, see IV. “Batteries and Charging.”
REAR SECTION
The manual freewheel lever, anti-tip wheels, and motor/transaxle assembly are located on the rear section of your
Travel Scooter. See figure 6.
WARNING! Before placing your Travel Scooter into or taking it out of freewheel mode, remove
the key from the key switch. Never sit on a Travel Scooter when it is in freewheel mode.
Never put a Travel Scooter in freewheel mode on any incline.
Manual Freewheel Lever
Whenever you need or want to push your Travel Scooter for short distances, you can put it in freewheel mode. The
manual freewheel lever is located at the top right of the rear section.
1. Push forward on the manual freewheel lever to disable the drive system and the brake system. You may now
push your Travel Scooter.
2. Push rearward on the manual freewheel lever to reengage the drive and the brake systems; this takes your
Travel Scooter out of freewheel mode.
WARNING! When your Travel Scooter is in freewheel mode, the braking system is
disengaged.
! Disengage the drive motors only on a level surface.
! Ensure the key is removed from the key switch.
! Stand to the side of the Travel Scooter to engage or disengage freewheel mode.
Never sit on a Travel Scooter to do this.
! After you have finished pushing your Travel Scooter, always return it to the drive mode
to lock the brakes.
Anti-Tip Wheels
The anti-tip wheels are an integral and important safety feature of your Travel Scooter. They are bolted to the frame
at the rear of the Travel Scooter.
PROHIBITED! Do not remove the anti-tip wheels or modify your Travel Scooter in any way
that is not authorized by Pride.
