What type and size of battery should I use?
Your Travel Scooter requires two deep cycle batteries. We recommend only sealed, maintenance-free types such
as AGM or Gel-Cell. Do not use wet-cell batteries, which have removable caps. Refer to the specifications table
for size as batteries differ depending on manufacture.
WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel-
Cell batteries to reduce the risk of leakage or explosive conditions.
NOTE: Sealed batteries are not serviceable. Do not remove the caps.
How do I change a battery in my Travel Scooter?
MANDATORY! Battery posts, terminals, and related accessories contain lead and
lead compounds. Wear goggles and gloves when handling batteries and wash
hands after handling.
WARNING! Always use two batteries of the exact same type, chemistry, and amp-
hour (Ah) capacity. Refer to the specifications table in this manual and in the
manual supplied with the battery charger for recommended type and capacities.
WARNING! Do not mix old and new batteries. Always replace both batteries at the
same time.
WARNING! Contact your Pride Provider if you have any questions regarding the batteries
in your Travel Scooter.
WARNING! Do not replace the batteries while the Travel Scooter is occupied.

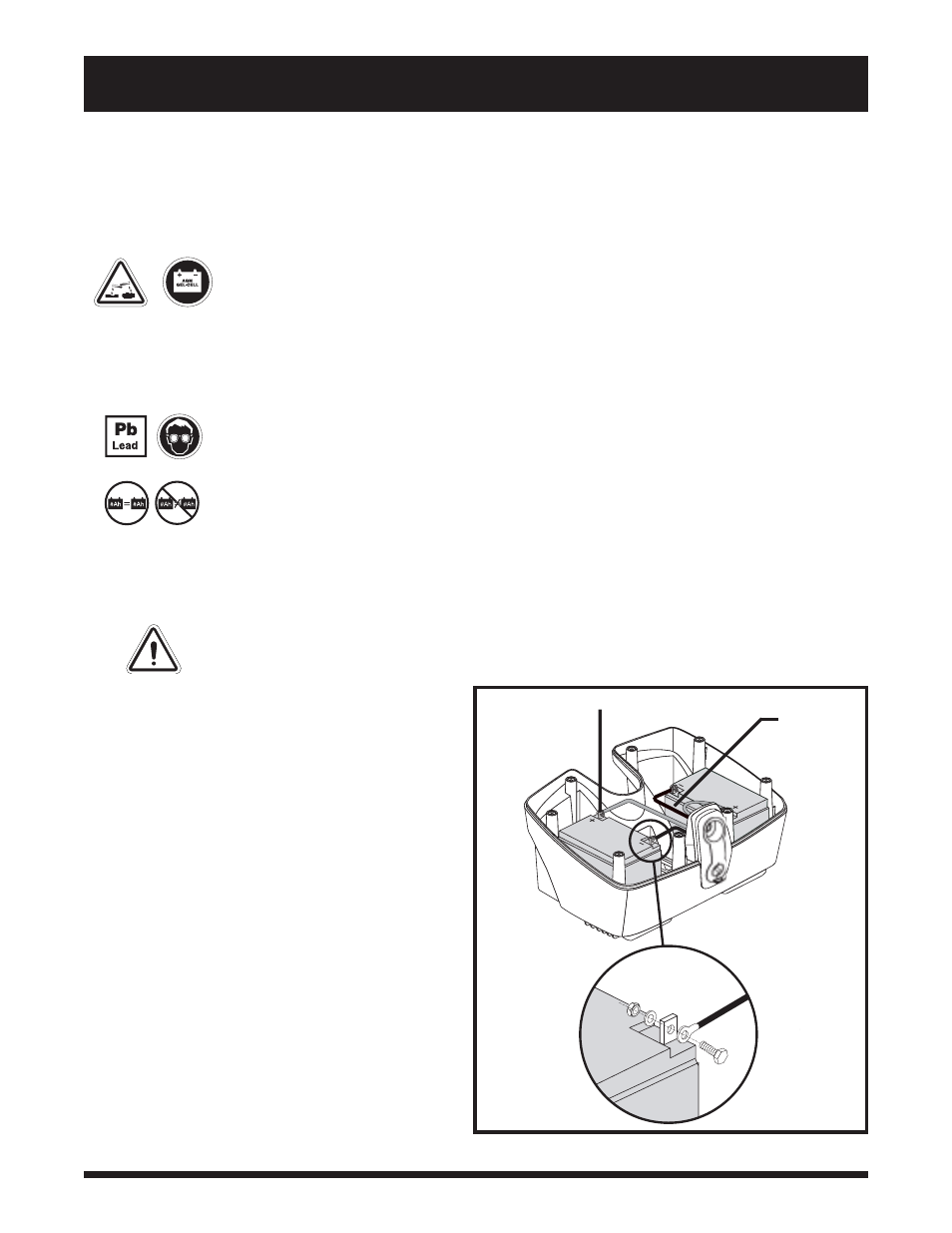

Figure 15. Battery Replacement
BATTERY TERMINAL
BATTERY
CABLES
WARNING! The batteries
on your Travel Scooter
should only be serviced or
replaced by an authorized
Pride Provider or a
qualified technician.
1. Remove the battery pack from the Travel Scooter.
2. Carefully turn the pack upside down.
3. Remove the eight (8) screws from the perimeter of
the battery pack.
4. Carefully turn the pack right side up and remove
the lid.
5. Disconnect the black (-) and red (+) battery cables
from the battery terminals of each battery. See fig-
ure 15.
6. Remove the old batteries.
7. Place the new batteries in the battery pack.
8. Connect the red battery cables to the positive (+)
battery terminals of each battery.
9. Connect the black battery cables to the negative
(-) battery terminals of each battery.
