3 FUNCTIONAL OVERVIEW
3.1 Front Panel of the Hi-Q
See Operator Functions (Section 8) for details regarding front panel controls.

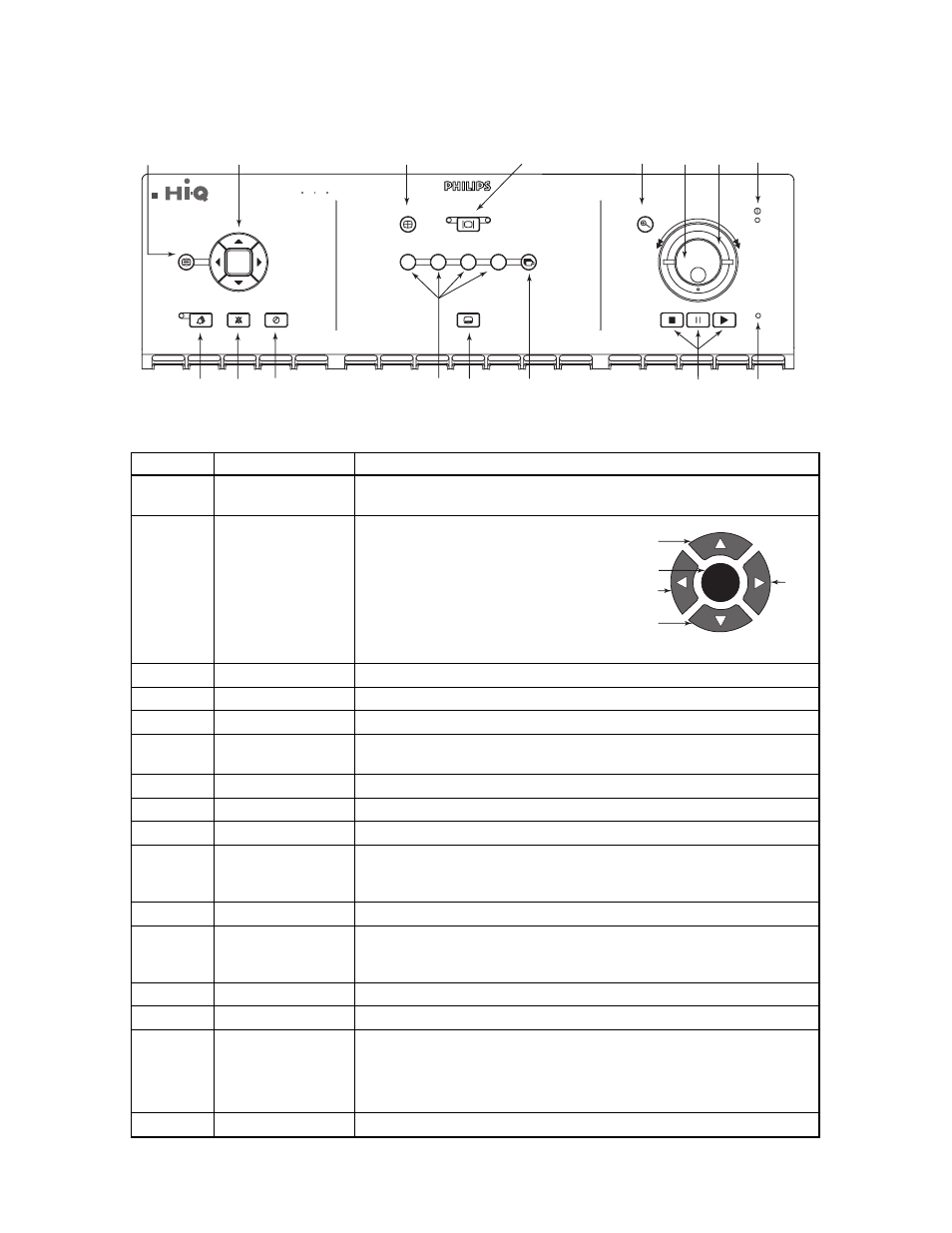

Figure 3.1 Front Panel of the Hi-Q
10
Menu
OK
Alarm List Alarm Clear 1-Touch Alarm
1 2 4 3
Quad A Monitor B
OSD Mode
Sequence
Zoom
Stop Pause Play Record
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
Digital Video Recorder
Ref Name Description and Use
1 Menu • Displays main menu on MON A
• Exits the menu from any level
2 Navigation OK button:
• Confirms selection
• Activates submenus
• Edits field values
Up, Down, Left, Right buttons:
• Navigates within menus
• Enters text and field values
• Digital PTZ control
3 Quad Switches MON A to quad view
4 Monitor Toggles control between MON A and MON B
5 Zoom Digitally zooms paused or recorded video 2X or 4X
6 Jog • Scrolls through menu text / values
• Frame advance
7 Shuttle Forward and reverse playback speed adjustment (outside shuttle ring)
8 Power LED Indicates that the system has power
9 Alarm List Displays alarm list, newest first (LED is lit when there are noncleared alarms)
10 Alarm Clear • Acknowledges all active alarms, silences beeper, stops flashing alarm
icons on MON A, and ends sequencing of alarm video on MON B
• Resets active relays to nonalarm state
11 1-Touch Alarm Triggers alarm recording of all channels enabled for 1-Touch Alarm
12 Camera Display • 1, 2, 3, and 4 buttons display video from the selected camera
• Used for password entry
• 1, 2 used for Alarm List navigation (1 jumps to first page; 2 jumps to last page)
13 OSD Mode (On-screen Display) Toggles screen data on or off
14 Sequence Displays all cameras sequentially on selected monitor
15 Video Playback Stop: Stops playback video; press twice to return to live mode
Pause: Pauses live and recorded video
Play: Presents playback search screen (If playback video was paused,
normal speed is resumed)
16 Record LED Indicates the unit is recording
OK
Enter/Return
Up
Left
Down
Right
