3088 (near-end). However the local 3088 (near-end) is unable to
receive this message and the local 3088 (near-end) does not know to
terminate the RCS. For this reason, the DSL link must be dropped and
re-established. At this point, the RCS can be established anew.

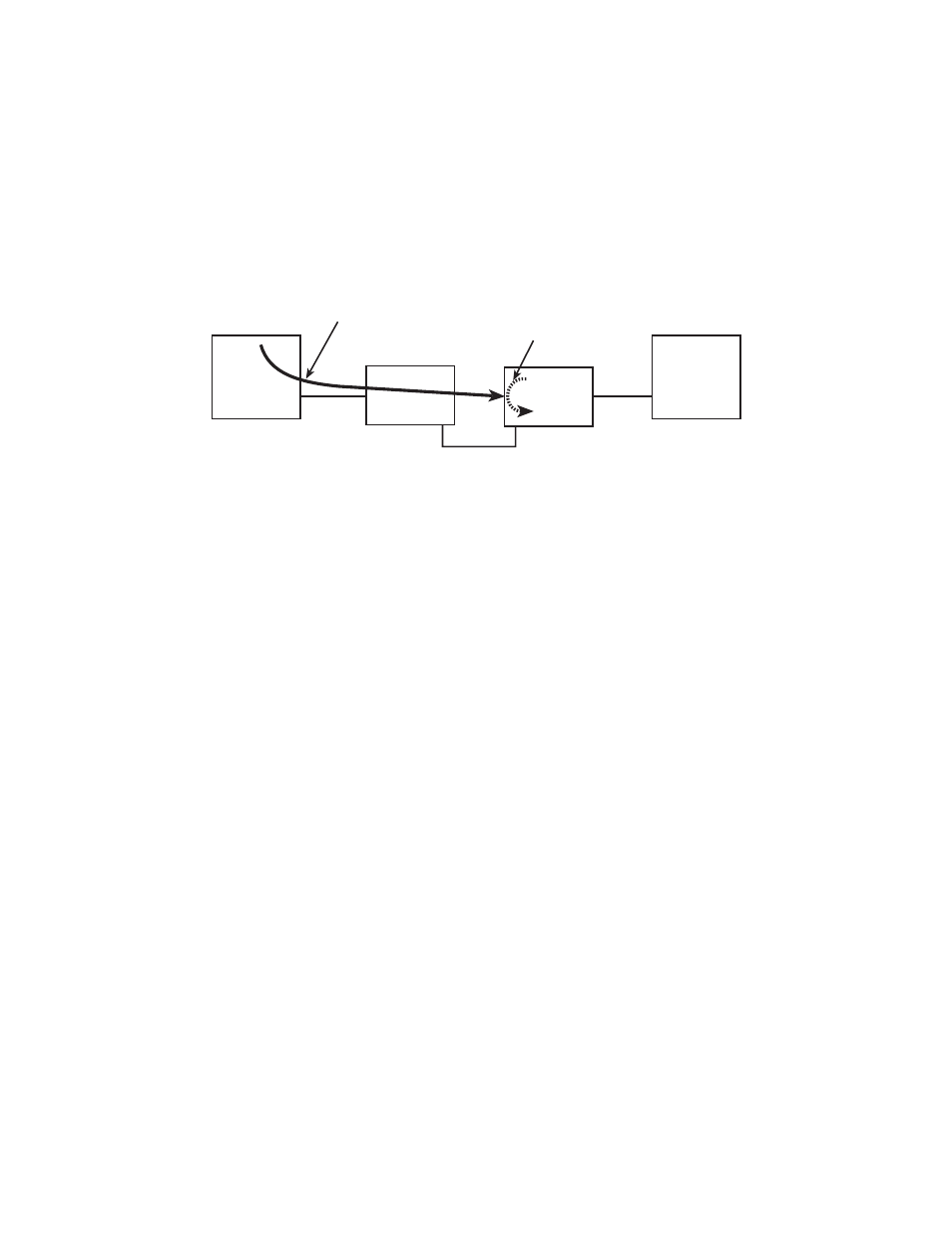

Figure 17. Remote control session with LAL diagram
• Restarting the dsl link will disconnect the remote console session.
Whether a DSL link is up or not has no effect on the operation of the
local console session.
PC
(Near End) 3088
(Near End)
RS-232
Remote Console Session (RCS)
3088
(Far End)
DSL
PC
(Near End)
RS-232
LAL
