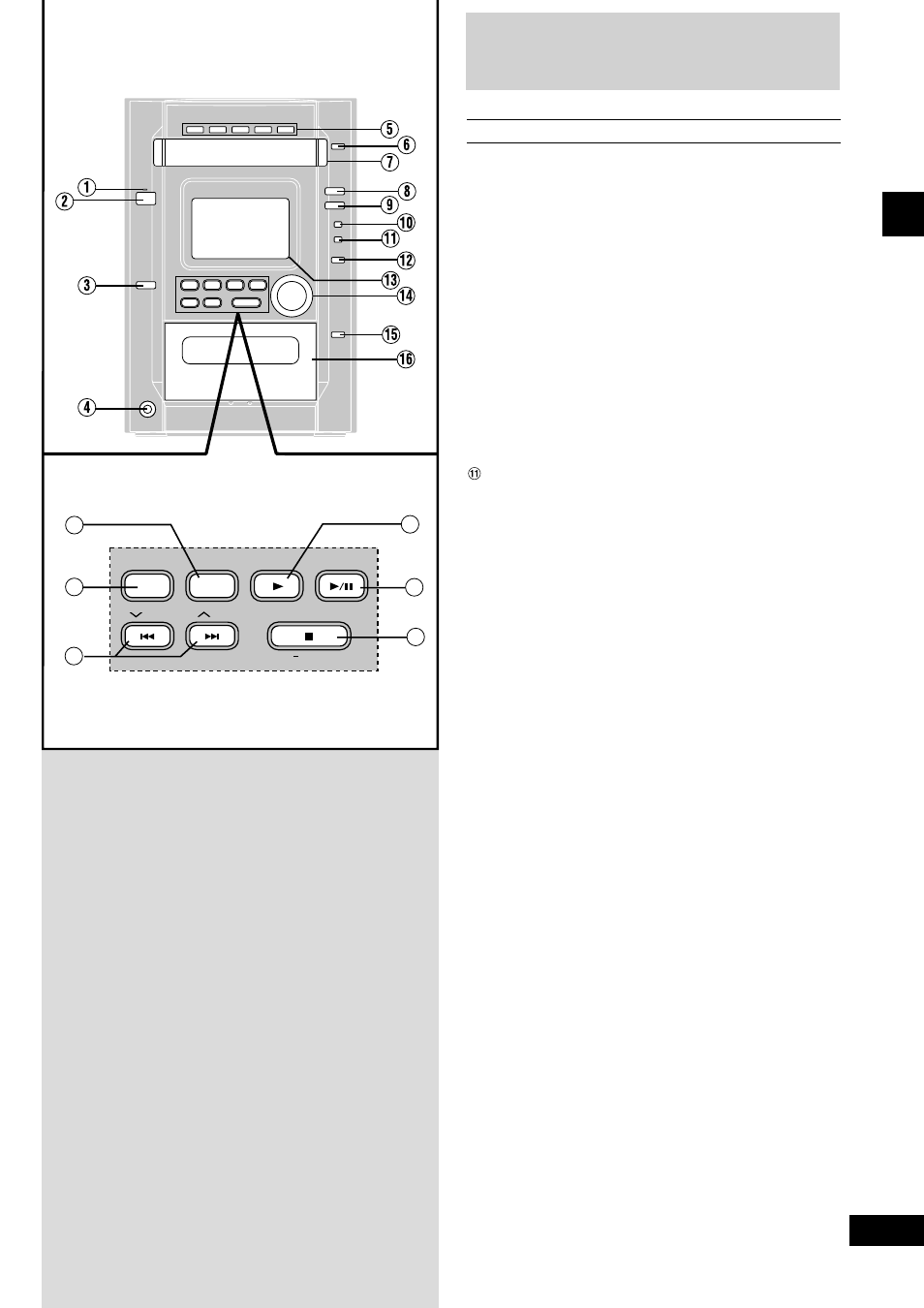

Location of controls
No. Name Ref. page
1 AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC power
supply.
2 Standby/on switch ( f /I, POWER)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
3 Record button ( a REC) ............................................. 17
4 Headphone jack (PHONES) ...................................... 22
5 Disc direct play buttons (CD 1 ~ CD 5) ..................... 9
6 Disc tray open/close button ( c OPEN/CLOSE) ........ 9
7 Disc tray
8 Digital input, PCM FIX mode select button and
indicator (DIGITAL INPUT 1/2) .......................... 20, 27
9 Dolby Pro Logic button and indicator ( p PL) ....... 20
! Super sound EQ button (SUPER SOUND EQ) ........ 18
Preset EQ select button (PRESET EQ) ................... 18
# Subwoofer button and indicator
(SUBWOOFER) ...........................................................18
$ Display
% Volume control (VOL) ................................................. 9
& Cassette holder open button ( c OPEN) ................. 15
( Cassette holder .......................................................... 15
) Tuner/band select button (TUNER, BAND) ............. 13
~ AUX 1/2 button (AUX 1/2) .......................................... 27
+ CD skip/search, tape fast-forward/rewind, tune/preset
channel select, time adjust buttons
(
g , 3 /REW, f , 4 /FF) ...................... 9, 13-15, 23
, Tape play button ( : TAPE) ..................................... 15
- CD play/pause button ( : / J CD ) ............................... 9
. Stop/program clear and demonstration button
(
L STOP, –DEMO) ..................................... 9, 11, 15, 23
