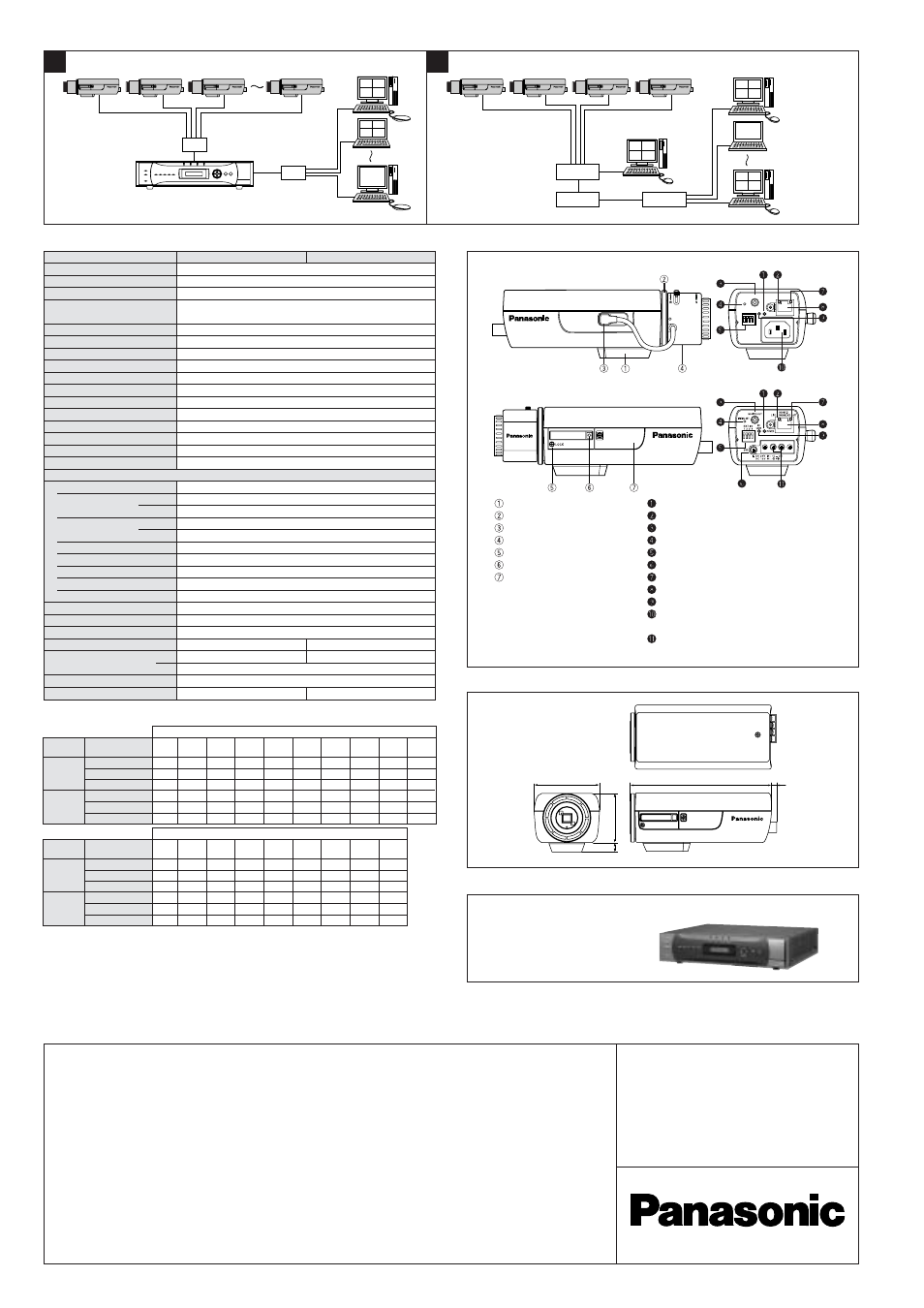

Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• Microsoft, Windows and WindowsXP are registered trademarks of Microsoft Corporation.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
158 5.5 72
10
55
Tripod Mount Base
Back Focus Adjusting Ring
ALC Lens Connector
Lens (option)
Focus Fixing Screw
Microphone
SD MemoryCard Slot Power Indicator (green)
Link Indicator
Monitor Out Connector
INITIAL SET Button
External I/O Terminals
Ground Terminal
Access Indicator
Network Connector
SD MemoryError Indicator (red)
AC Inlet 220 V - 240 V 50 Hz
(onlyfor the WV-NP240)
AC 24 V/DC 12 V Power Cable Terminals
(onlyfor the WV-NP244)
INITIAL SET
POWER
220V - 240V - 50Hz
10BASE-T/ 100BASE-TX
SD CARD
MONITOR OUT
EXT I/O 1 2 3 4
LINK ACT
WV-NP244
WV-NP240
L2 Switch
L2 Switch
PC
Network Disk Recorder
WJ-ND300
PC
PC
HUB
HUB ROUTER
Network Security Colour Cameras WV-NP240 Series x 4 Network Security Colour Cameras WV-NP240 Series x 16 Camera images are
browsed on PCs via
a remote network.
Camera images are browsed
on a PC via the same network.
OPTIONAL COMPONENT
Frame Rate Chart
APPEARANCE
SYSTEM EXAMPLES
MAJOR OPERATING CONTROLS & TERMINALS
Unit : mm
Network Disk Recorder
WJ-ND300
Model No. WV-NP240 WV-NP244
Pick Up Device Progressive scan type CCD image sensor
Scanning Area 5.79 (H) x 4.89 (V) mm
Video Output VBS 1.0 V [p-p] / 75 Ω, composite signal, 3.5 mm mini jack
Minimum Illumination 1.1 lux colour imaging at optional F1.2 lens
1.5 lux colour imaging at optional F1.4 lens
ALC Lens Drive DC servo
Lens Mount CS-mount
AGC ON (always)
Electronic Shutter AUTO
Electronic Sensitivity Up OFF, AUTO (2x, 4x, 6x, 8x and 16x)
White Balance Auto / Hold
Electronic Zoom 1x, 1.5x, 2x, 2.5x and 3x
Motion Detector ON / OFF
SD Memory Card (optional) 64MB, 128MB, 256MB, 512MB and 1GB by Panasonic SD Memory Card
FTP Client Alarm image transfer, FTP periodic transfer
Multi Screen 8 screens (4 screens x 2 groups)
External Input Terminals Alarm input/output, AUX output
Network Section
Network 10Base-T / 100Base-TX, RJ45 connector
Image Resolution JPEG VGA (640 x 480), QVGA (320 x 240) max. 30 fps
MPEG-4 VGA (640 x 480), QVGA (320 x 240) max. 30 fps
Image Compression JPEG 10 level adjustment, Pull/Push mode
MPEG-4 (Image Quality / Normal / Moving Image) selectable, unicast / multicast
Image Refresh Rate 0.1 fps ~ 30 fps
Traffic Control 64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps and unlimited
Internet Protocol TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP and SNMP
OS Windows 2000 Professional SP4, Windows XP Home / Professional SP2
Applicable Browser Internet Explorer 6.0 Service Pack2
Ambient Operating Temperature –10 °C ~ +50 °C
Ambient Operating Humidity Less than 90 %
Power over Ethernet Yes (IEEE802.3af)
Power Supply 220 V - 240 V 50 Hz or PoE (48 V DC) 24 V AC 50 Hz, 12 V DC or PoE (48 V DC)
Power Consumption (approx.) 5.0 W (220 V - 240 V 50 Hz) 4.8 W (24 V AC 50 Hz, 12 V DC)
PoE 4.2 W
Dimensions (W x H x D) 72 x 65 x 158 mm
Weight (approx.) 470 g 450 g
SPECIFICATIONS
1 2
JPEG Image Settings
Resolution
VGA
(640 x 480)
QVGA
(320 x 240)
Mode
Image Size (KB)
Frame Rate (fps)
Bit Rate (Mbps)
Image Size (KB)
Frame Rate (fps)
Bit Rate (Mbps)
0
Super Fine
128
10
10.2
44
26
9.2
1
Fine
96
14
10.8
40
28
9.0
2
80
17
10.9
36
30
8.6
3
64
21
10.8
32
30
7.7
4
56
24
10.8
28
30
6.7
5
Normal
48
30
11.5
24
30
5.8
6
40
30
9.6
20
30
4.8
7
32
30
7.7
16
30
3.8
9
Low
24
30
5.8
12
30
2.9
8
28
30
6.7
14
30
3.4
MPEG-4 MPEG-4 Bit Rate Settings
(fps)
(above figures are approximate, actual figures may differ depending on the network under the conditions.)
Resolution
VGA
(640 x 480)
QVGA
(320 x 240)
Mode
Low
Normal
Fine
Low
Normal
Fine
4,096
kbps
30
30
27
30
30
30
3,072
kbps
30
30
22
30
30
28
2,048
kbps
30
30
19
30
30
28
1,536
kbps
25
22
13
30
29
28
1,024
kbps
22
14
9
30
28
27
512
kbps
10
8
4
28
24
12
256
kbps
5
3
1.5
24
12
5
128
kbps
2
1
0.5
10
4
2
64
kbps
1
0.4
0.2
4
1.5
0.5
