15
Inst
a
lling Y
o
ur
Mac
h
in
e
Installing the Drum Unit/Toner Cartridge Assembly

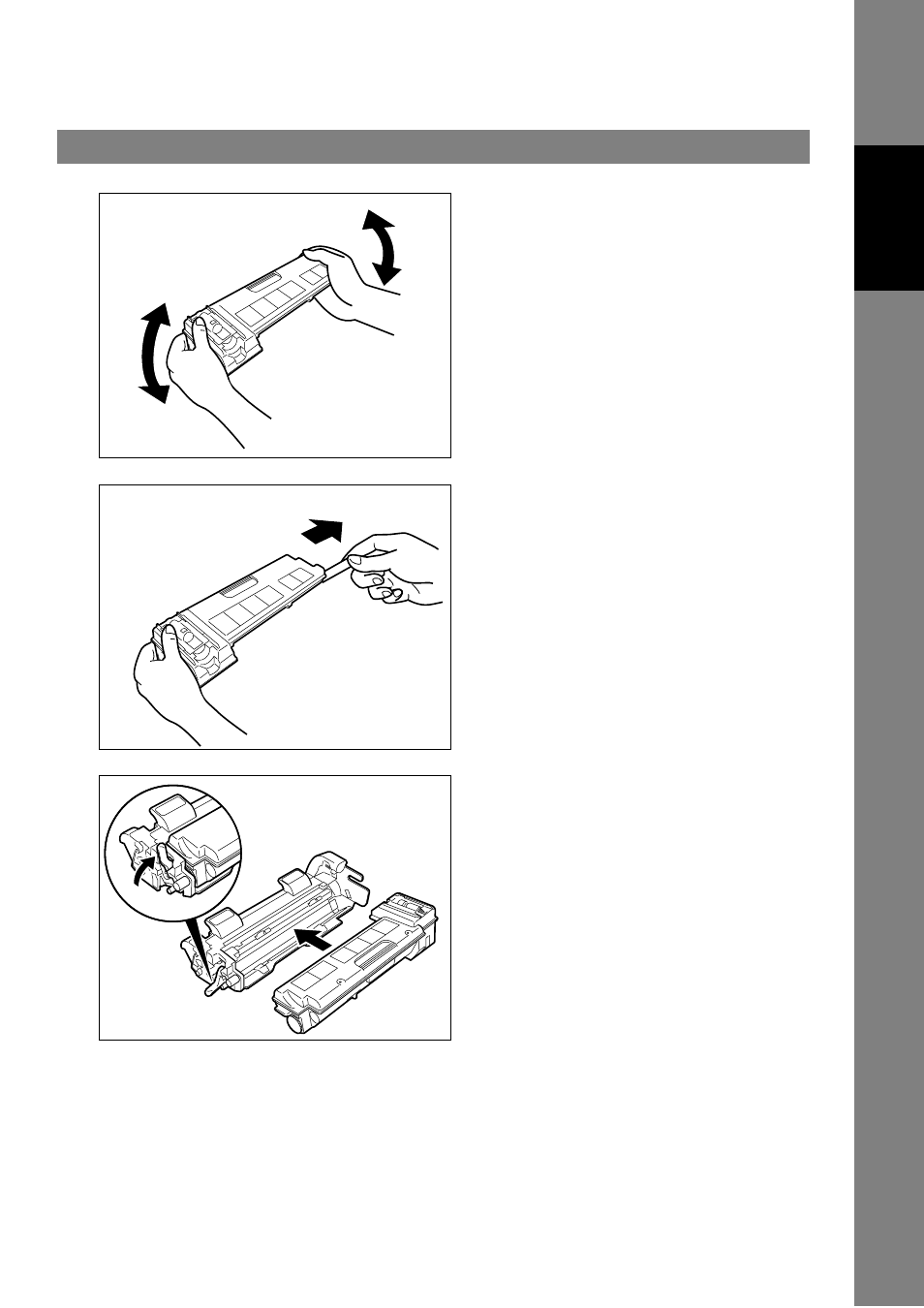

1 Unpack the Toner Cartridge and rock it back
and forth as shown for 5 or 6 times to even the
toner inside.
2 Remove the protective seal.
Note: Pull on the seal slowly and straight
out.
3 Slide the Toner Cartridge all the way into the
Drum Unit and rotate the green lever upwards
to lock the Toner Cartridge in place.
Continued on the next page...
