Jams

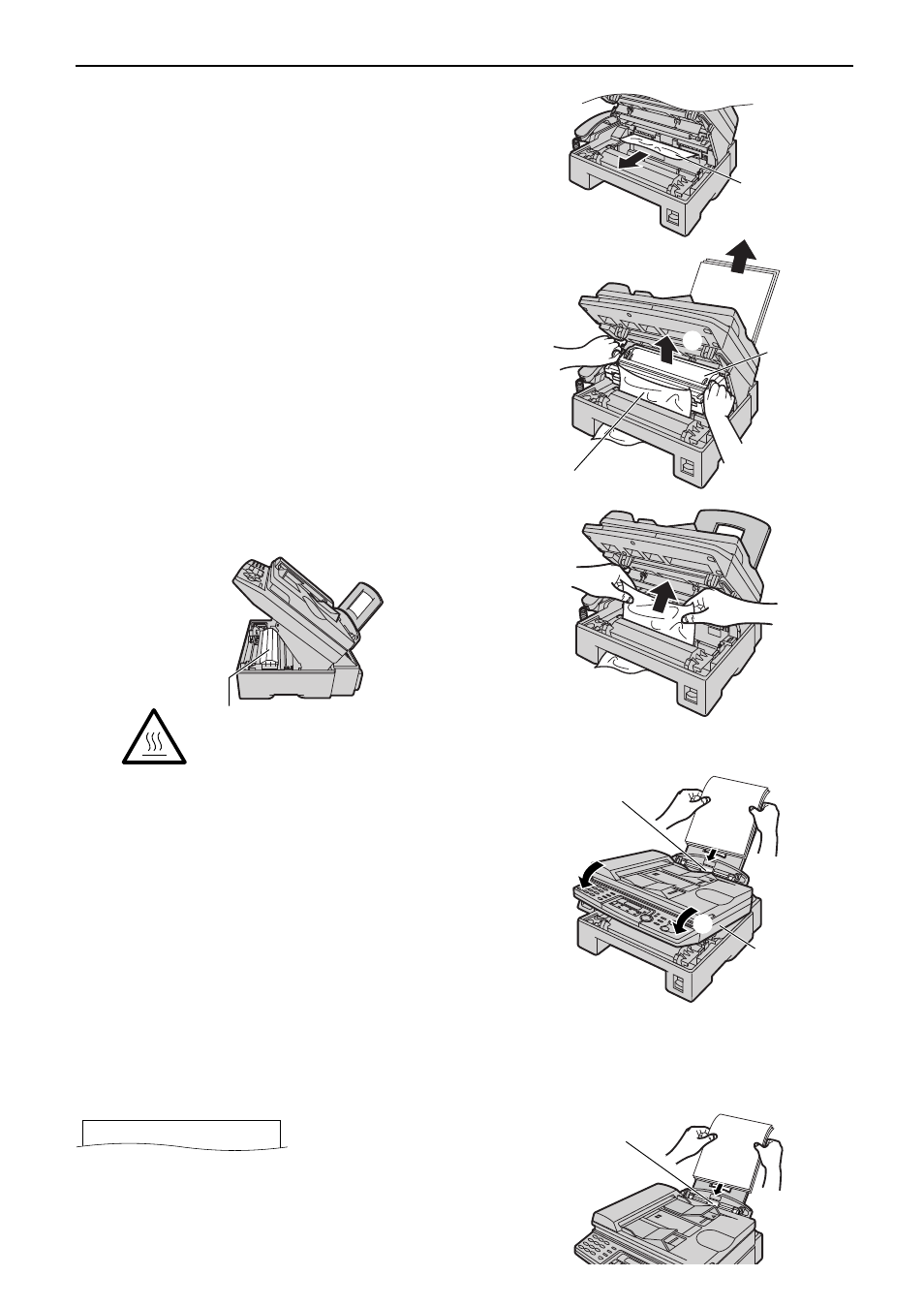

The display will show the following.
Remove the recording paper. Straighten and
reinsert it into the recording paper entrance.
FAILED PICK UP
Recording paper
entrance
When the recording paper is not fed into the unit
properly
2 When the recording paper has jammed
near the drum and toner unit:
Remove the jammed paper carefully by
pulling it toward you.
Jammed paper
When the recording paper has jammed
near the recording paper exit (Fuser unit):
Remove the recording paper (
# ), then
remove the drum and toner unit to allow the
jammed paper to pull free from the rear
cabinet (
$ ).
Remove the jammed paper from fuser unit
by pulling it upwards carefully.
Drum and
toner unit
#
$
Jammed paper
Caution:
Do not touch the bottom of this
cover. It is very hot.
3 Close the printer cover by pushing
down on both sides until locked (
# ).
Straighten and reinsert the recording
paper into the recording paper entrance
(
$ ).
Printer
cover
#
Recording paper
entrance
$
