Setup

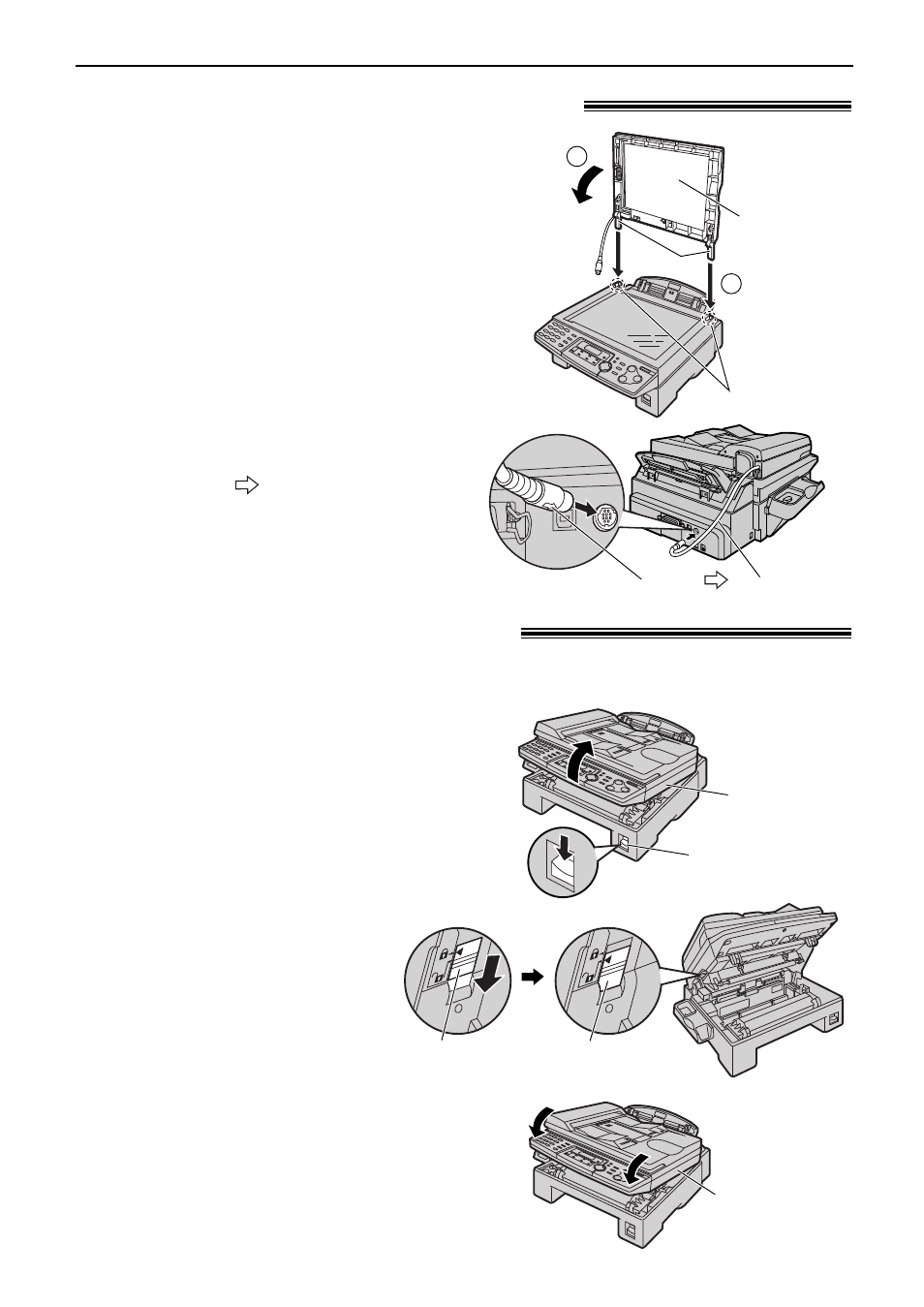

1 Gently insert the two tabs on the document
cover into the slots on the unit (
# ), then
close the document cover ( $ ).
Slots
Document
cover
1
2
Tabs
2 Connect the ADF cable to the jack on the
back of the unit.
● The arrow ( ) on the ADF cable must
be facing down.
ADF cable Arrow ( )
Connecting the document cover !
1 Press down the printer cover open
button then open the printer cover.
Printer cover
Printer cover
open button
2 Slide down the shipping lock.
● The label for unlocking the
shipping lock is attached
to the unit. Remove and
read it.
3 Close the printer cover by pushing down
on both sides until locked.
Printer cover
Unlocking the shipping lock !
Shipping
lock Unlocked
position
Caution:
● Whenever transporting the unit, be sure to
slide up the shipping lock to lock it.
The shipping lock is used to avoid damaging the scanner when it is being transported.
Before using the unit, unlock the shipping lock.
