Jazzy 1143 8
I I I . T H E J A Z Z Y 1 1 4 3

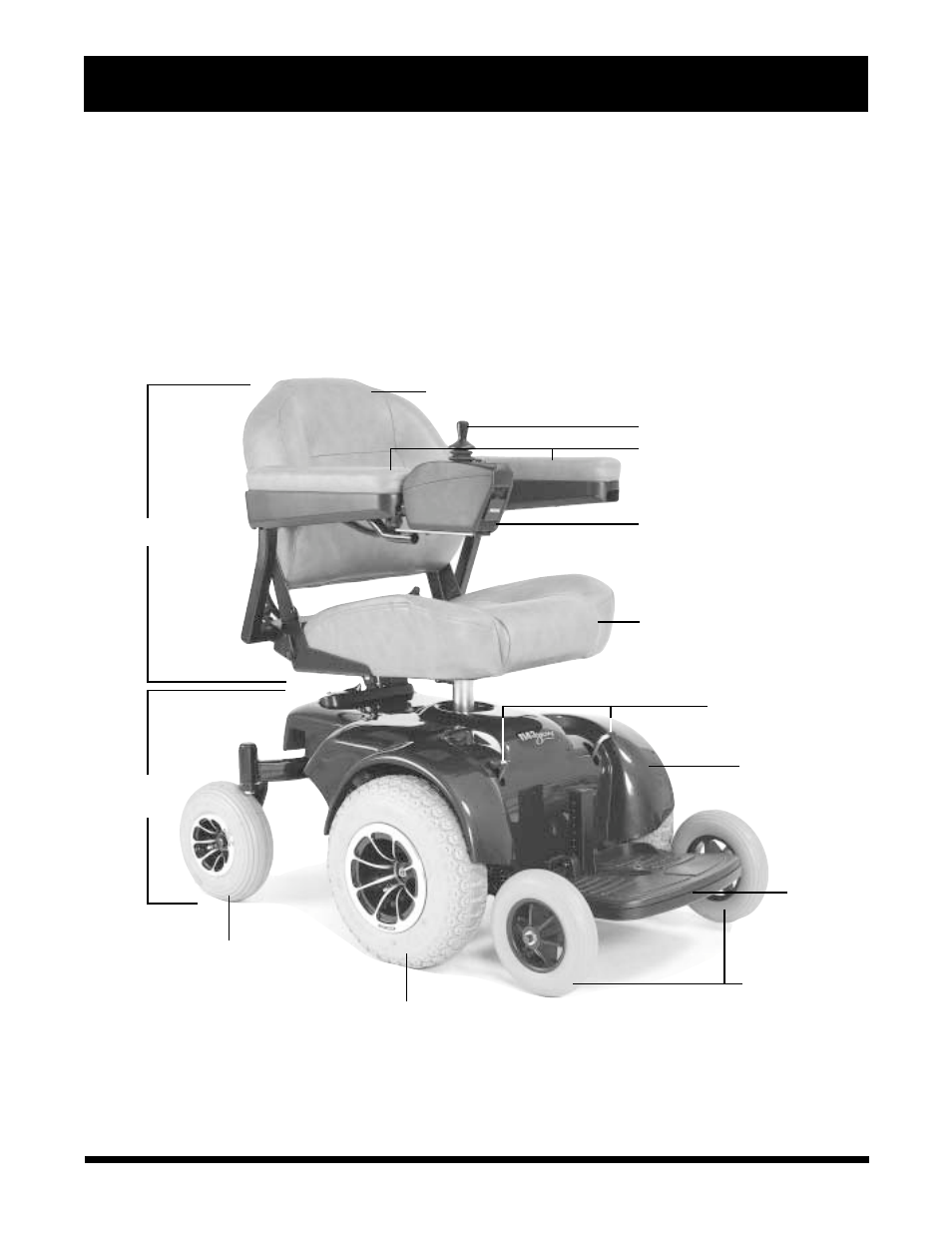

Figure 1. The Jazzy 1143
SEATBACK
CONTROLLER
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
FOOTREST
REAR CASTER WHEEL
DRIVE WHEEL
FREEWHEEL LEVERS
SEAT ASSEMBLY
POWER BASE
ASSEMBLY
SEAT BASE
JOYSTICK
Your Jazzy has two main assemblies: the seat and the power base. See figure 1. There are a variety of seating
options that are designed to accommodate most users. Typically, the seating system includes armrests, seatback,
seat base, and joystick/controller. Your Jazzy seat may also have some optional accessories attached to it such as
a basket, cane/crutch holder, a cup holder, or a power seat switch.
The power base is the heart of the Jazzy. The power base assembly includes two motor/brake assemblies, two
anti-tip wheels, two drive wheels, a caster assembly with two rear caster wheels, two batteries, power seat, and a
connector housing. See figures 1 and 2.
